Product Description:

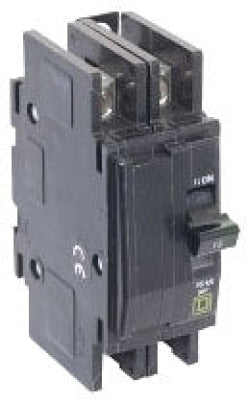

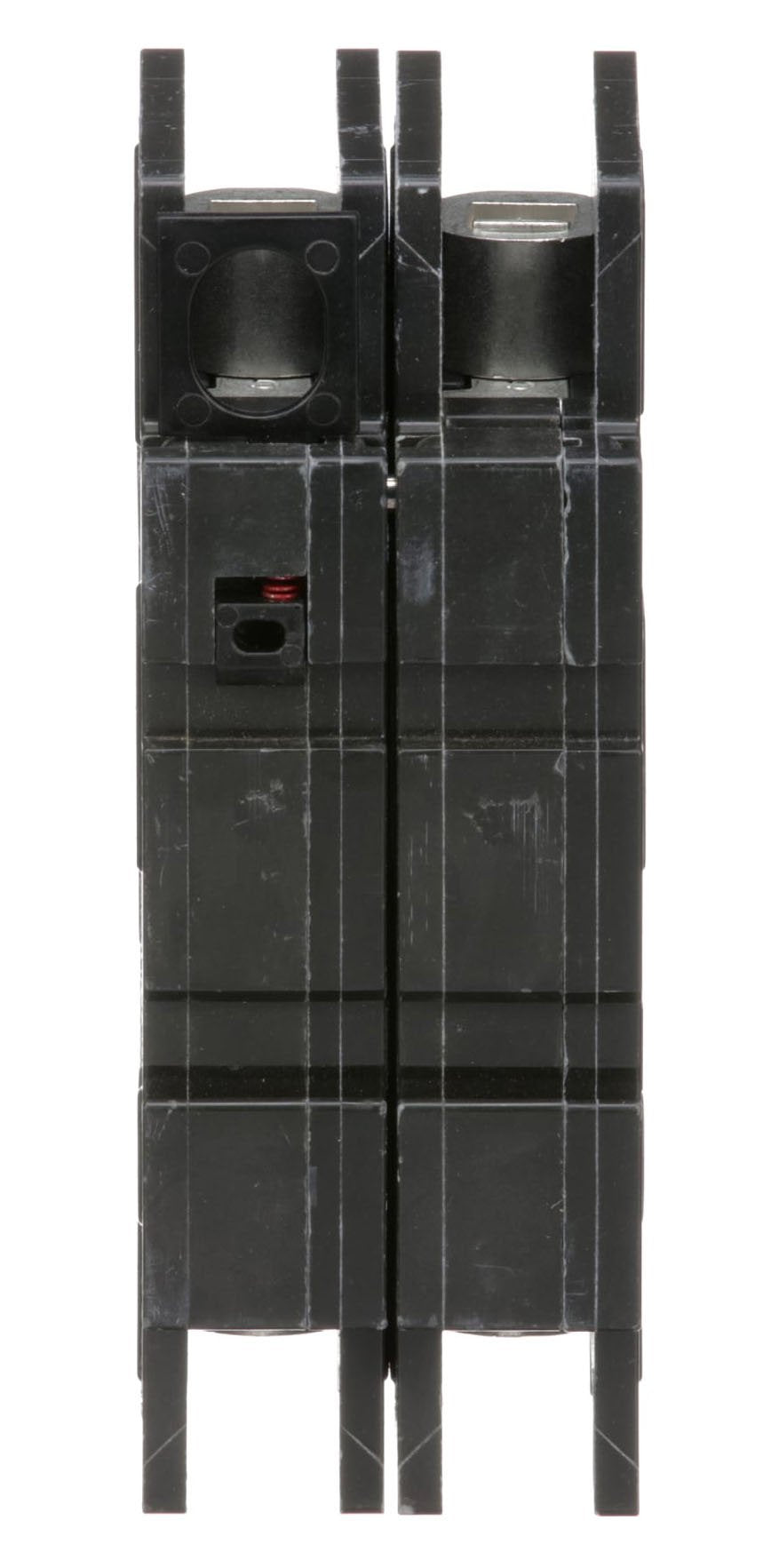

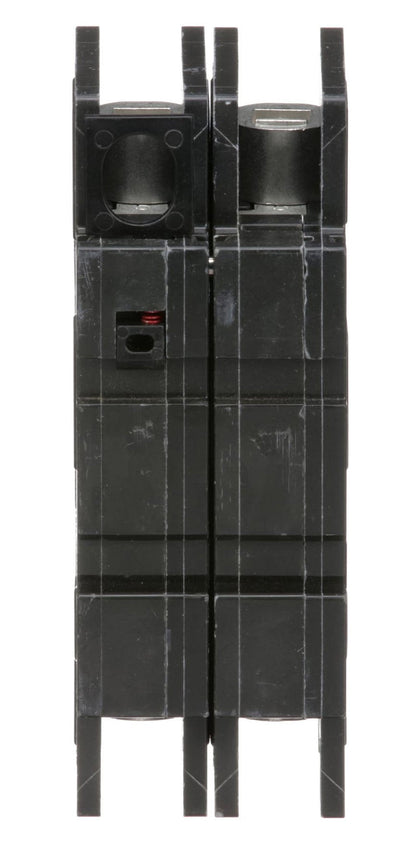

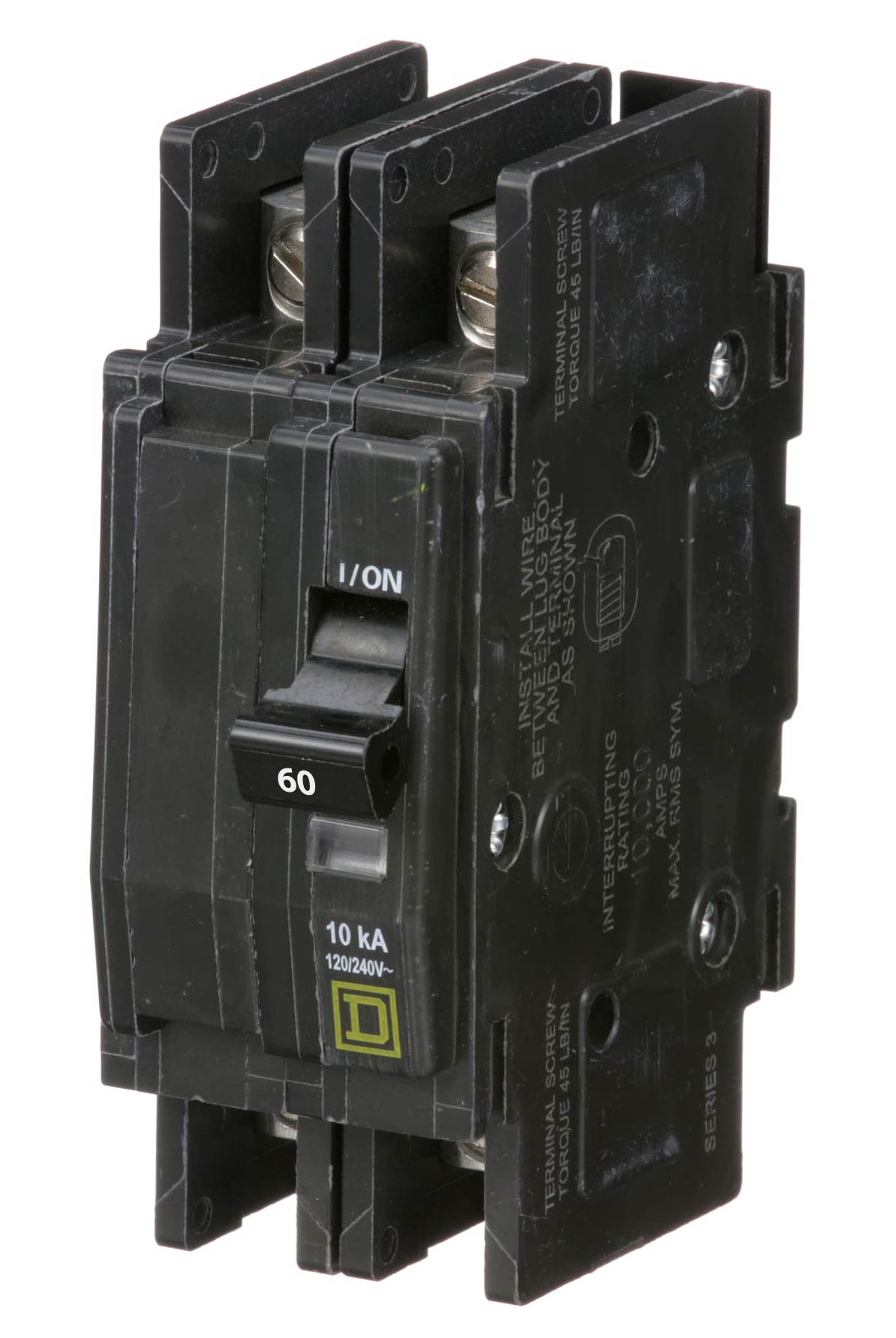

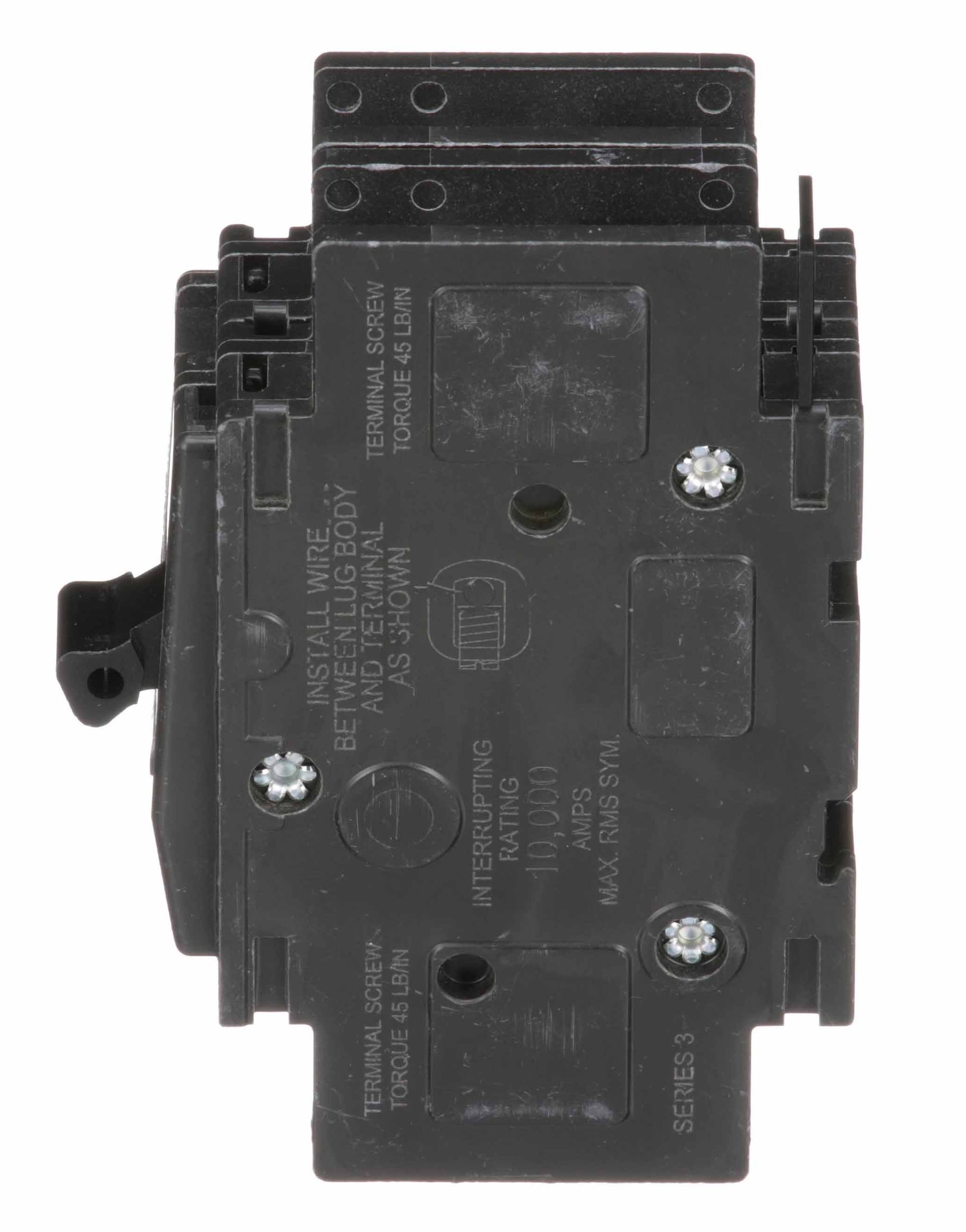

The Rheem QOU260 is a Molded Case Circuit Breaker from the QOU Series. It operates at 120/240 VAC with a 60 amp rating and 10kA@240V AIC rating. This 2-pole breaker features Thermal Magnetic protection and a Unit Mount connection. It is designed for air conditioning, refrigeration, and heating equipment.
Key Features:
✔ Part Number: QOU260
✔ Manufacturer: Encompass Supply Chain Solutions Inc
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901418801
✔ GTIN: 00785901418801
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Weight: 1 lb
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
