Product Description:

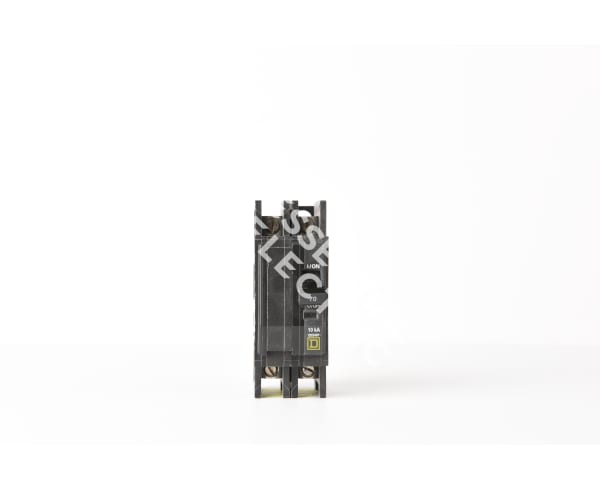

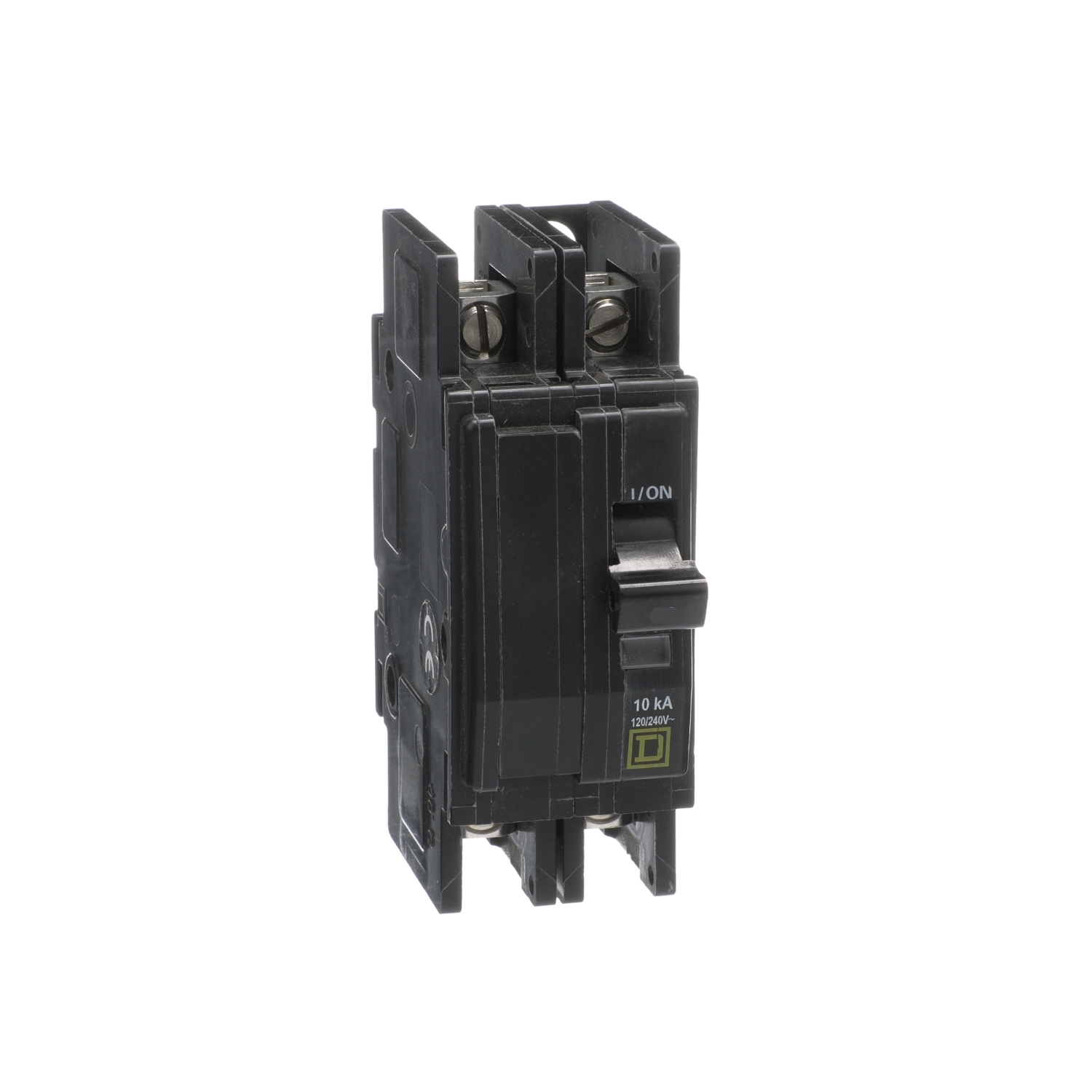

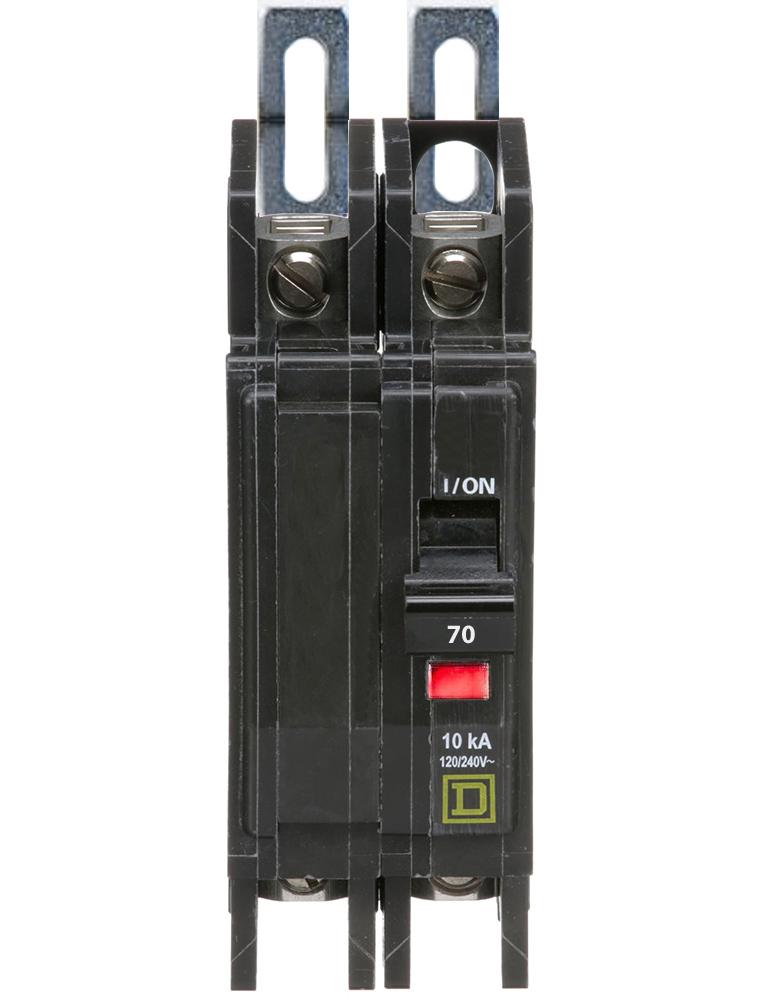

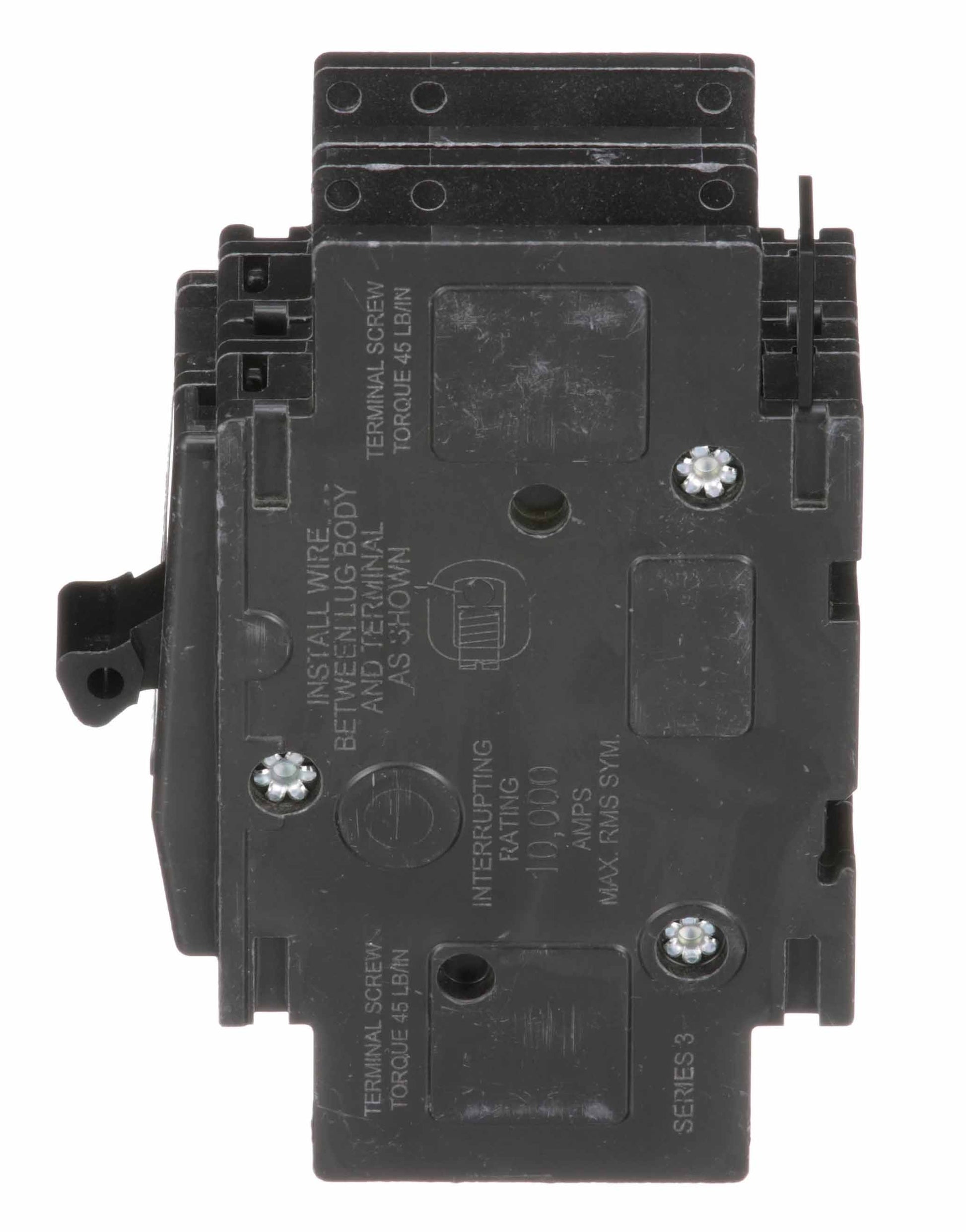

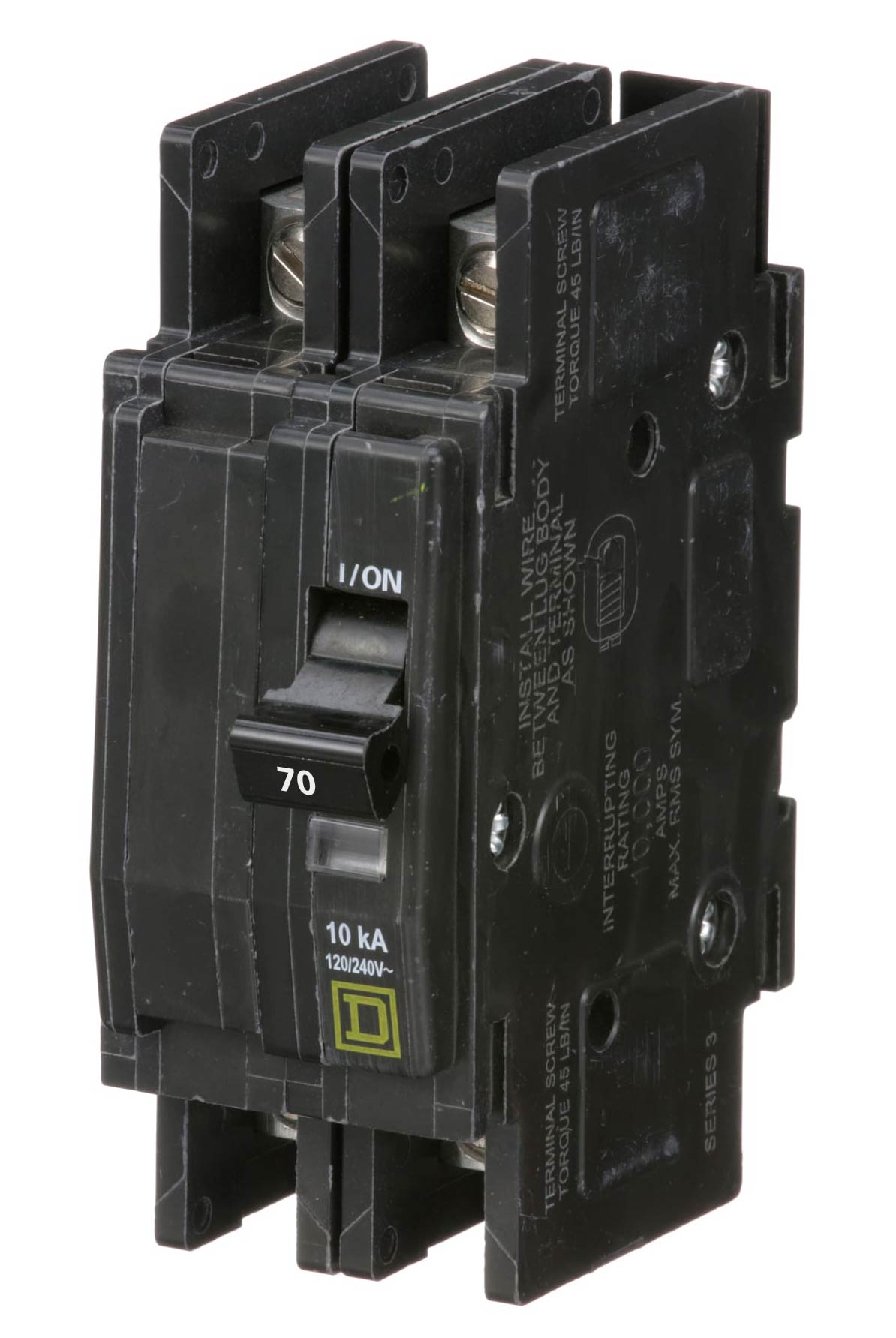

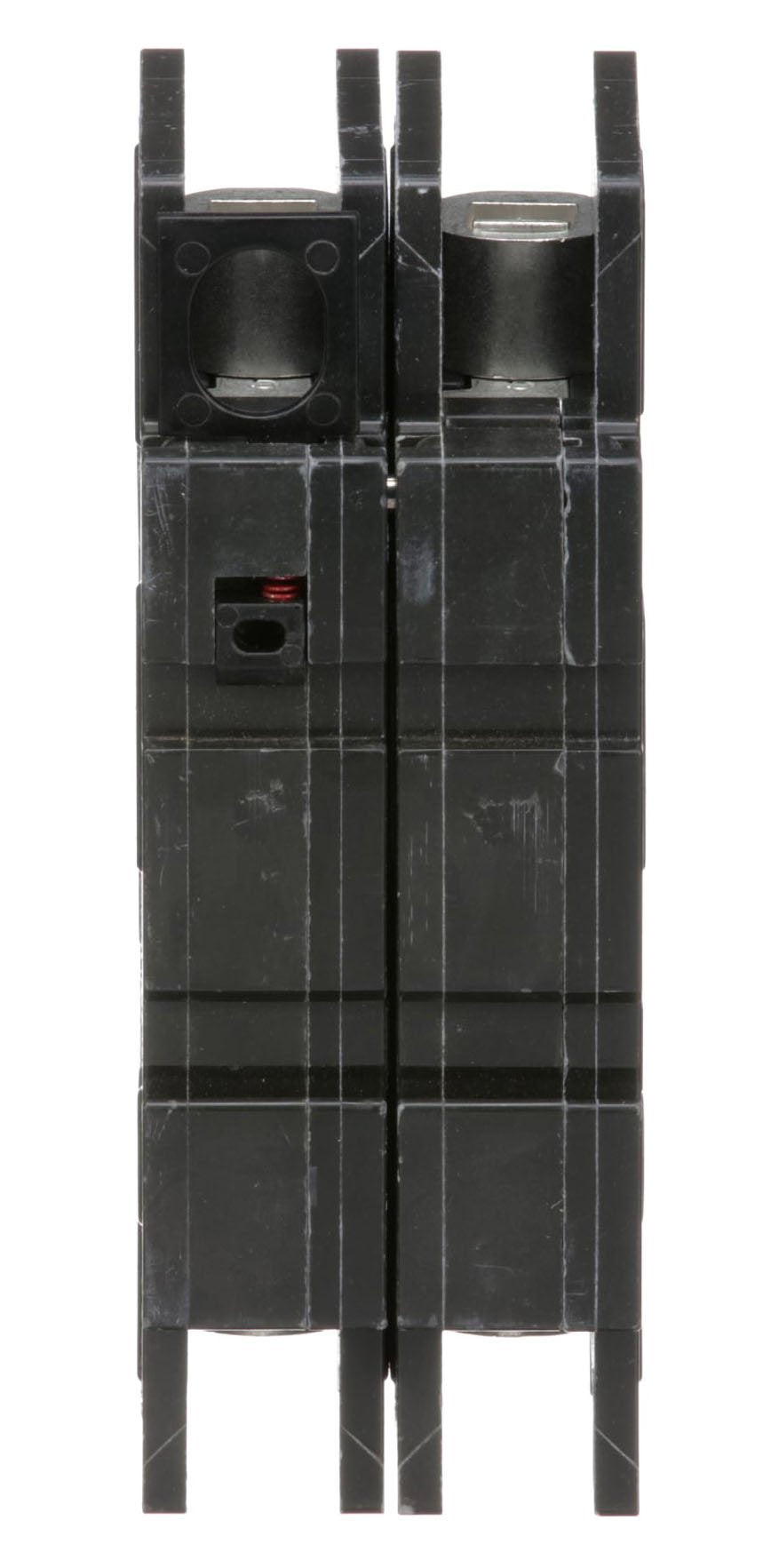

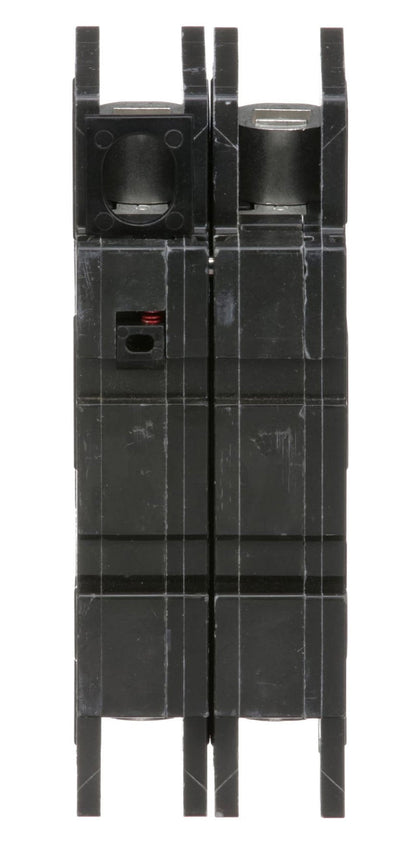

The Square D QOU270 is a Molded Case Circuit Breaker from the QOU Series. It features a 2-pole design with 120/240 VAC voltage and a 70 amp rating. This breaker offers Thermal Magnetic protection and has an AIC rating of 10kA@240V. It is designed for unit mount connections and complies with CSA, IEC, and UL standards.
Key Features:
✔ Part Number: QOU270
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901418832
✔ GTIN: 00785901418832
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.45 in x 4.45 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 12...AWG 2/0 aluminum/copper
