Product Description:

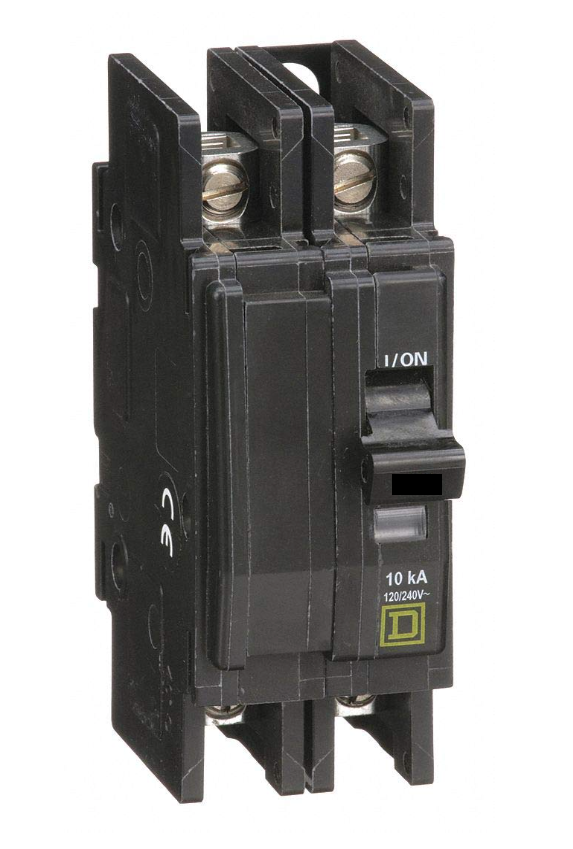

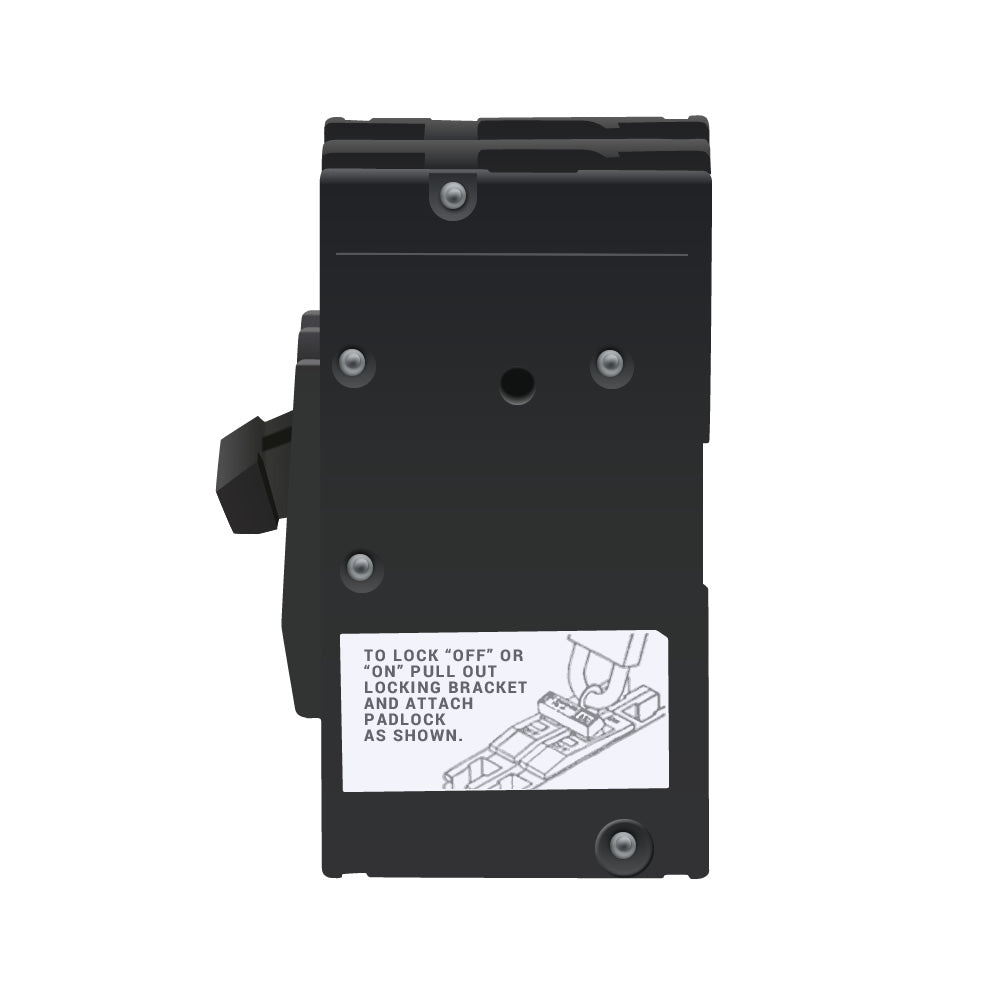

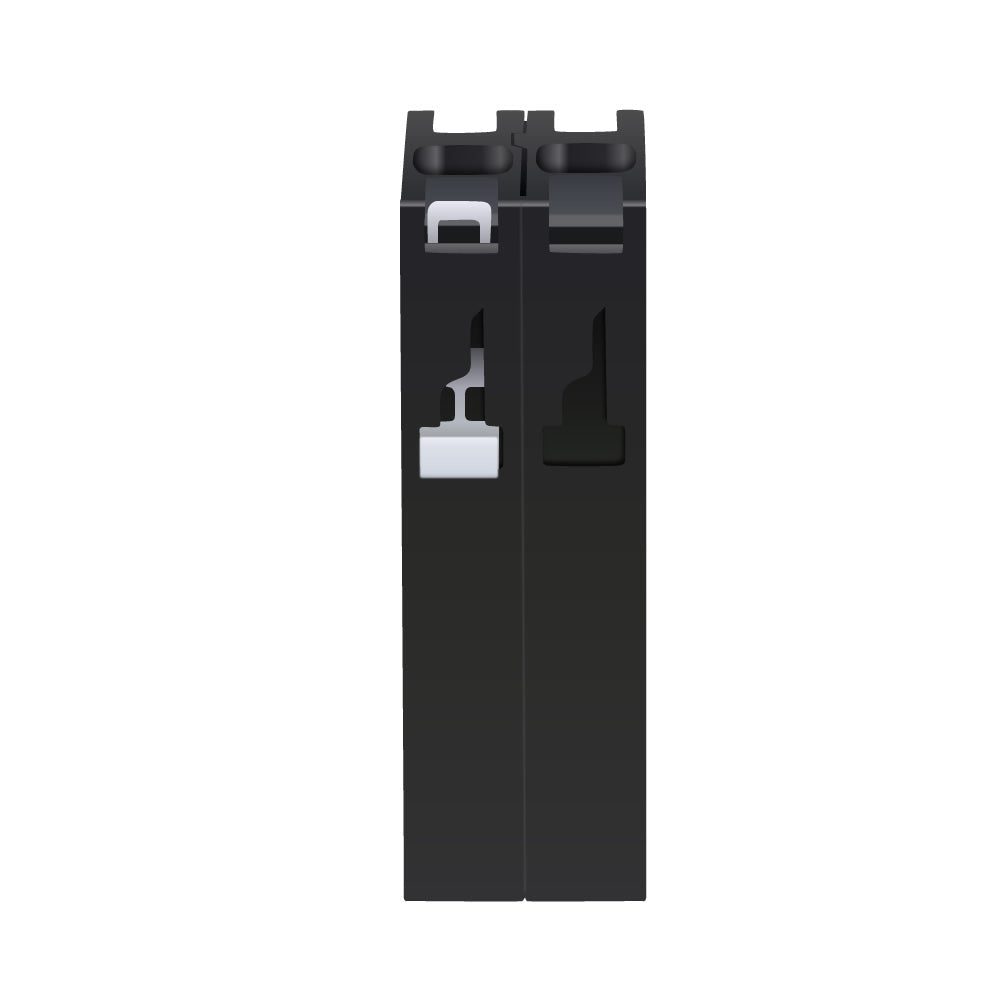

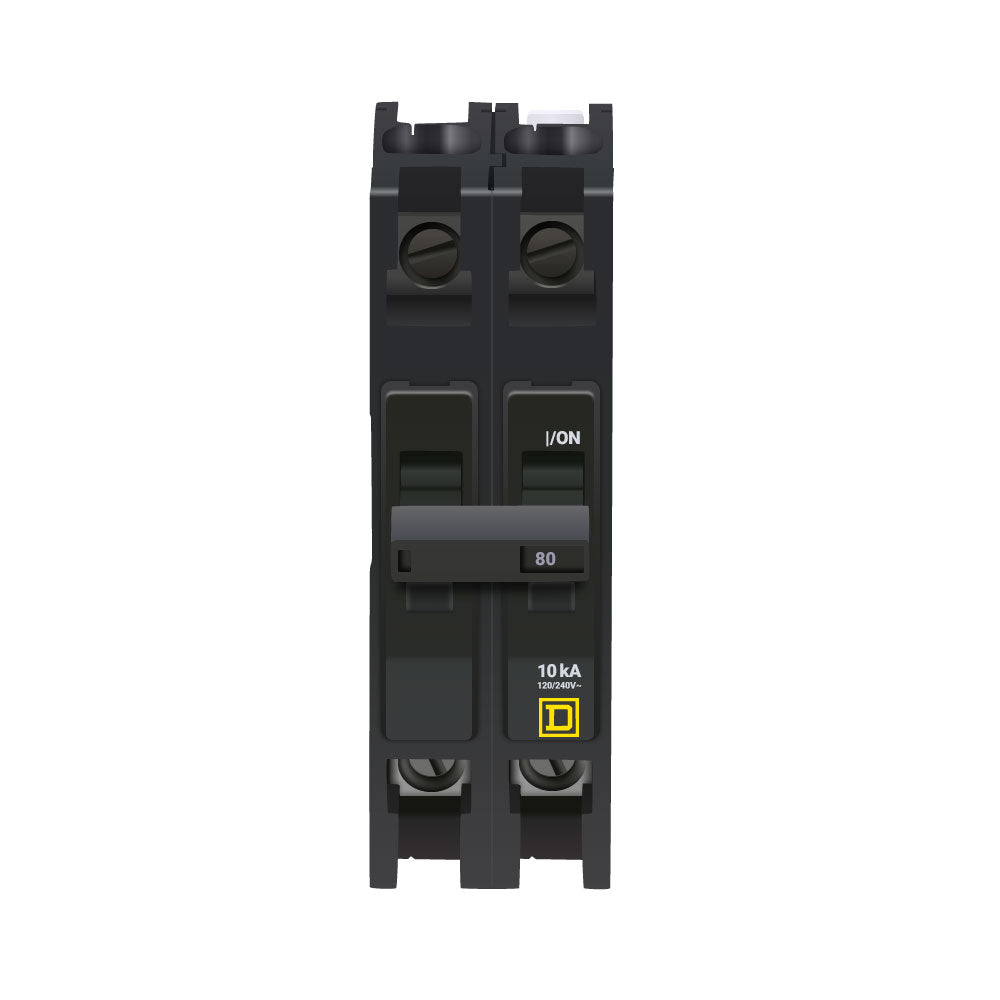

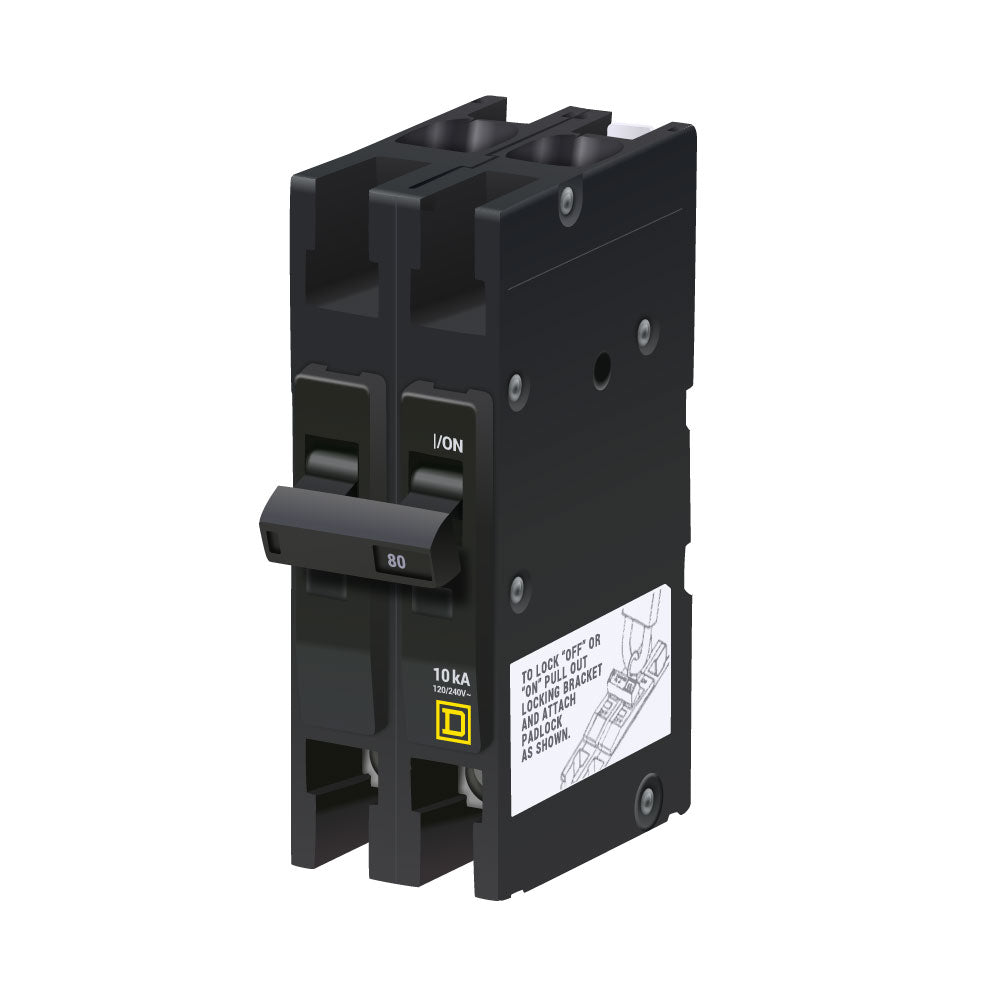

The Square D QOU280 is a Molded Case Circuit Breaker from the QOU Series. It is a 2-pole, 80A breaker rated for 120/240VAC with a 10kA@240V AIC rating. This Bolt-On connection breaker features Thermal Magnetic protection and is suitable for air conditioning, refrigeration, and heating equipment. It supports wire sizes from 12 AWG to 2/0 AWG for aluminum or copper.
Key Features:
✔ Part Number: QOU280
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Non-Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 12 AWG, Max. Wire Size 2/0 AWG
✔ Breaker Type: Standard
✔ Wire Size
