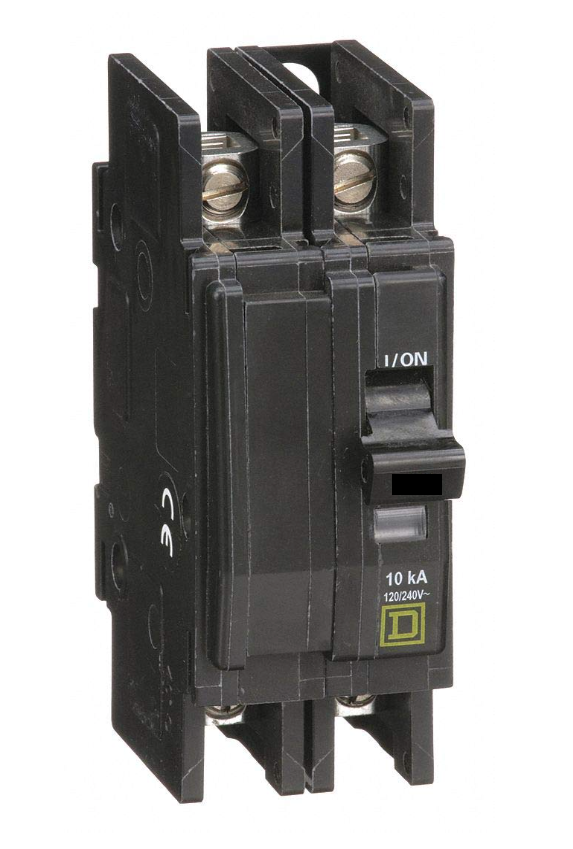

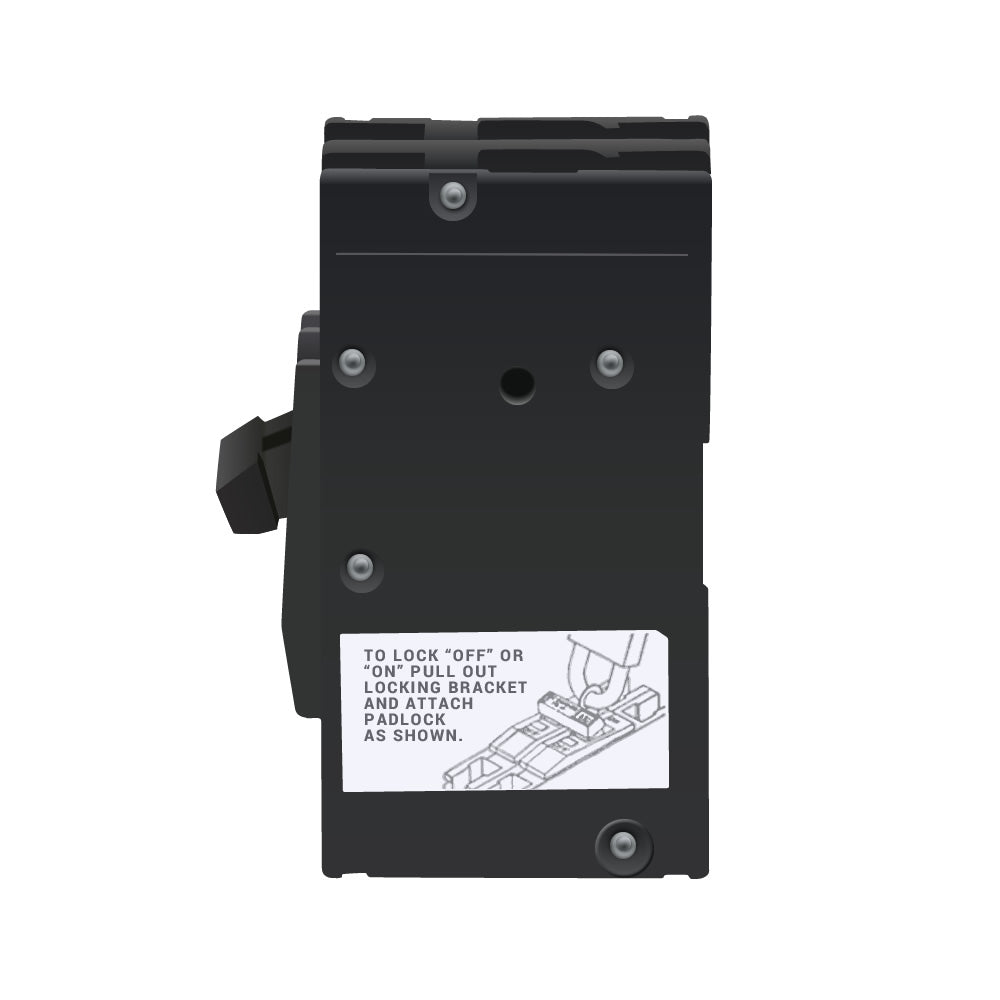

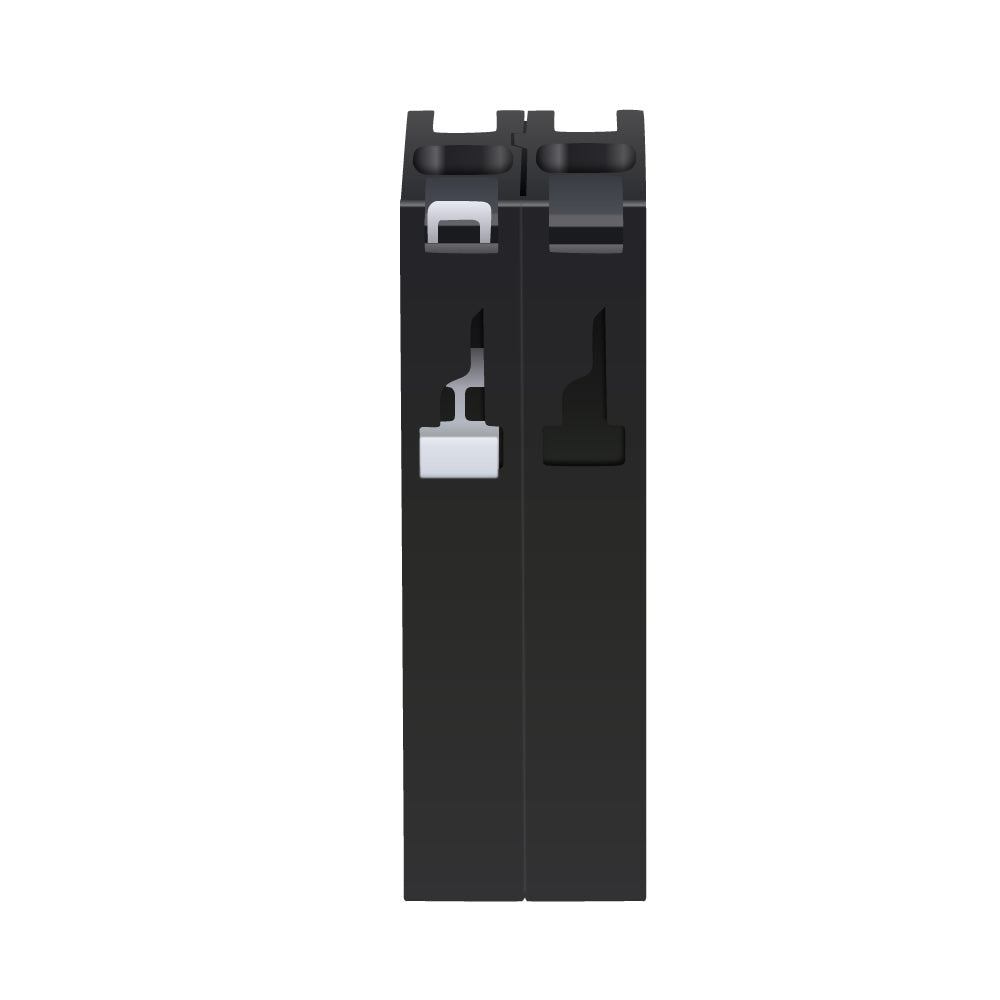

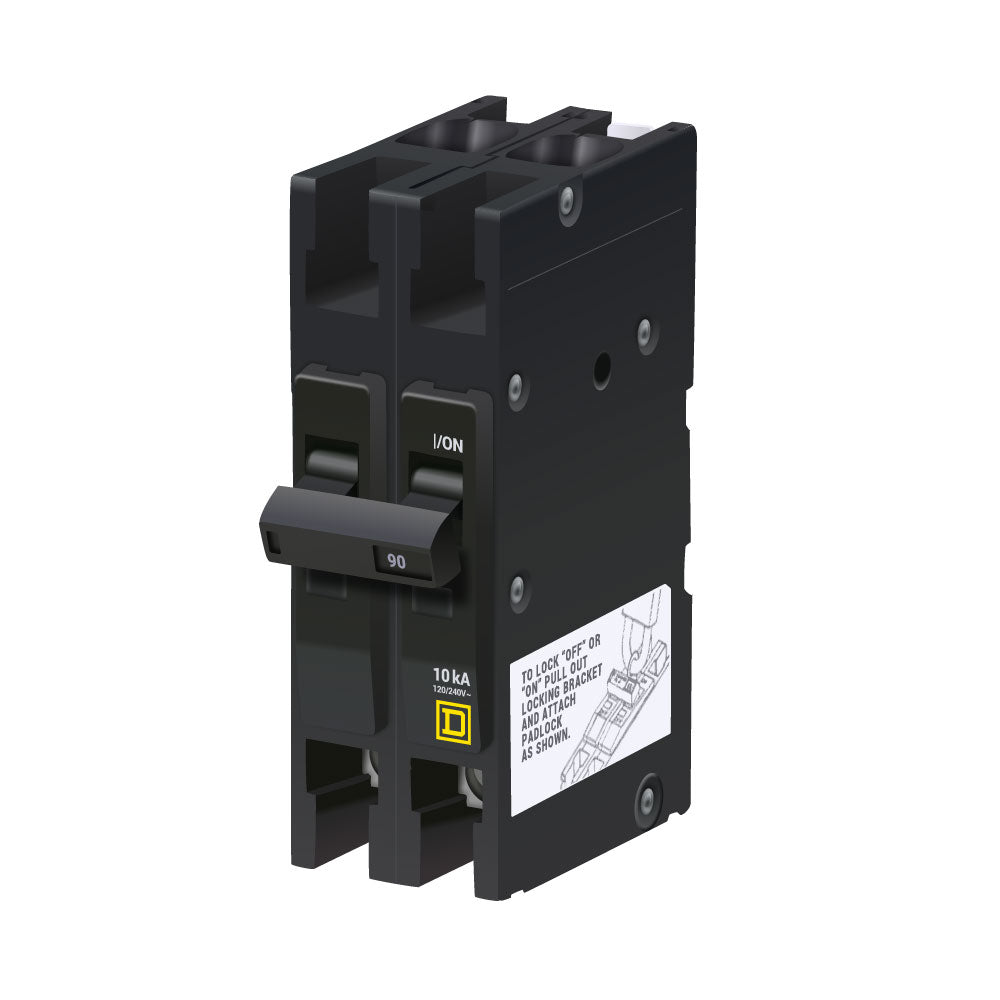

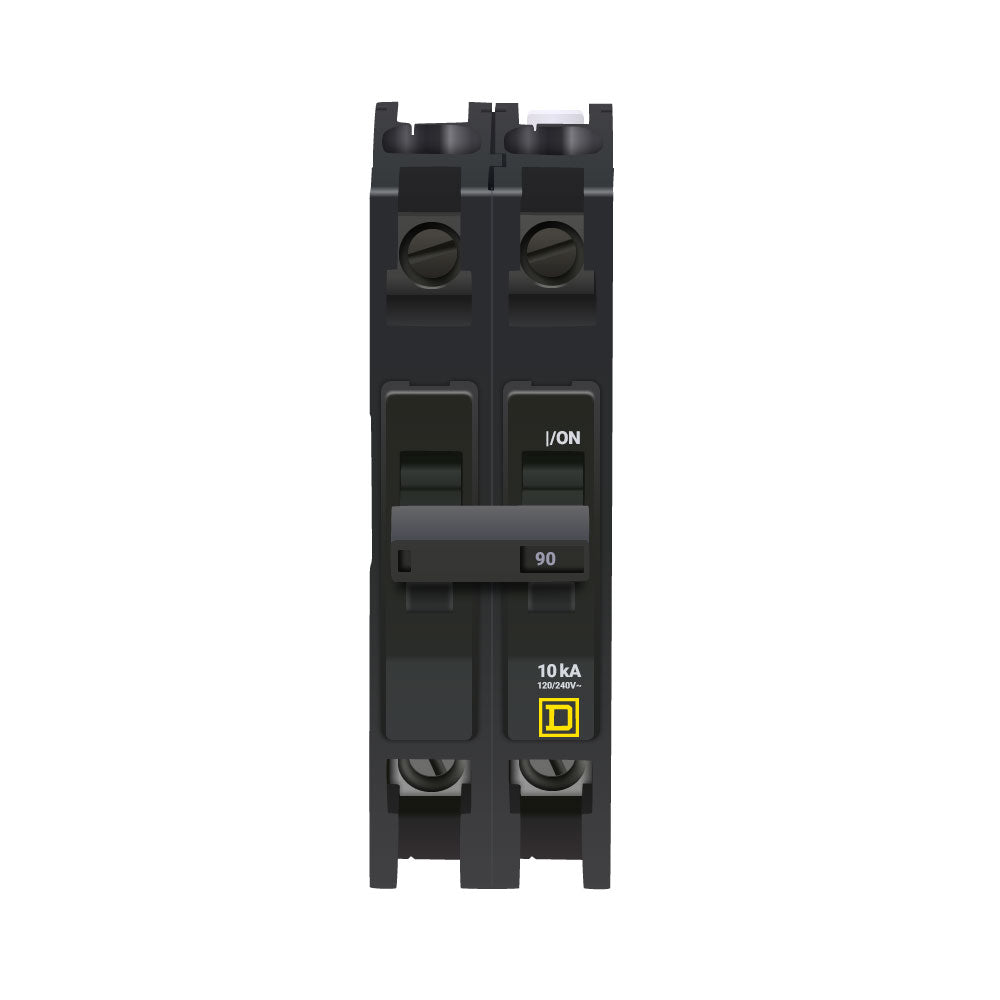

Square D QOU290 Circuit Breaker | 240V 90A 2P 10kA@240V Unit Mount QOU Series

Product Description:
The Square D QOU290 is a Molded Case Circuit Breaker from the QOU Series. It is a 2-pole, 90 amp breaker rated for 240 volts with a 10kA interrupting capacity. This unit features thermal magnetic protection and a unit mount connection for reliable electrical circuit management.

Key Features:
✔ Part Number: QOU290
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 240
✔ Amperage: 90
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Non-Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 12 AWG Max. Wire Size 2/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901060277
✔ GTIN: 00785901060277
✔ Country of Origin: Mexico
✔ Dimensions: 1.5 in x 4.45 in
✔ Weight: 1
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Standards: CSA, IEC, UL listed
✔ Certification: IEC, UL listed
✔ Wire Size: AWG 12...AWG 2/0 aluminum/copper
