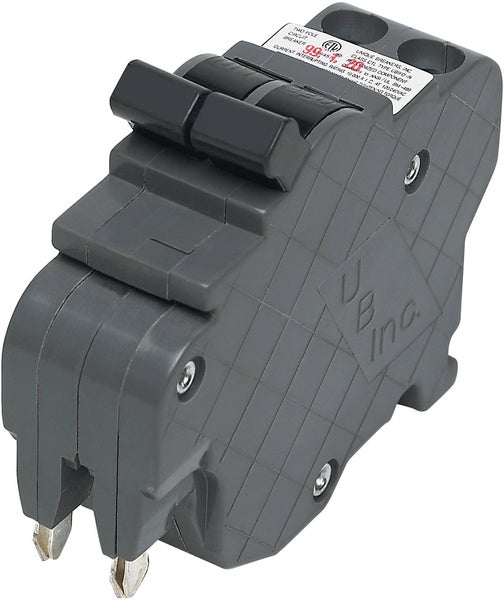

Connecticut Electric UBIF0240N Circuit Breaker 2P 40A 240V 10kA@240V Plug-In Thin Series

Product Description:
This Molded Case Circuit Breaker is part of the Thin Series family and designed for reliable electrical protection. It is a 2-pole, 40 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. The plug-in connection ensures easy installation, while thermal magnetic protection safeguards against overloads and short circuits.

Key Features:
✔ Part Number: UBIF0240N
✔ Manufacturer: Connecticut Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thin Series
✔ Type: UBIFN
✔ Voltage: 120/240
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 70A/HACR
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925019353
✔ GTIN: 00094925019353
✔ Country of Origin: China
✔ Dimensions: 1 in x 3.36 in x 3.36 in
✔ Weight: 1
✔ Panel Type: Federal Pacific Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
