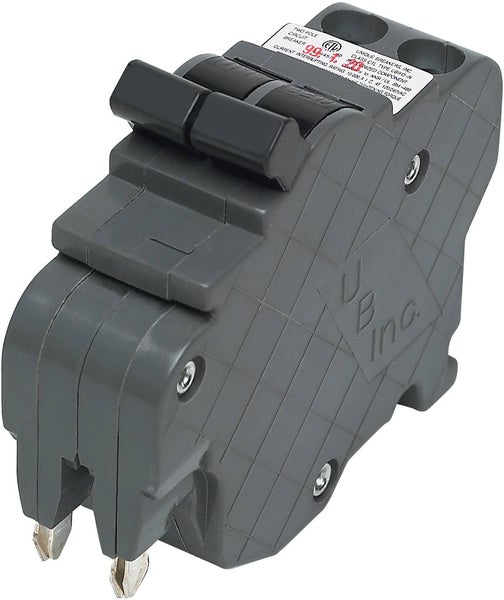

Federal Pacific UBIF0250N Circuit Breaker | 120/240V 50A 2P 10kA@240V Plug-In Thin Series

Product Description:
The Federal Pacific UBIF0250N is a Molded Case Circuit Breaker from the Thin Series family. It is a 2-pole, 50 amp breaker rated for 120/240 volts with a 10kA AIC rating at 240V. This plug-in model provides thermal magnetic protection and is compatible with Federal Pacific load centers. It is ETL and UL listed for safety and reliability.

Key Features:
✔ Part Number: UBIF0250N
✔ Manufacturer: American, Federal Pacific
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thin Series
✔ Type: UBIFN
✔ Voltage: 120/240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 60A/SWD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925019360
✔ GTIN: 00094925019360
✔ Country of Origin: China
✔ Dimensions: 1 in x 3.36 in x 3.36 in
✔ Weight: 1 lb
✔ Panel Type: Federal Pacific Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
