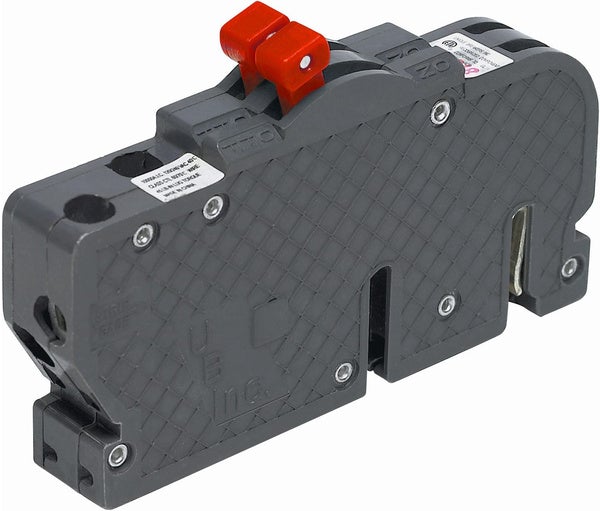

Zinsco UBIZ0220 Circuit Breaker | 240V 20A 2P Plug-In 10kA@240V Thin Series

Product Description:
The UBIZ0220 is a Molded Case Circuit Breaker from the Thin Series family, designed for electrical panel protection. It is a 2-pole, 20 amp breaker rated for 120/240 volts with a 10kA interrupting capacity at 240V. This plug-in circuit breaker features thermal magnetic protection and is compatible with Zinsco load centers. It is ETL and UL listed for safety and reliability.

Key Features:
✔ Part Number: UBIZ0220
✔ Manufacturer: Zinsco
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thin Series
✔ Type: UBIZ
✔ Voltage: 120/240
✔ Amperage: 20
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/HACR
✔ Wire Size: Min. 14 AWG Max. 8 AWG
✔ Panel Type: Zinsco Load Centers
✔ Certification: ETL Listed, UL Listed
✔ UPC: 094925030334
✔ GTIN: 00094925030334
✔ Country of Origin: China
✔ Dimensions: 0.75 in x 5.63 in x 5.63 in
✔ Weight: 2
