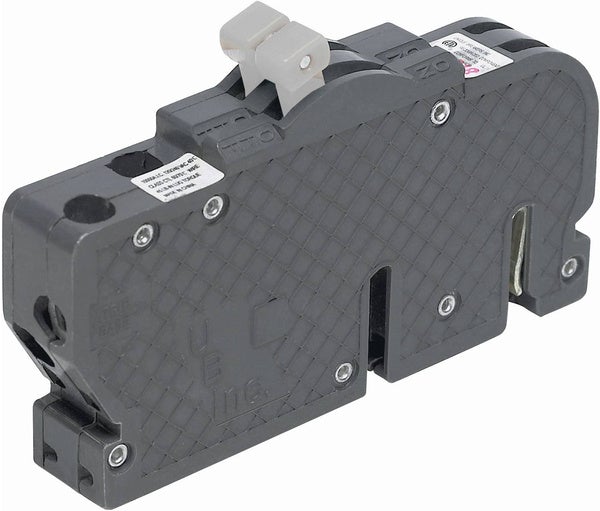

Square D UBIZ0240 Circuit Breaker | 120/240V 40A 2P Plug-In 10kA@240V Thin Series

Product Description:
The Zinsco UBIZ0240 is a Molded Case Circuit Breaker from the Thin Series family. It is a 2-pole, 40 amp breaker rated for 120/240 volts with an AIC rating of 10kA@240V. This plug-in breaker provides thermal magnetic protection and is designed for use in Zinsco load centers. It is ETL and UL listed for safety and compliance.

Key Features:
✔ Part Number: UBIZ0240
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Thin Series
✔ Type: UBIZ
✔ Voltage: 120/240
✔ Amperage: 40
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HACR
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 8 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 094925030358
✔ GTIN: 00094925030358
✔ Country of Origin: China
✔ Dimensions: 0.75 in x 5.63 in x 5.63 in
✔ Weight: 2
✔ Panel Type: Zinsco Load Centers
✔ Standards: ETL Listed, UL Listed
✔ Certification: ETL Listed, UL Listed
