Product Description:

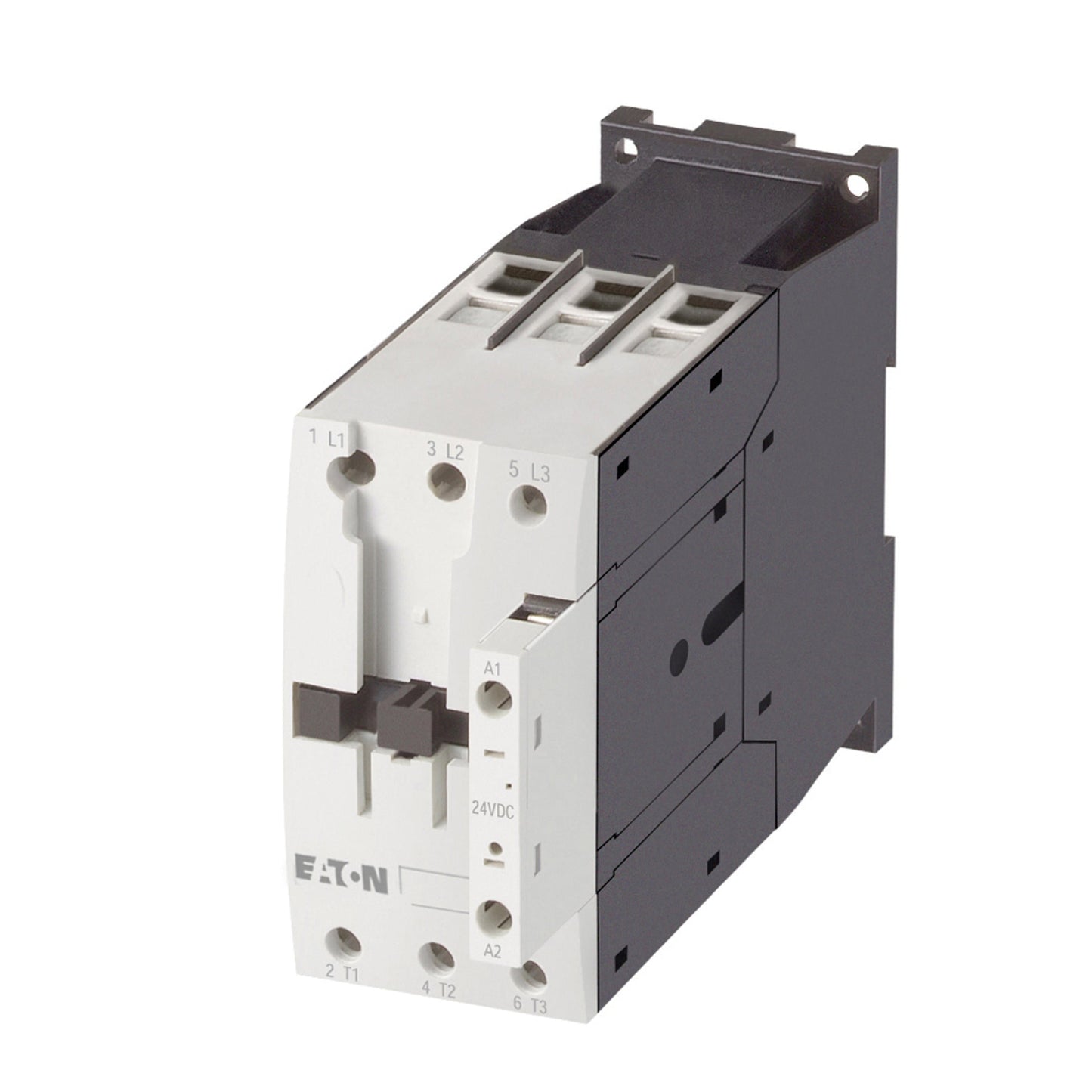

The Cutler Hammer XTCE065D00E XT Series Contactor is a 600V 3-phase 65A 3-pole starter with horsepower ratings of 20 hp at 208V, 25 hp at 240V, and 50 hp at 480V. It features a 208V coil and is designed for motor control applications. This IEC non-reversing contactor is built for durability and compliance with industry standards.
Key Features:
✔ Part Number: XTCE065D00E
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: XT Series
✔ Type: XTCE065D
✔ Voltage: 600
✔ Amperage: 65
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 20 hp HP @ 3 Phase - 240V 25 hp HP @ 3 Phase - 480V 50 hp
✔ Configuration: Non-Reversing
✔ Aux Contacts: 0 NO + 0 NC
✔ Coil Voltage Maximum: 208
✔ Full Load Amps: Full Load Amps-Inductive 65A Full Load Amps-Resistive 98A
✔ Coil Voltage Minimum: 208
✔ Frequency: 60 Hz
✔ UPC: 782116486625
✔ GTIN: 00782116486625
✔ Country of Origin: Germany
✔ Dimensions: 2.17 in x 2.17 in
✔ Weight: 1 lb
✔ Certification: CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
