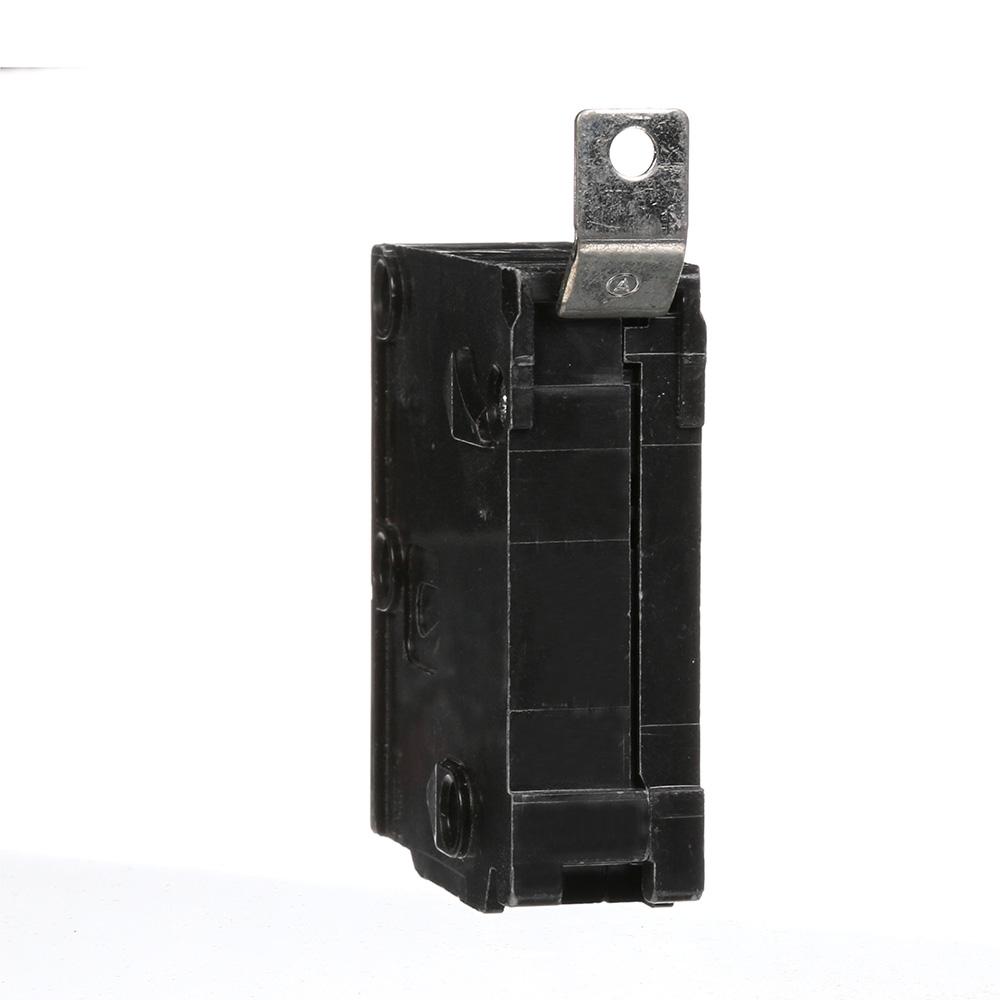

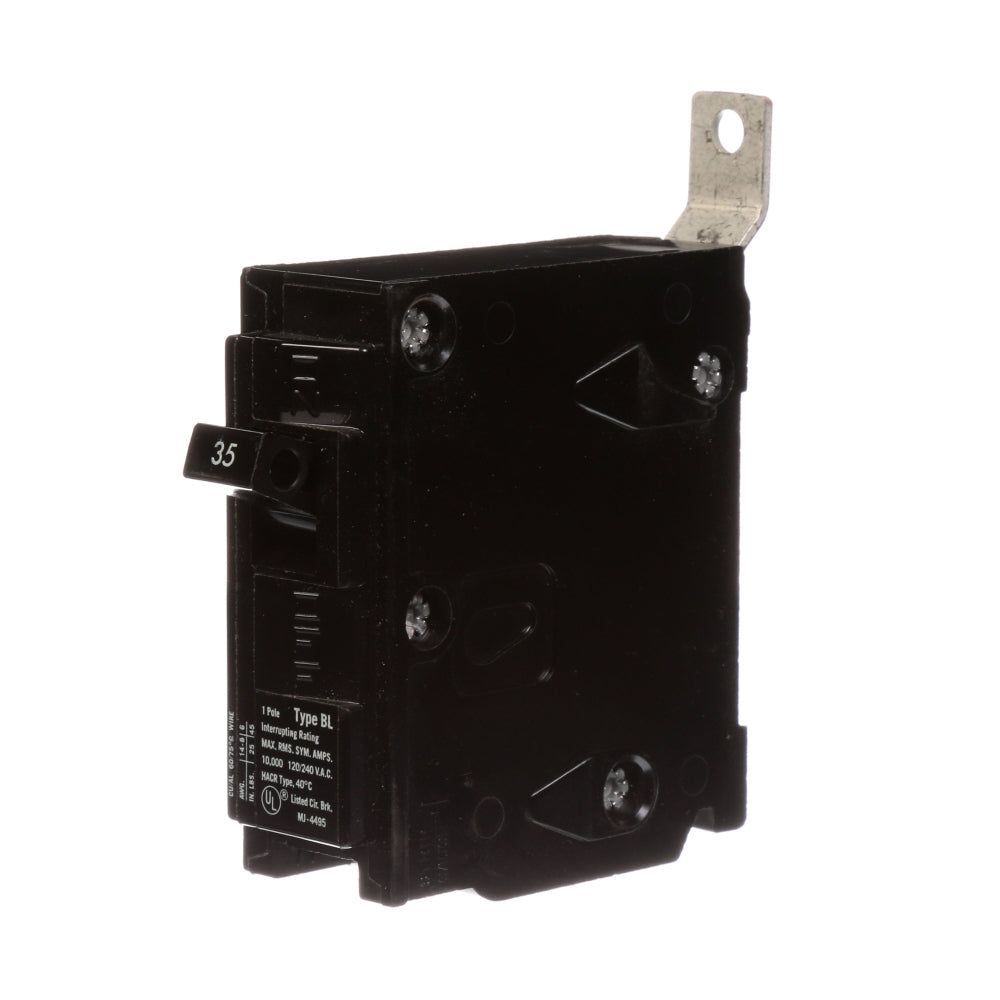

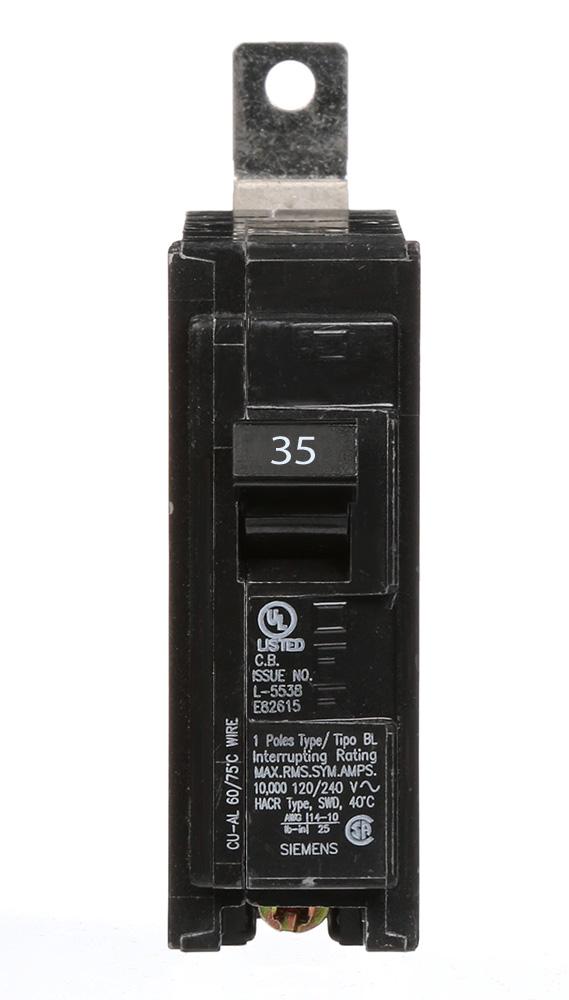

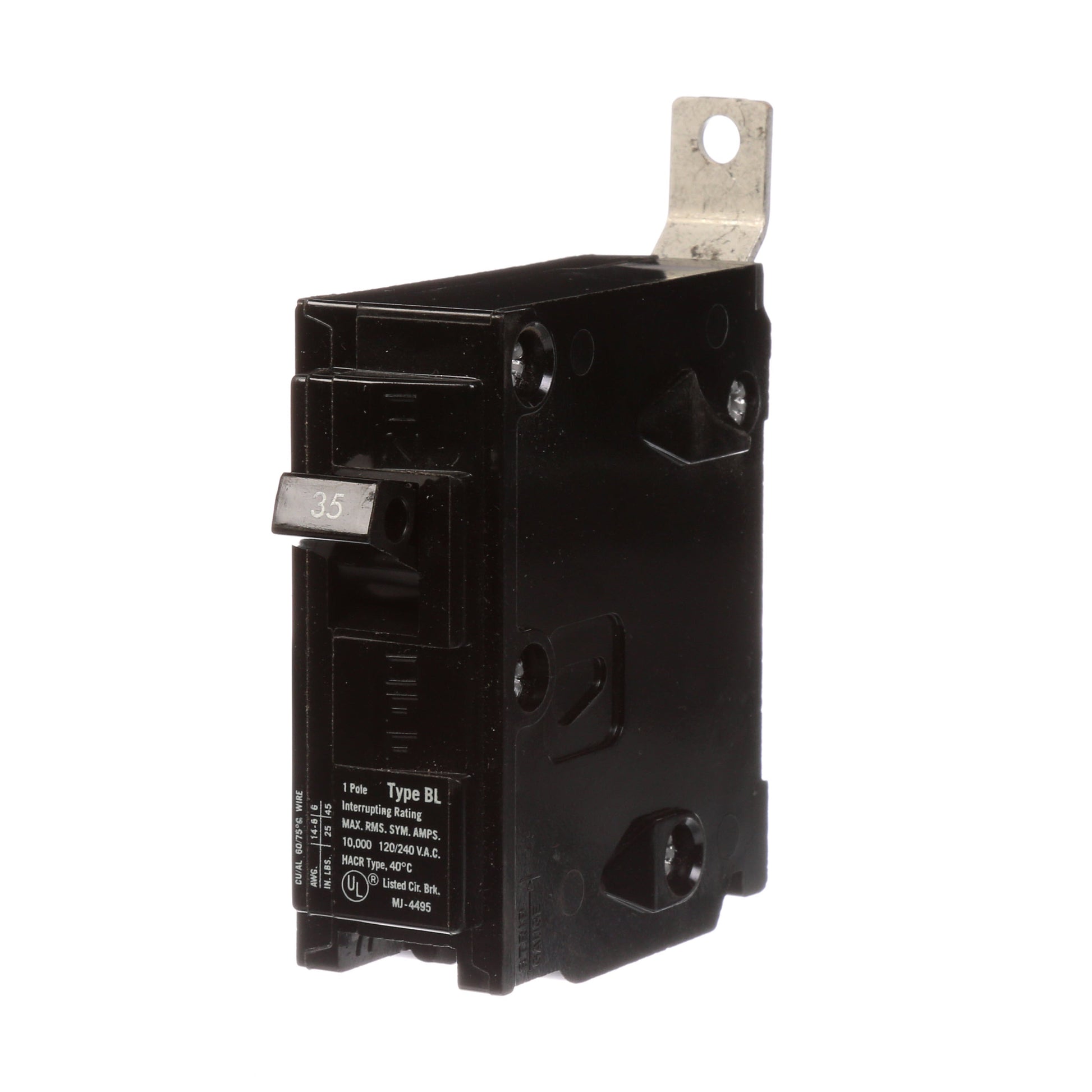

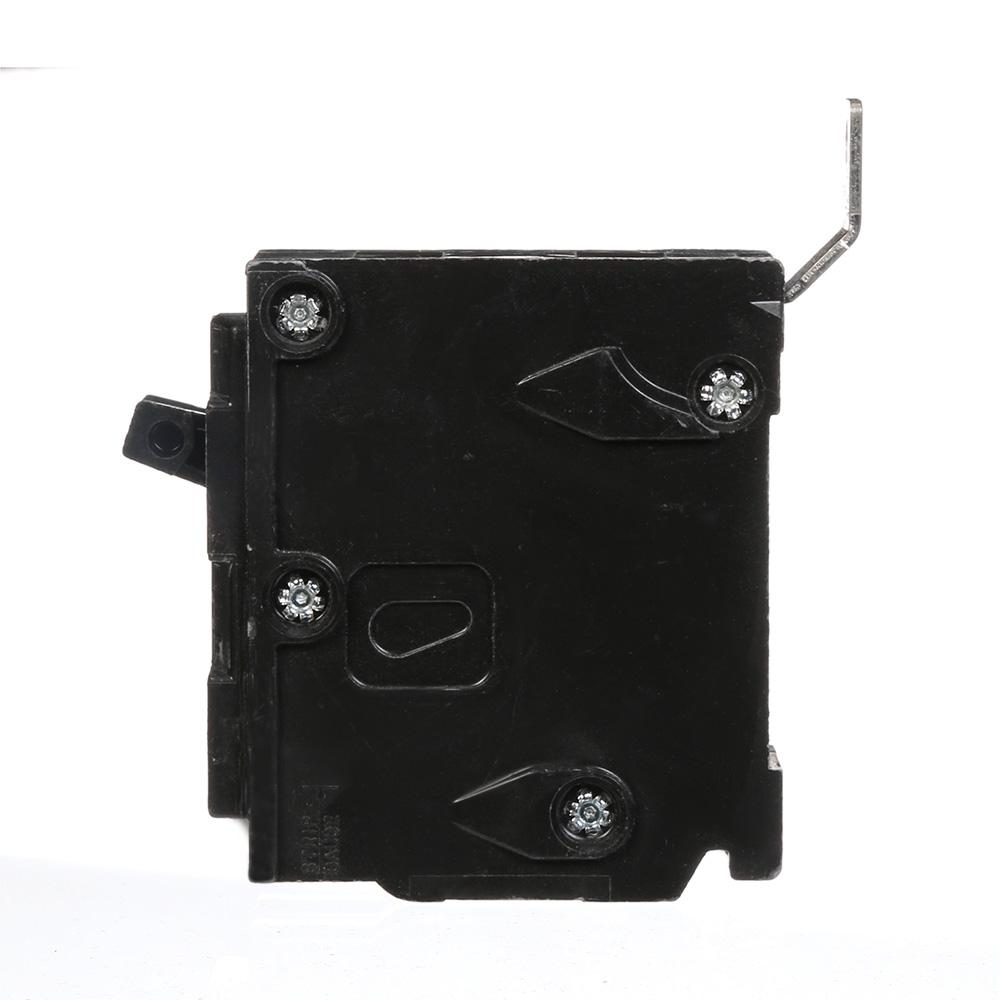

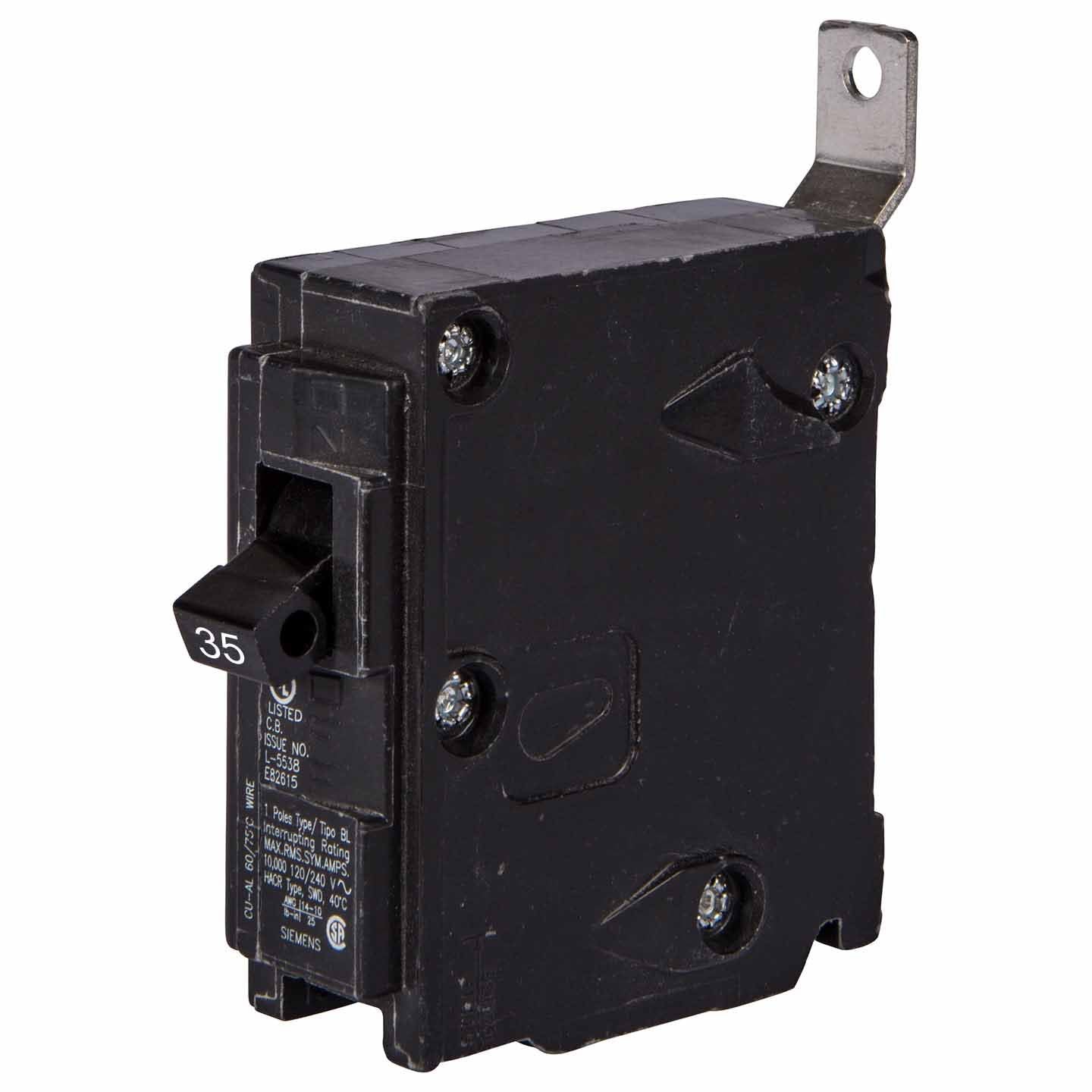

Siemens B135 Circuit Breaker | 120V 35A 1P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B135 is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 35 amp breaker rated for 120 volts with a 10kA@240V AIC rating. This model features bolt-on connections and thermal magnetic protection for reliable circuit interruption. It is designed for use in Siemens P1 panelboards and is UL Listed for safety compliance.

Key Features:
✔ Part Number: B135
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263451
✔ GTIN: 00783643263451
✔ Country of Origin: Mexico
✔ Dimensions: 3.6 in x 0.9 in x 0.9 in
✔ Weight: 0.24
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
