Product Description:

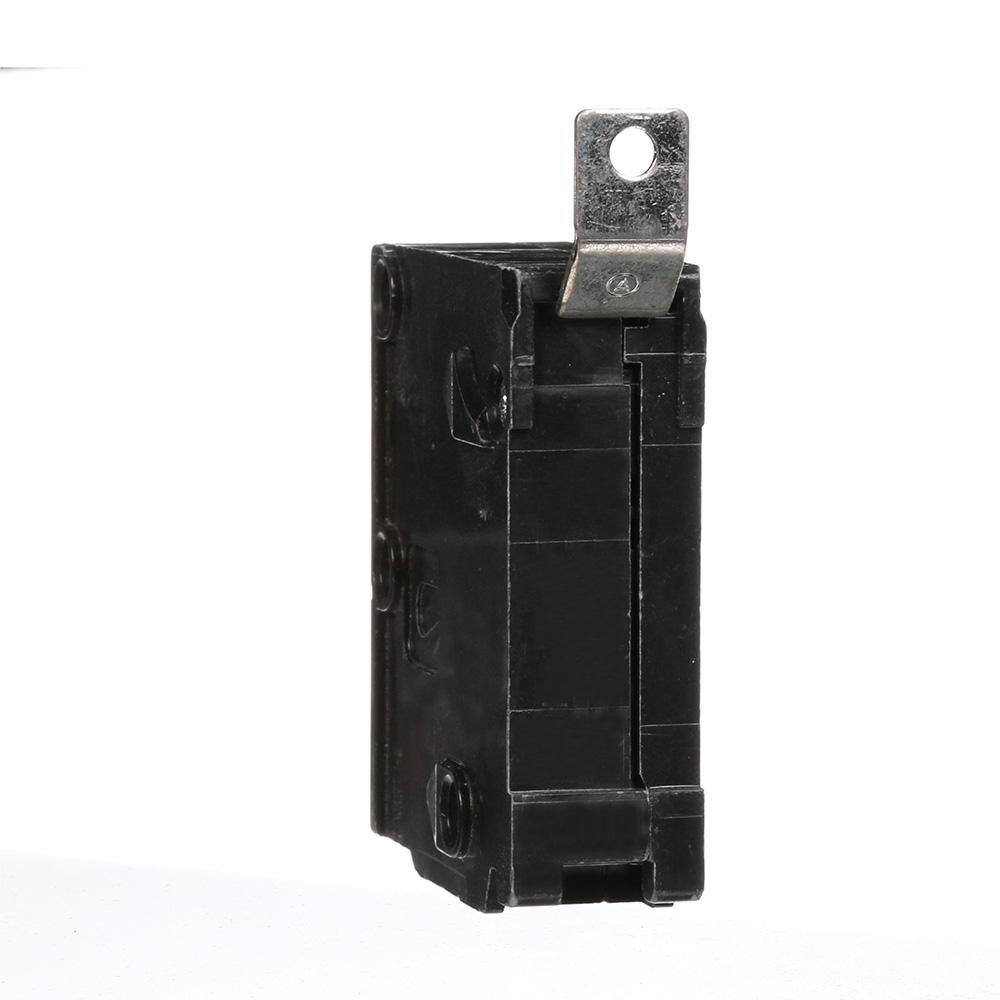

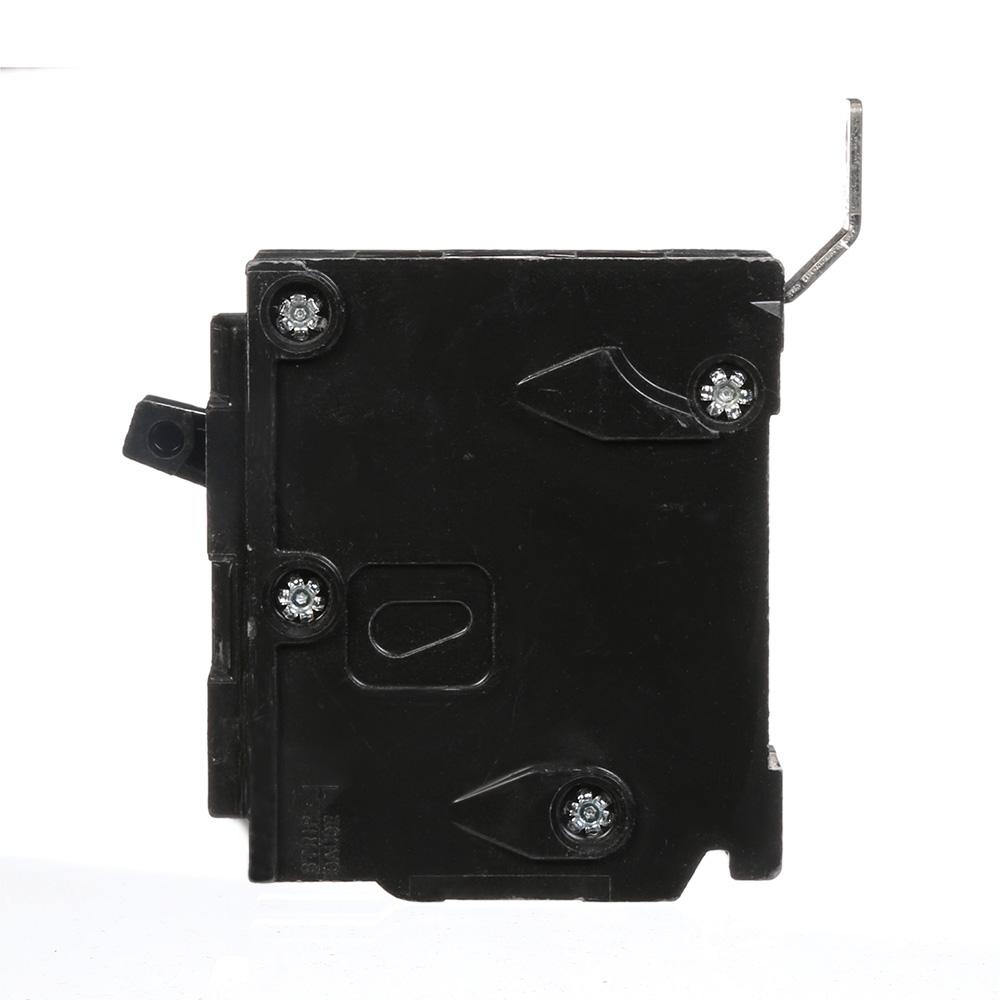

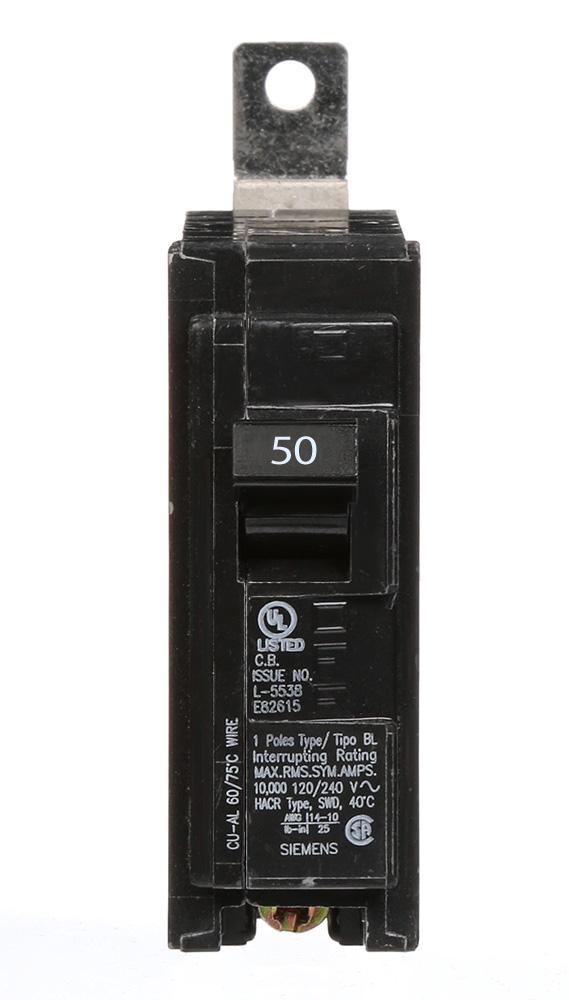

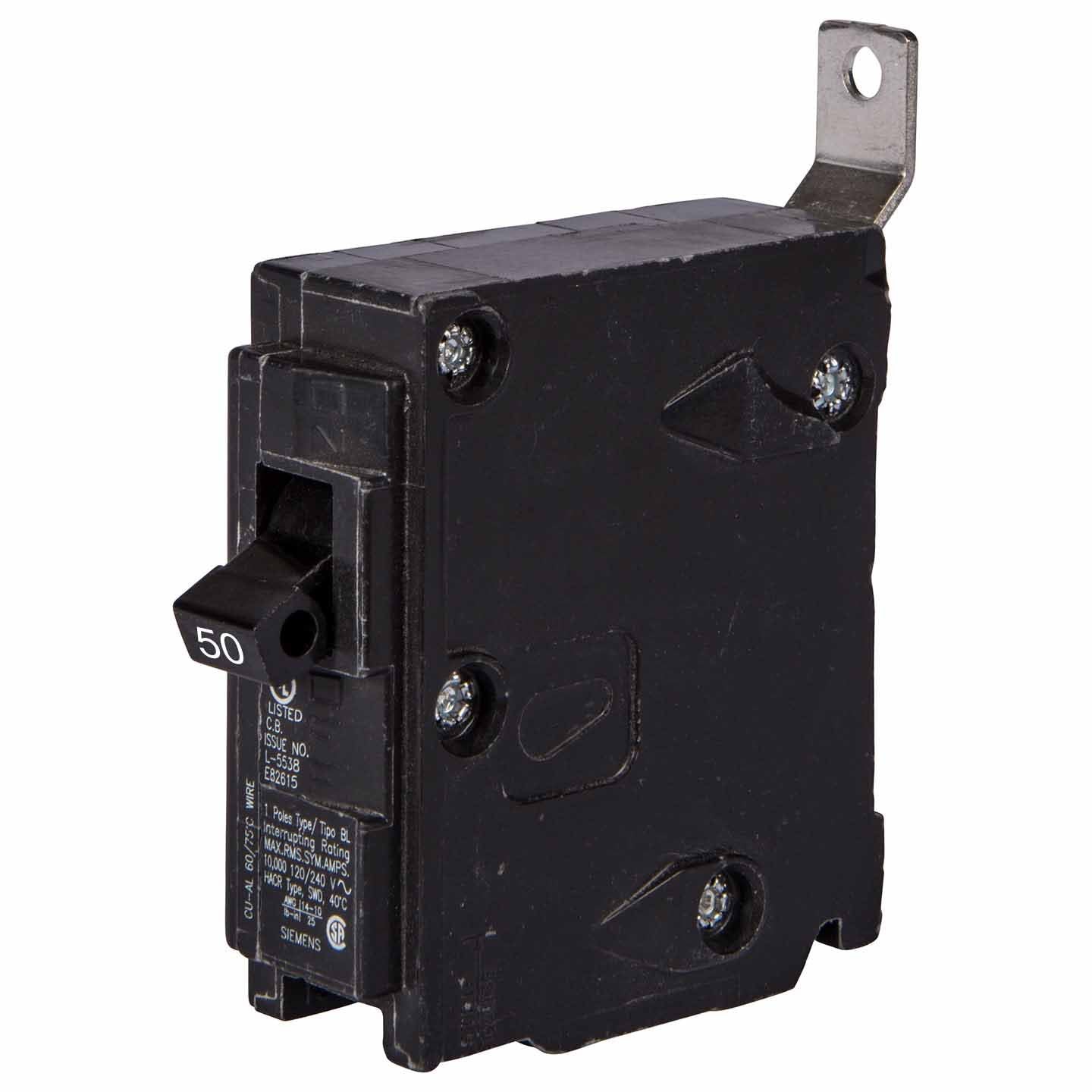

The Siemens B150 is a Molded Case Circuit Breaker from the BL Series family. It is a 1-pole, 240 Volt, 50 amp rated breaker with a 10kA@240V AIC rating and uses a bolt-on connection. This circuit breaker provides thermal magnetic protection for reliable performance.
Key Features:
✔ Part Number: B150
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901459453
✔ GTIN: 00783643263482
✔ Country of Origin: Mexico
✔ Dimensions: 5 in W x 13.7 in D x 8.3 in H
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
