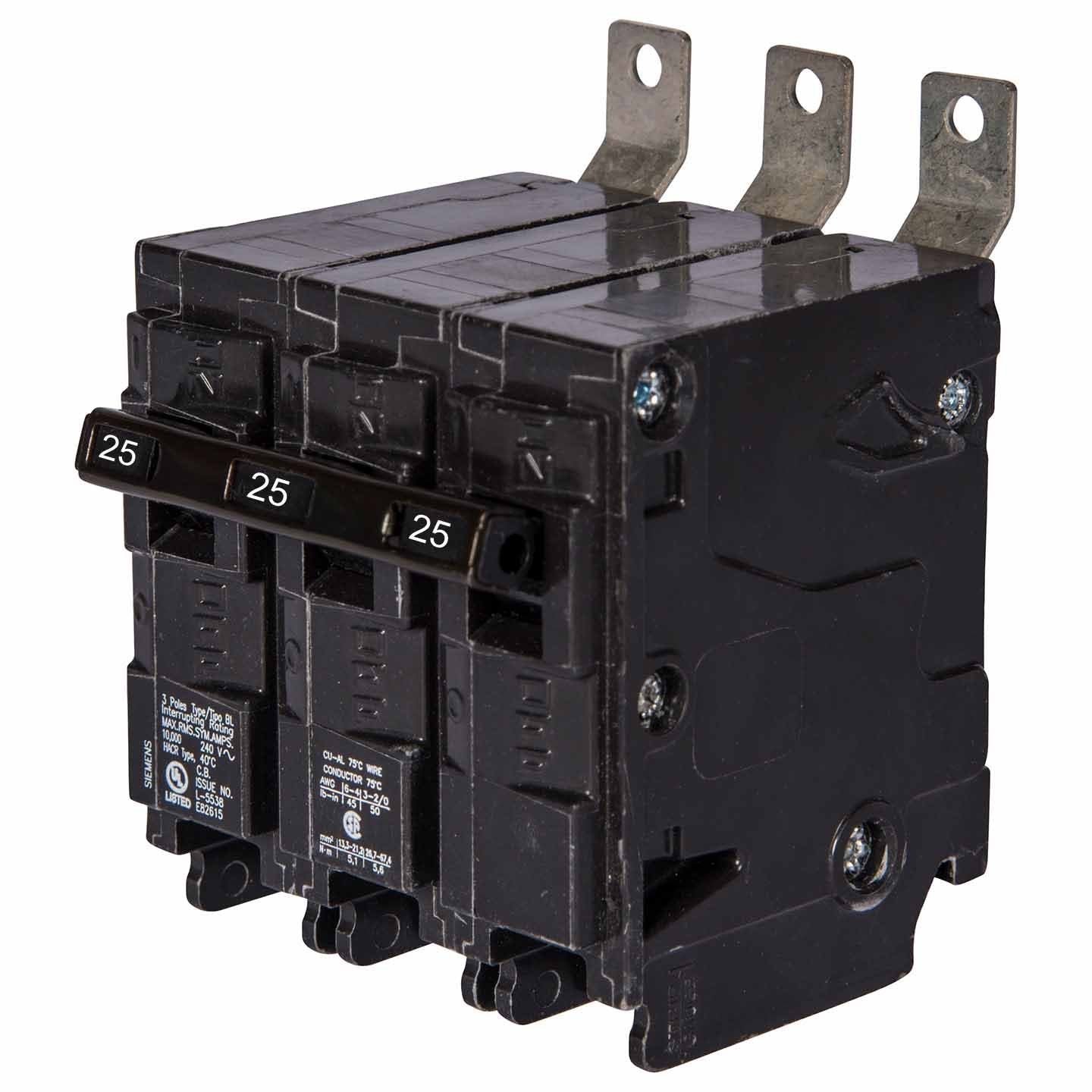

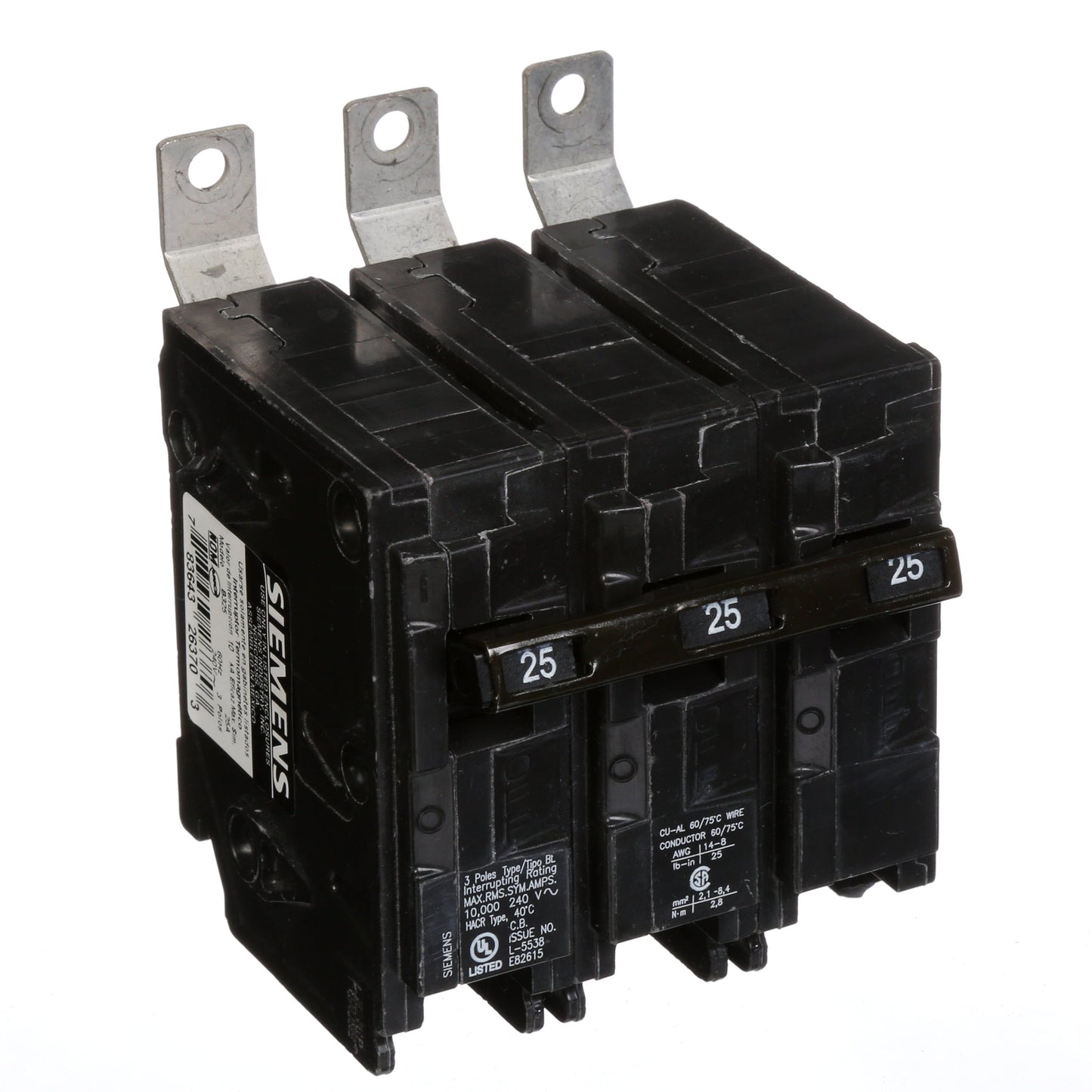

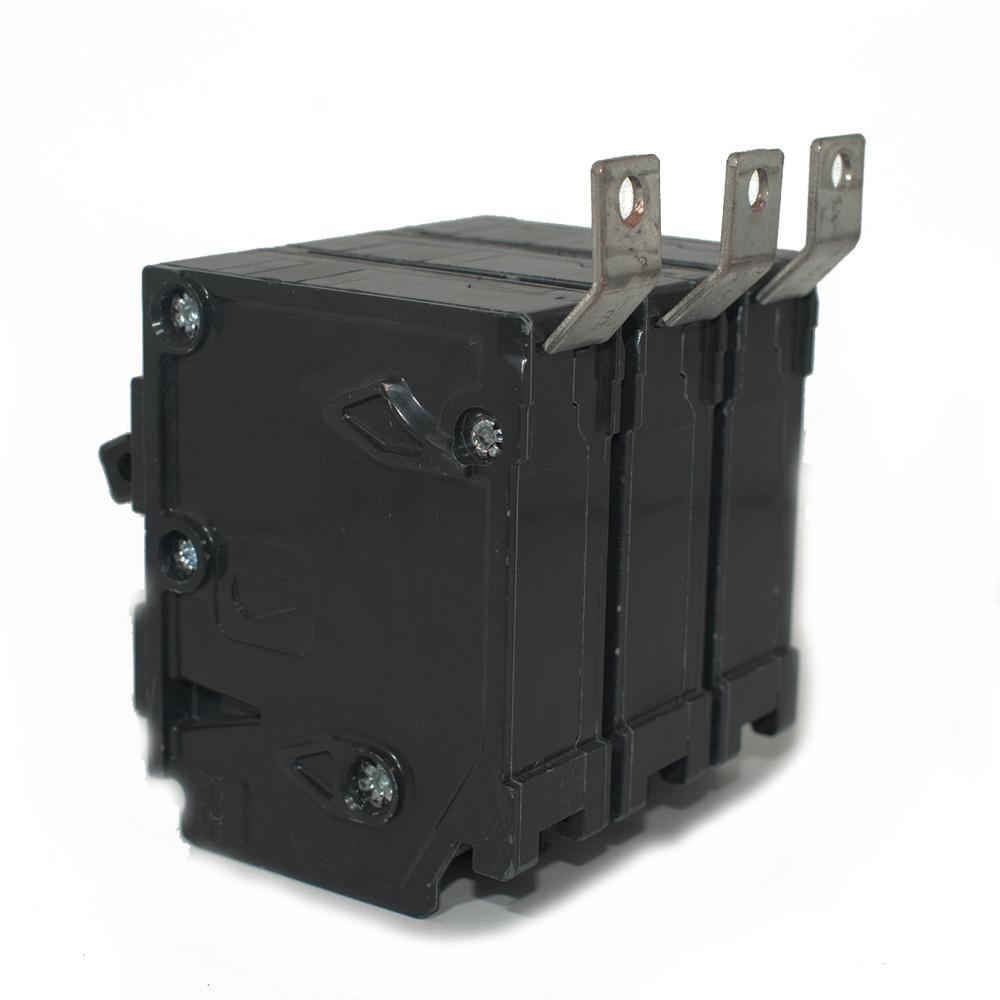

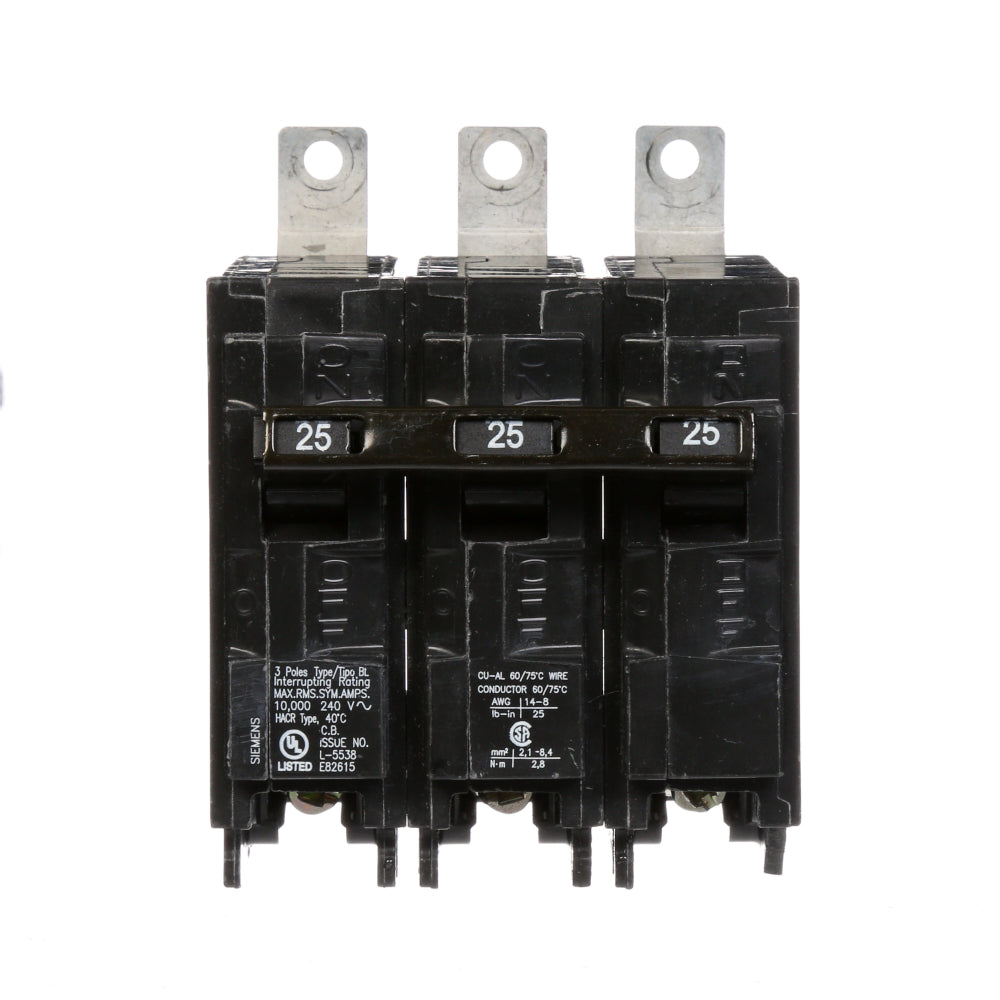

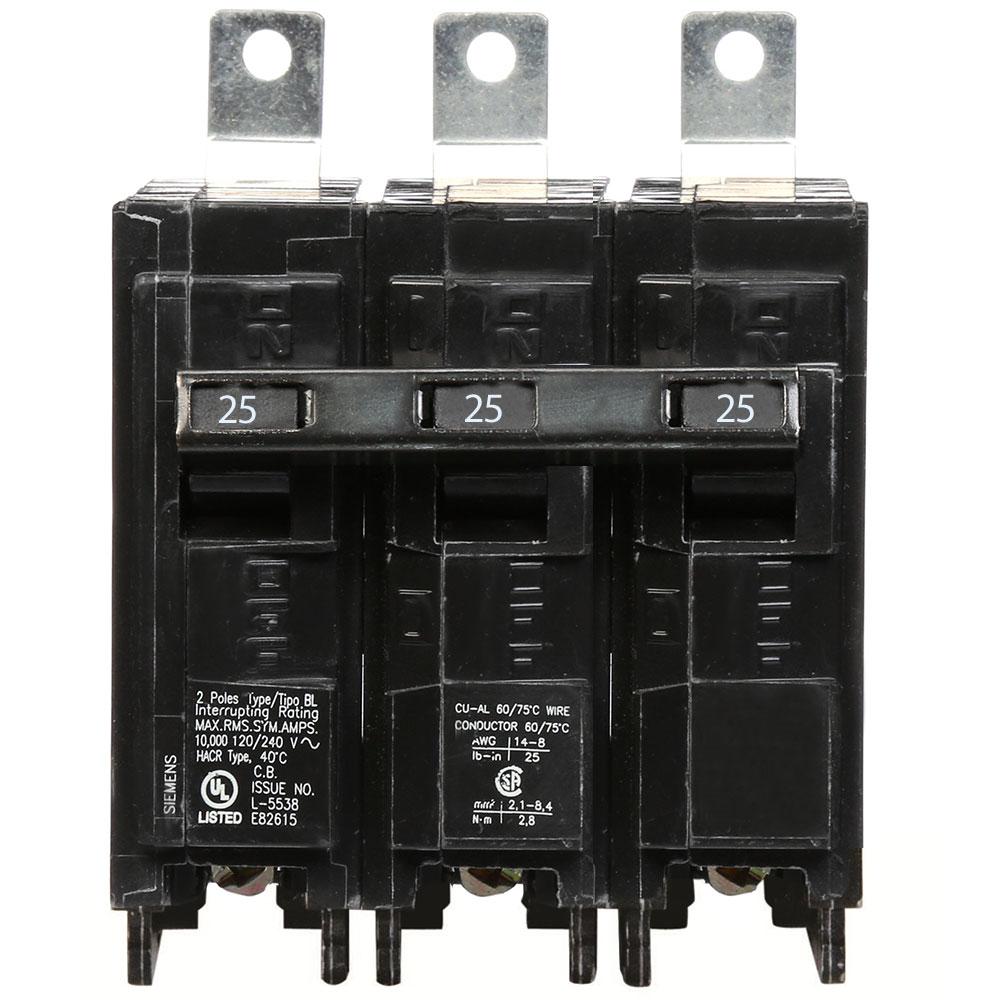

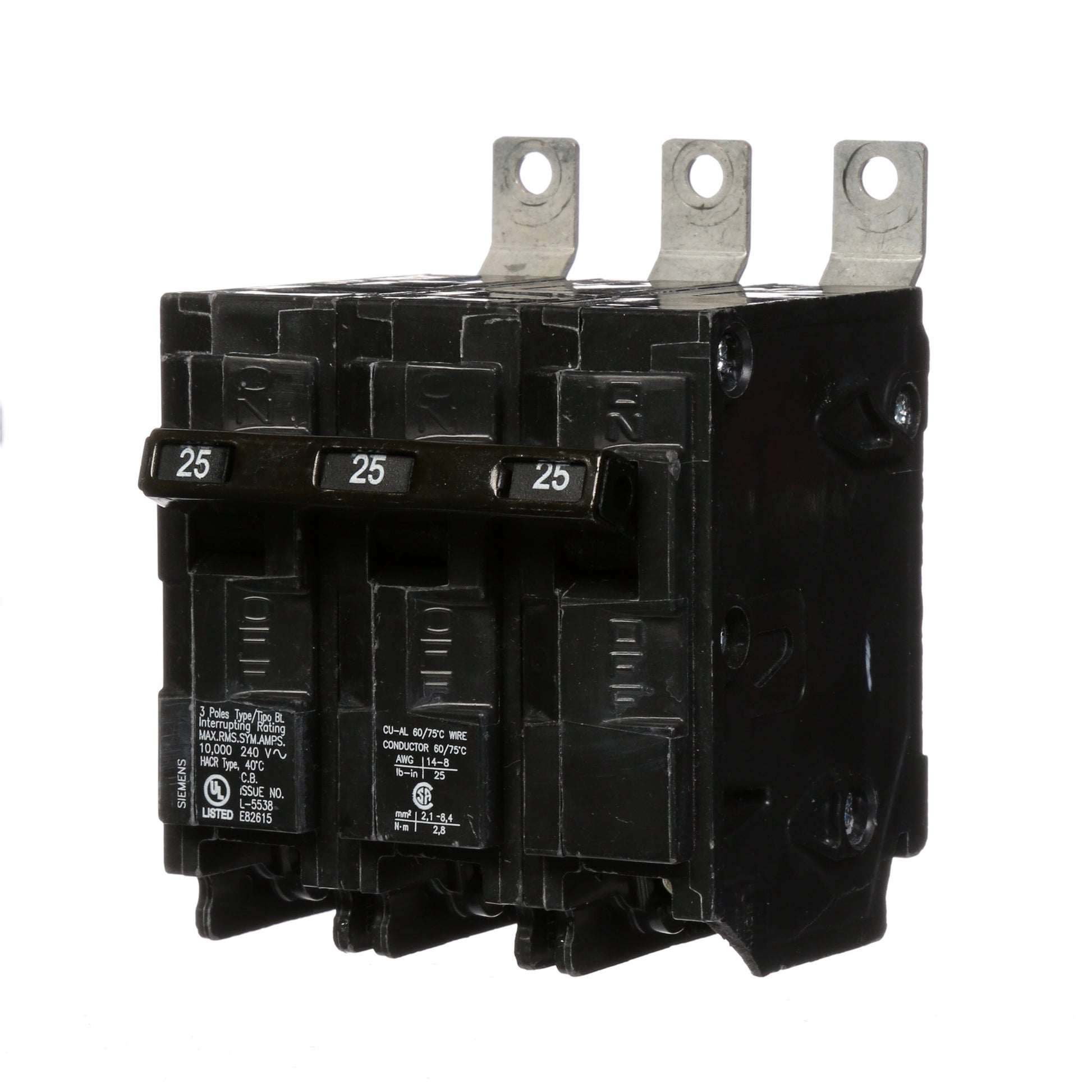

Siemens B325 Circuit Breaker | 240V 25A 3P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B325 is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 25 amp breaker rated for 240 volts with a 10kA interrupting capacity. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for use in Siemens P1 panelboards.

Key Features:
✔ Part Number: B325
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263703
✔ GTIN: 00783643263703
✔ Country of Origin: Mexico
✔ Dimensions: 4.4 in x 3.7 in x 3.7 in
✔ Weight: 0.5
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
