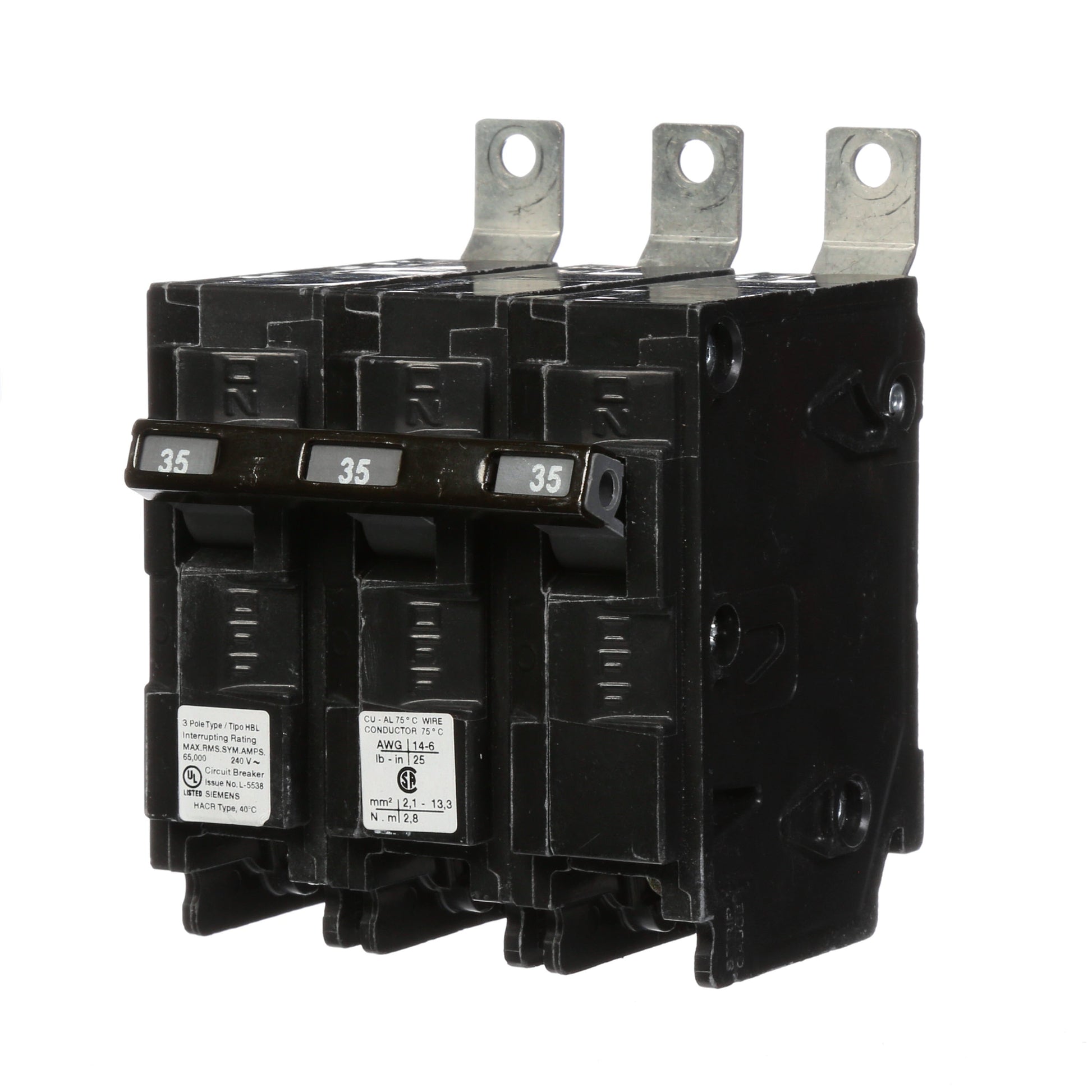

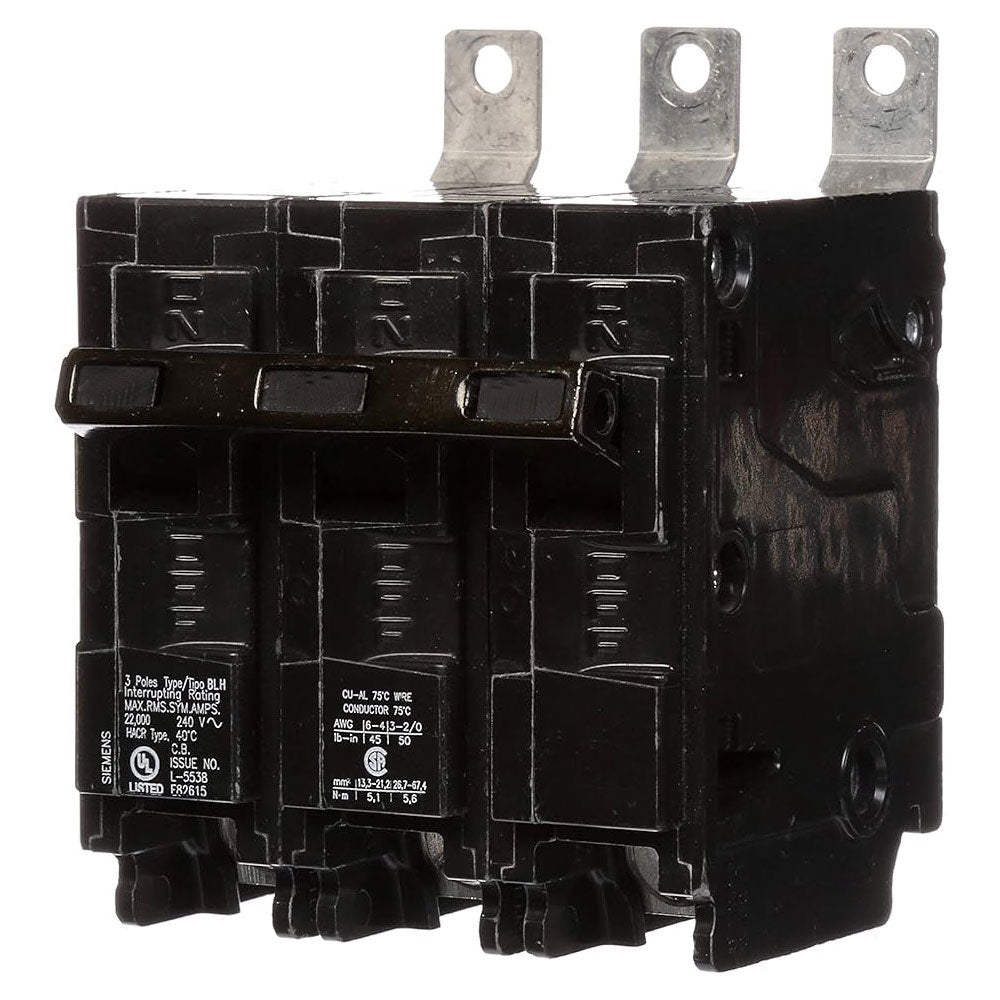

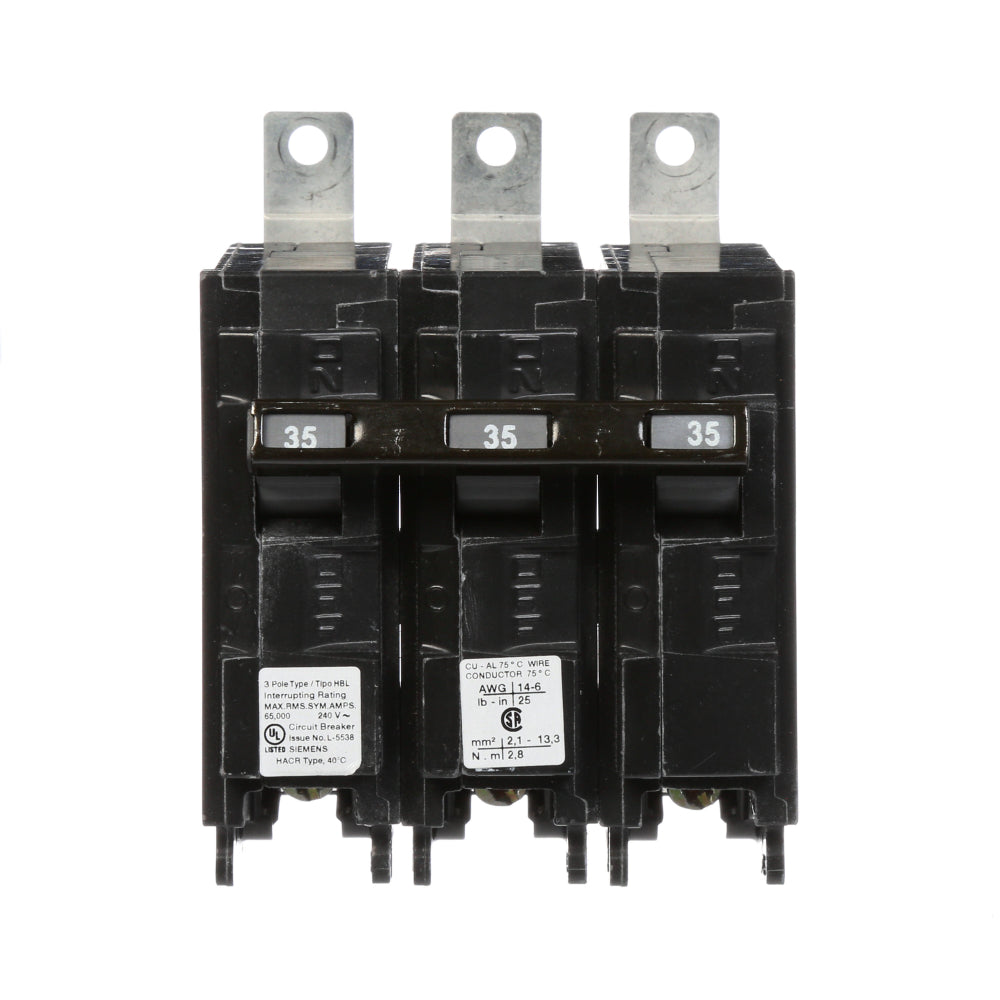

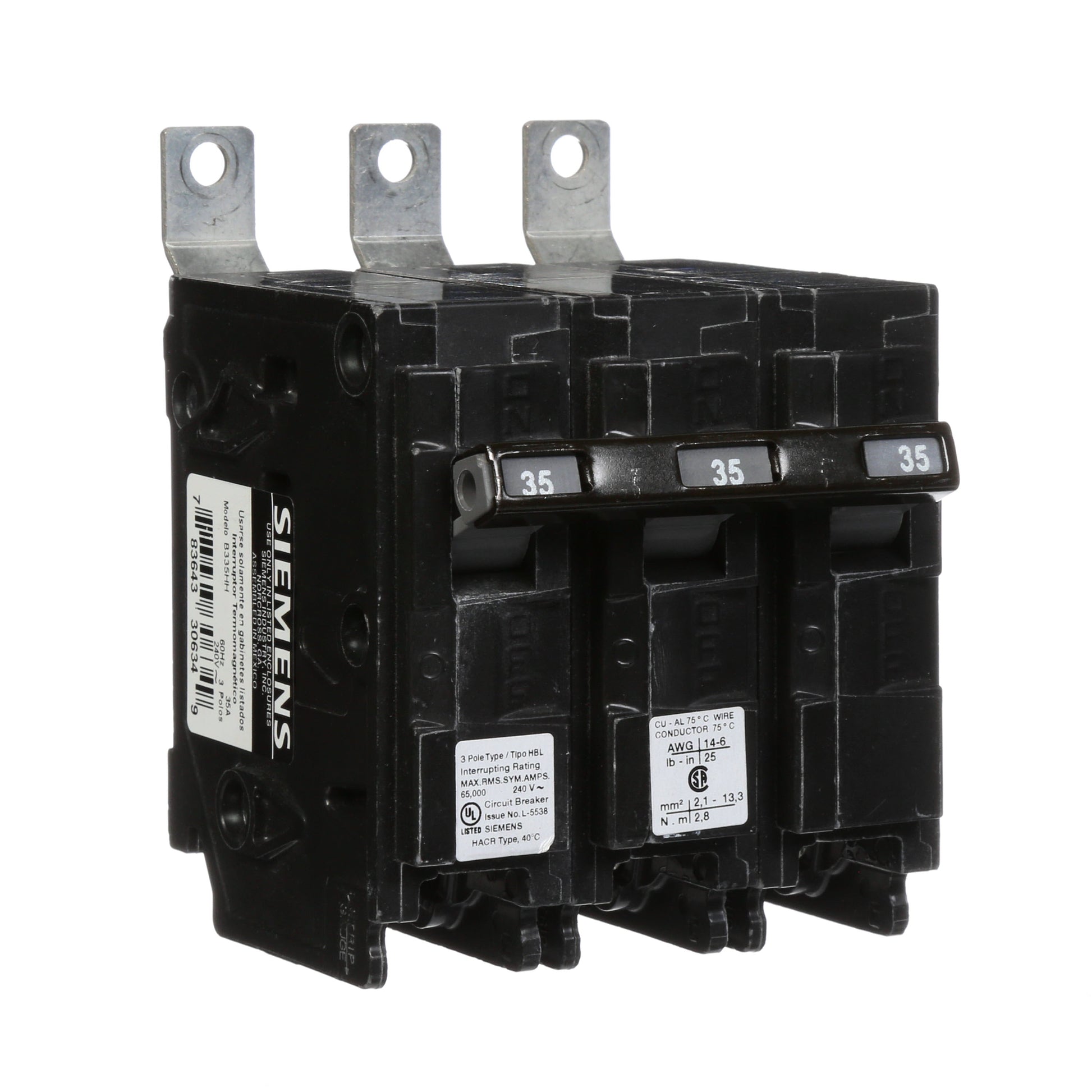

Siemens B335HH Circuit Breaker | 240V 35A 3P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B335HH is a Molded Case Circuit Breaker designed for reliable electrical protection. It is a 3-pole, 35 amp breaker rated for 240 volts with a 65kA interrupting capacity. This model features bolt-on connections and thermal magnetic protection for enhanced safety and performance.

Key Features:
✔ Part Number: B335HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 35
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643306349
✔ GTIN: 00783643306349
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 3 in x 4 in
✔ Weight: 1.1
✔ Panel Type: P1 Panelboards
✔ Standards: UL 489
✔ Certification: UL 489
