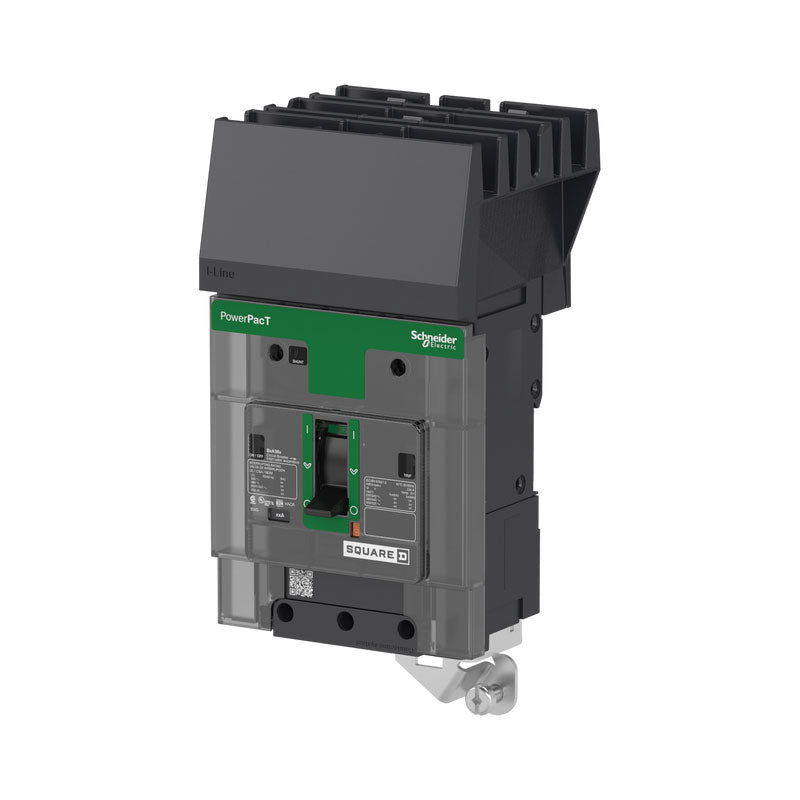

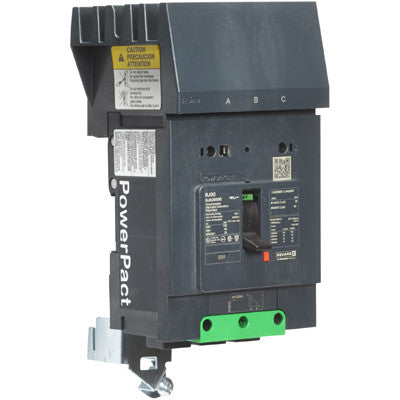

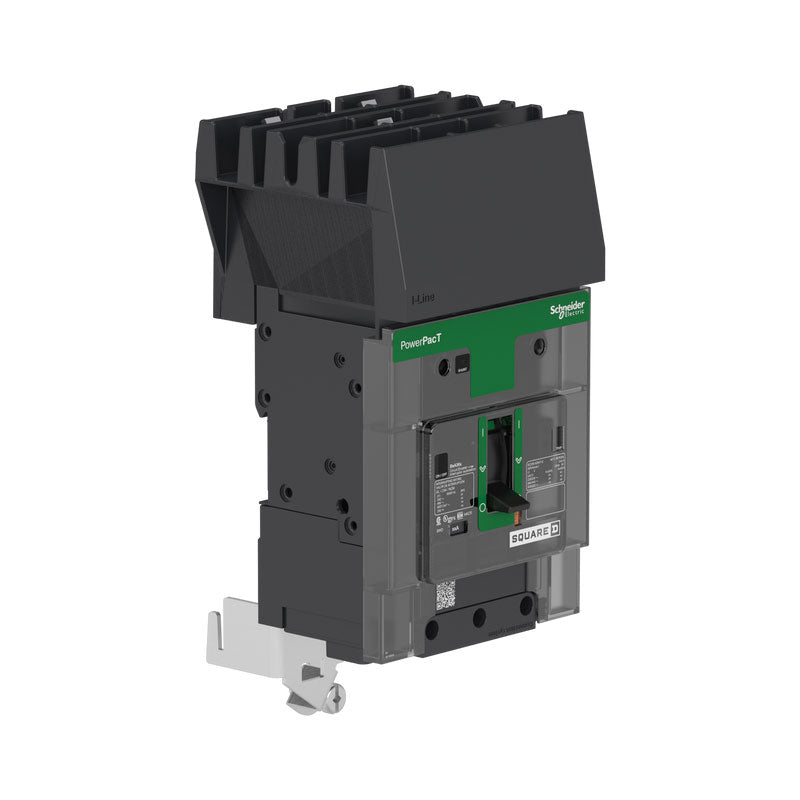

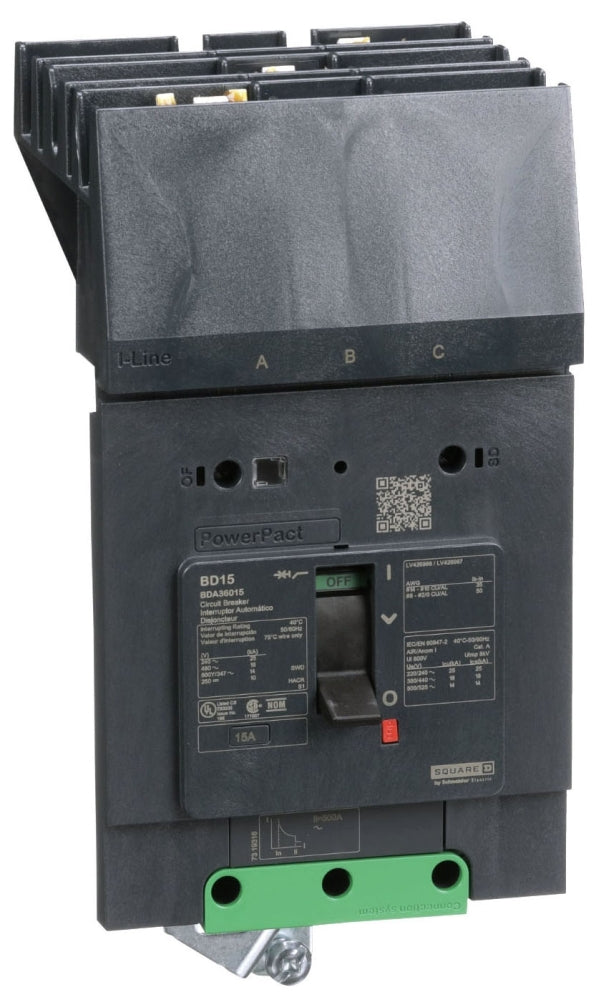

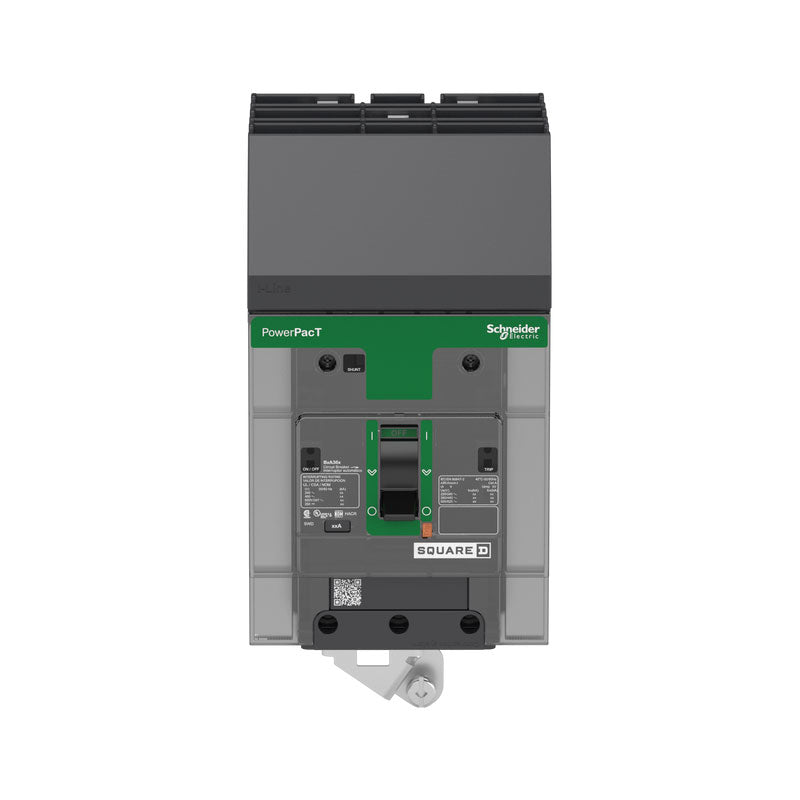

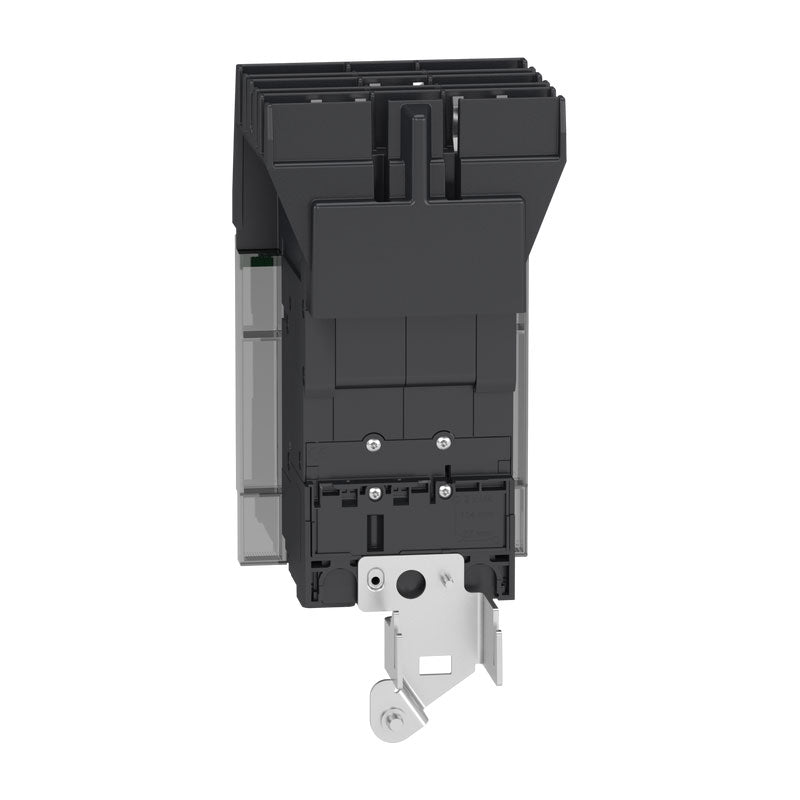

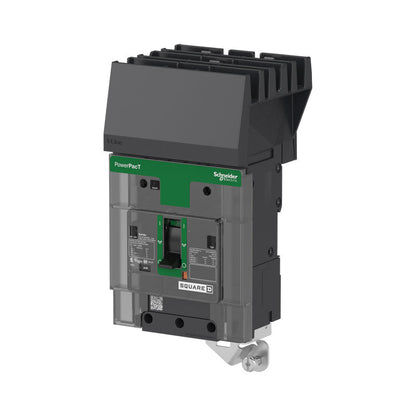

Square D BDA36050 Circuit Breaker | 600V 50A 3P 18kA@480V I-Line Powerpact
Square D BDA36050 Circuit Breaker | 600V 50A 3P 18kA@480V I-Line Powerpact
Price:
Sale
Sold out
Regular price
$499.84 USD
Regular price
$1,012.00 USD
Sale price
$499.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D BDA36050 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 50 amp breaker rated for 600 volts with an 18kA@480V AIC rating. This model features I-Line connections and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: BDA36050
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 50
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Breaker Type: Standard
✔ UPC: 785901010753
✔ GTIN: 03606481152626
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.72
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC, GB, NMX, CCC, EAC
The Square D BDA36050 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 50 amp breaker rated for 600 volts with an 18kA@480V AIC rating. This model features I-Line connections and provides thermal magnetic protection for reliable circuit interruption.
Key Features:
✔ Part Number: BDA36050
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 50
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Breaker Type: Standard
✔ UPC: 785901010753
✔ GTIN: 03606481152626
✔ Country of Origin: Mexico

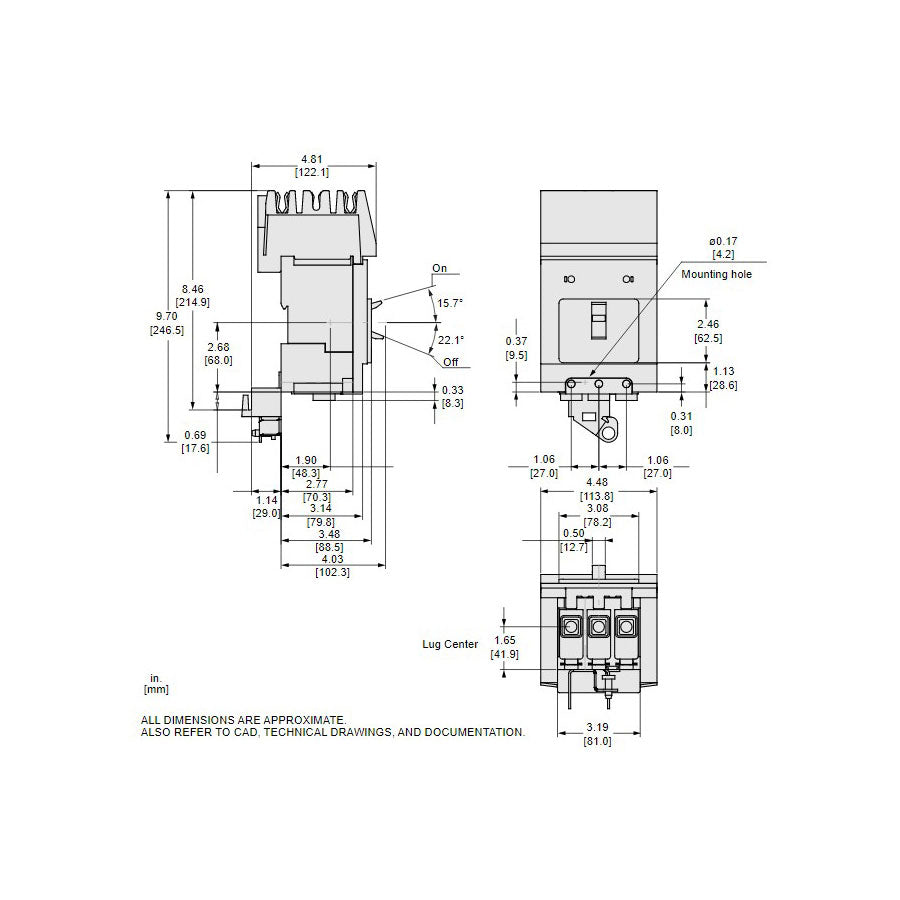

✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.72
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC, GB, NMX, CCC, EAC
