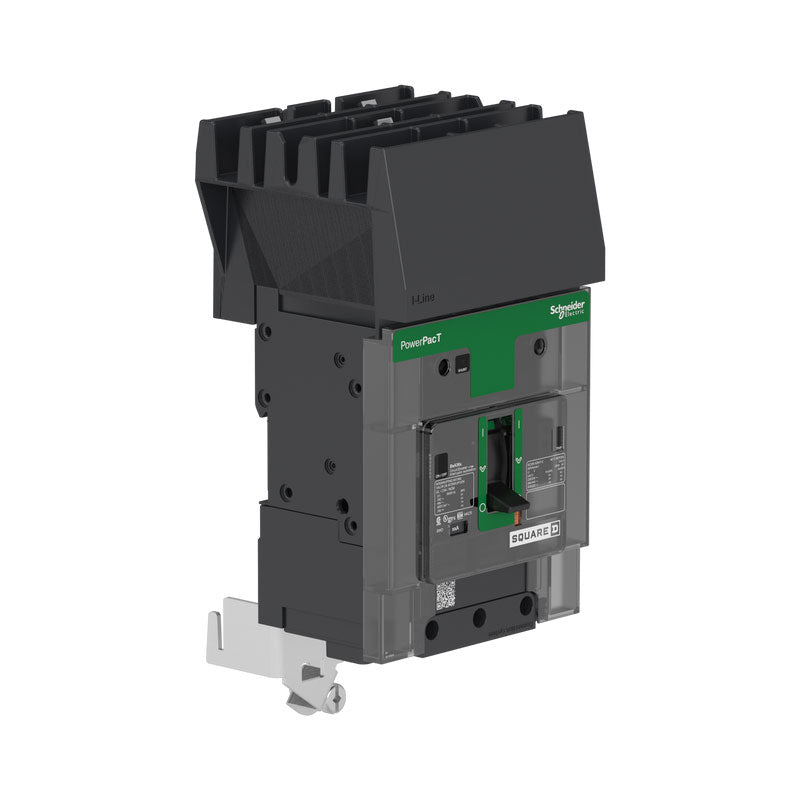

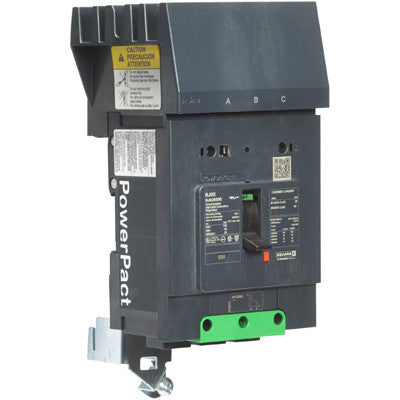

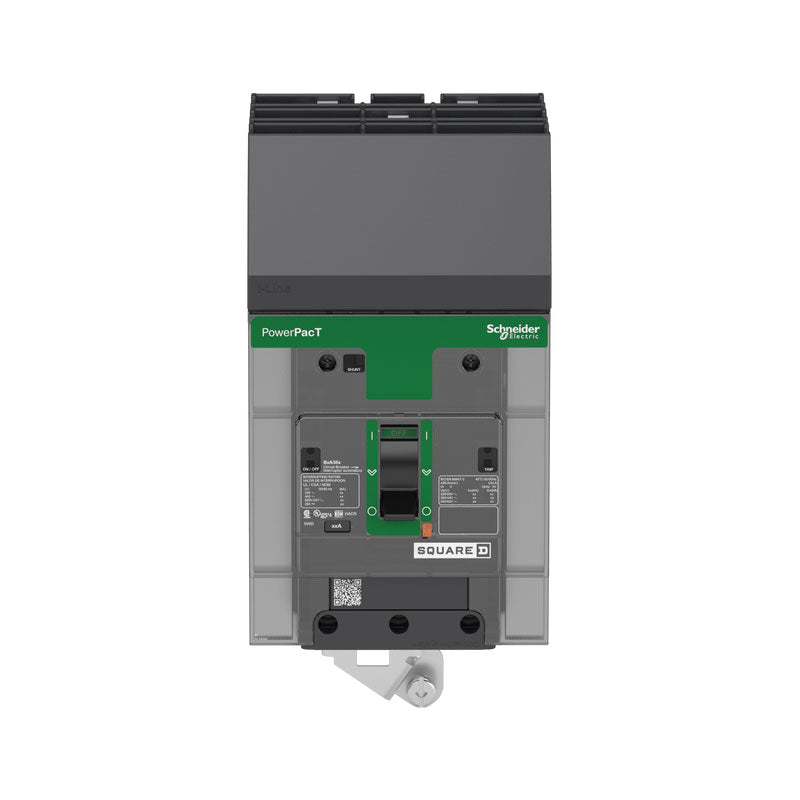

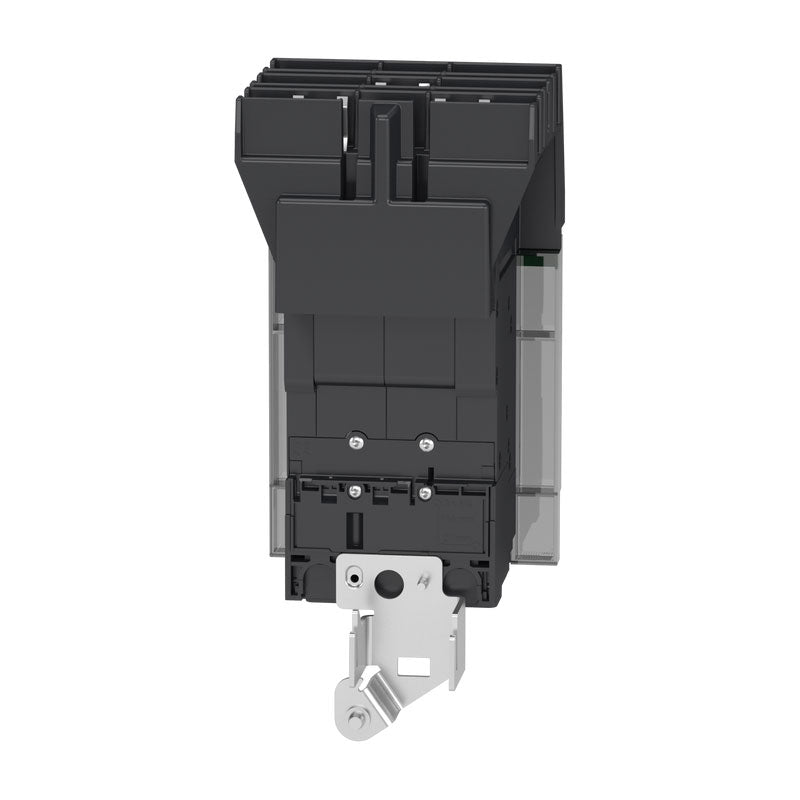

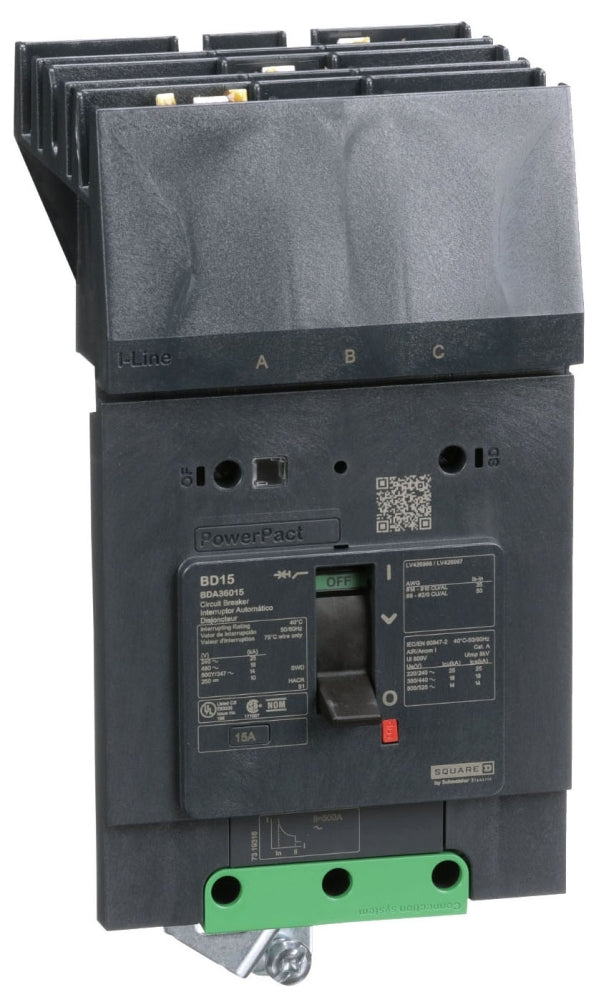

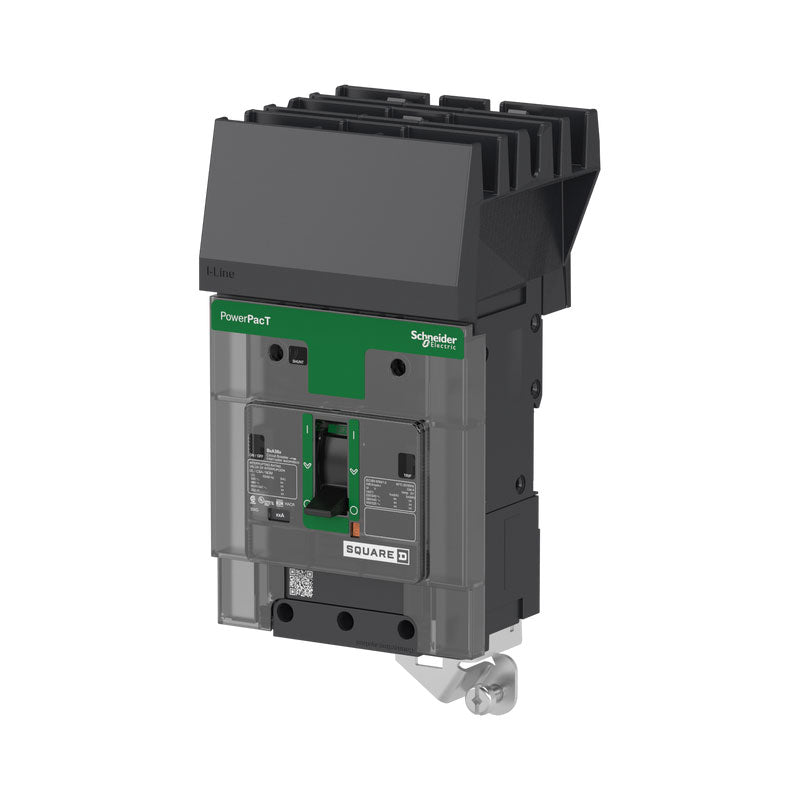

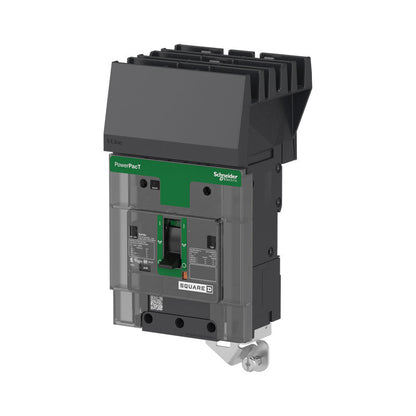

Schneider Electric BDA36070 Circuit Breaker | 600V 70A 3P 18kA@480V I-Line Powerpact
Schneider Electric BDA36070 Circuit Breaker | 600V 70A 3P 18kA@480V I-Line Powerpact
Price:
Sale
Sold out
Regular price
$599.84 USD
Regular price
$1,225.00 USD
Sale price
$599.84 USD
Unit price
per
Shipping calculated at checkout.
Stock:
100+ in stock
Couldn't load pickup availability
Product Description:
The Square D BDA36070 is a 3-pole Molded Case Circuit Breaker from the Powerpact family. It is rated for 600 Volts and 70 Amps with an AIC rating of 18kA@480V. This breaker features Thermal Magnetic protection and uses an I-Line connection for reliable performance.
Key Features:
✔ Part Number: BDA36070
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 70
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Wire Size: AWG 14 to AWG 2
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC, GB, NMX, CCC, EAC
✔ UPC: 785901010883
✔ GTIN: 03606481152664
✔ Country of Origin: Mexico

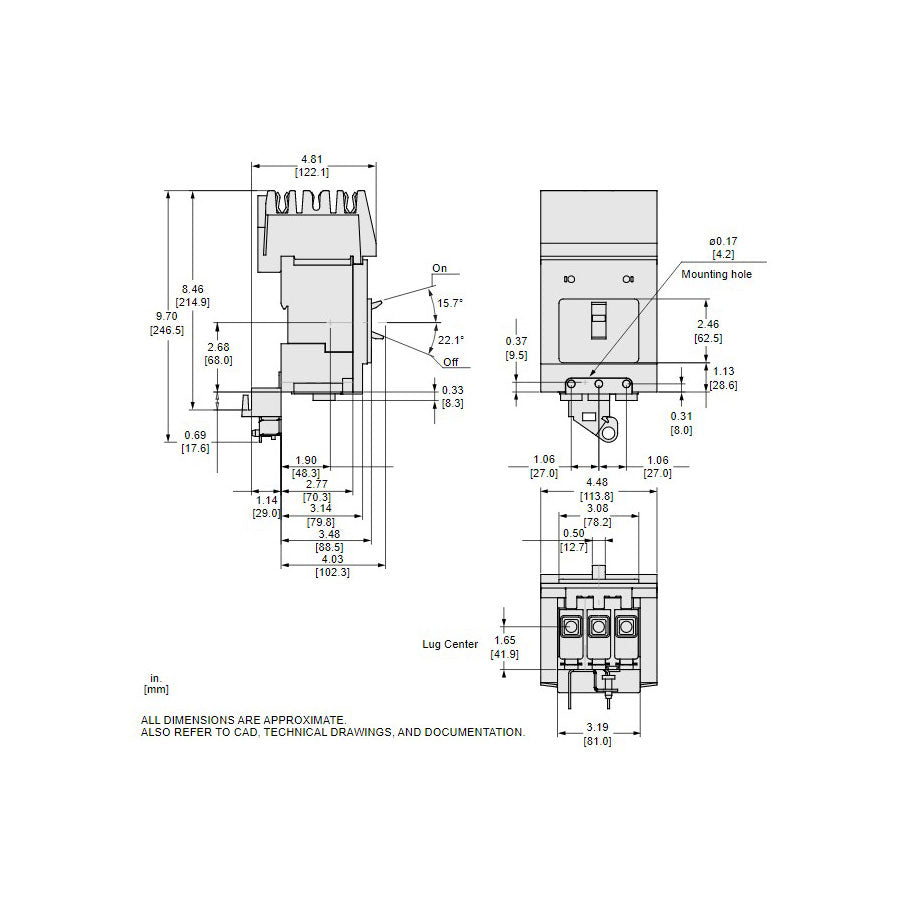

✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.91 lb
The Square D BDA36070 is a 3-pole Molded Case Circuit Breaker from the Powerpact family. It is rated for 600 Volts and 70 Amps with an AIC rating of 18kA@480V. This breaker features Thermal Magnetic protection and uses an I-Line connection for reliable performance.
Key Features:
✔ Part Number: BDA36070
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 70
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Wire Size: AWG 14 to AWG 2
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC, GB, NMX, CCC, EAC
✔ UPC: 785901010883
✔ GTIN: 03606481152664
✔ Country of Origin: Mexico
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.91 lb
