Square D BDA36090 Circuit Breaker | 600V 90A 3P 18kA@480V I-Line Powerpact

Product Description:

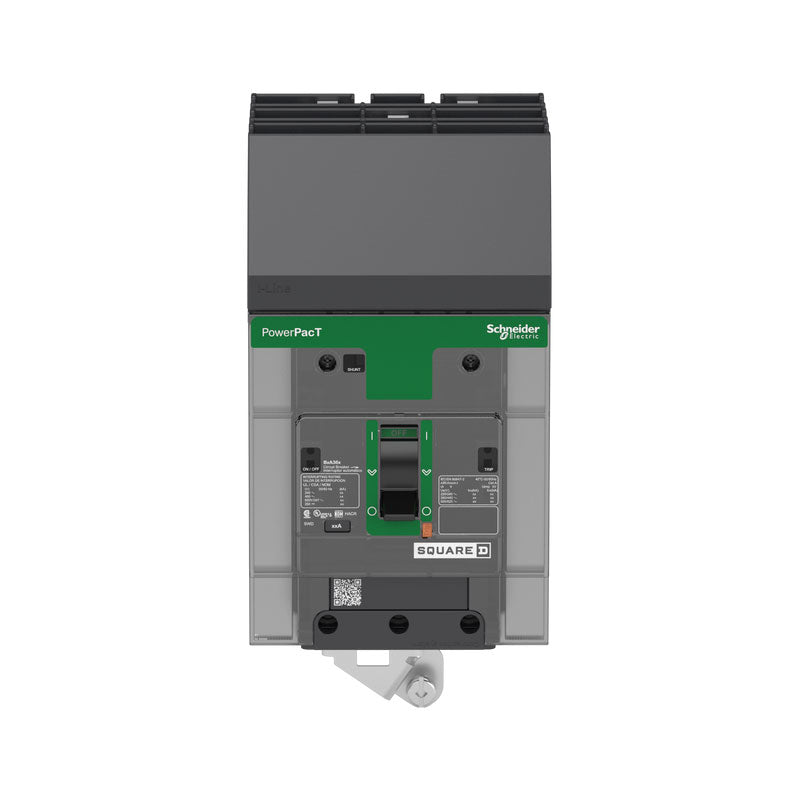

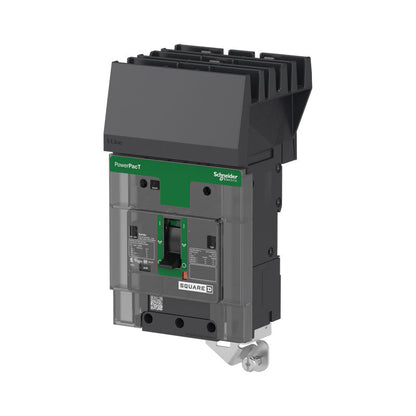

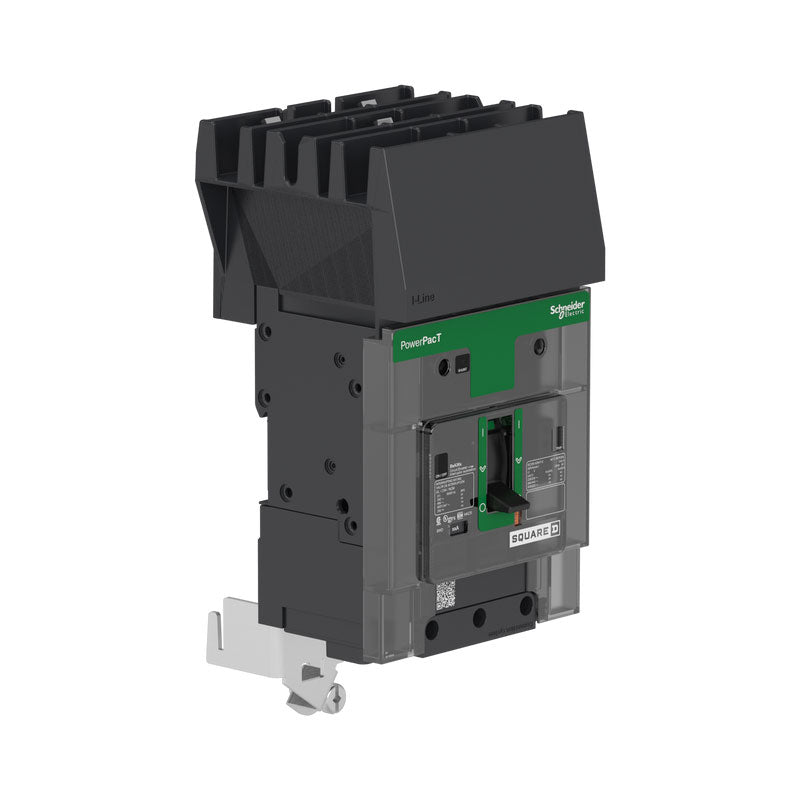

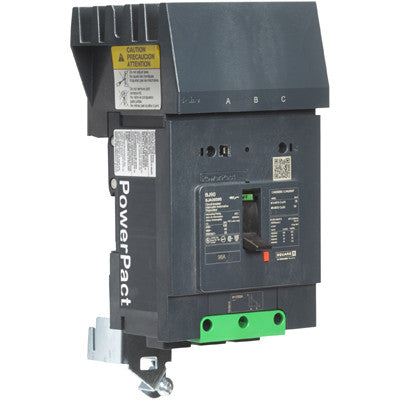

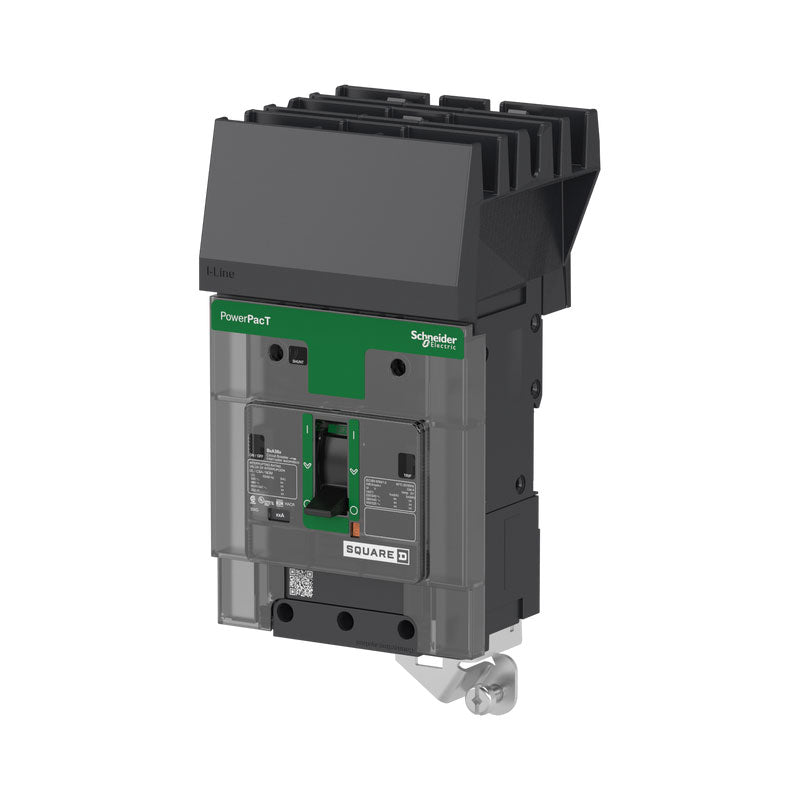

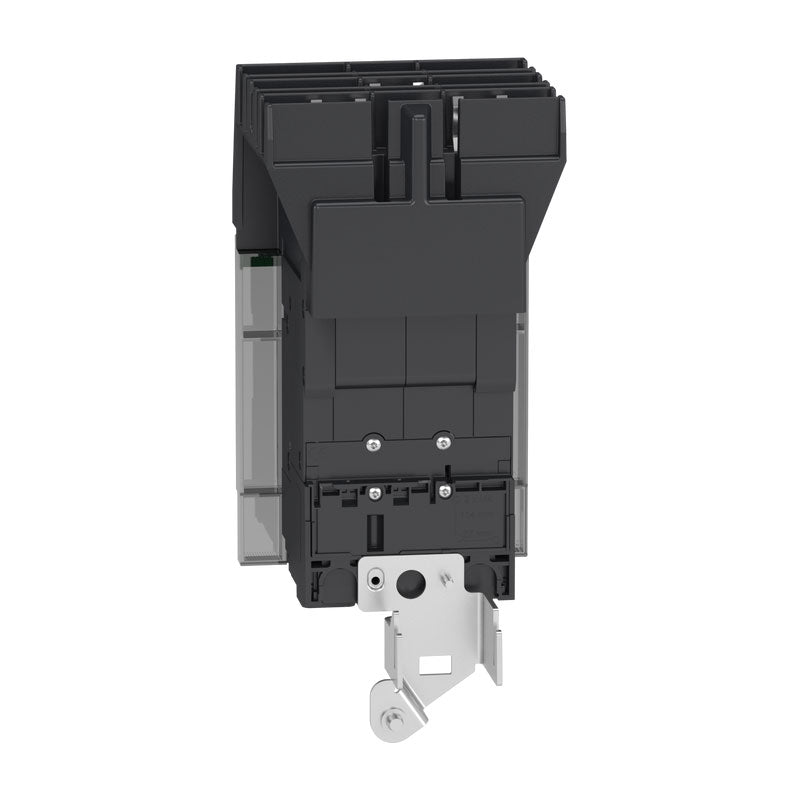

The Square D BDA36090 is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 90 amp breaker rated for 600 Volts with an 18kA@480V AIC rating. This circuit breaker uses an I-Line connection and provides Thermal Magnetic protection for reliable operation.

Key Features:
✔ Part Number: BDA36090
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901470779
✔ GTIN: 03606481152701
✔ Country of Origin: Mexico

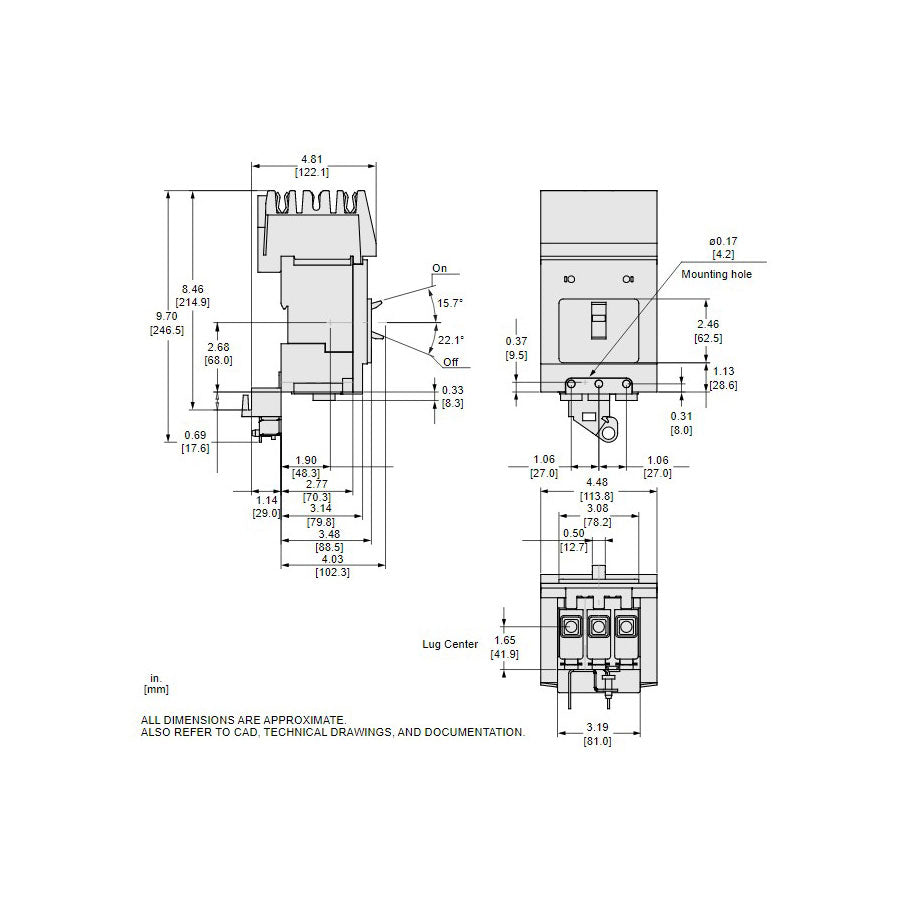

✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 3
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CE, UL, CSA, NEMA, NOM, IEC, GB, NMX, CCC, EAC
✔ Wire Size: AWG 14 to AWG 2/0, Aluminum/Copper
