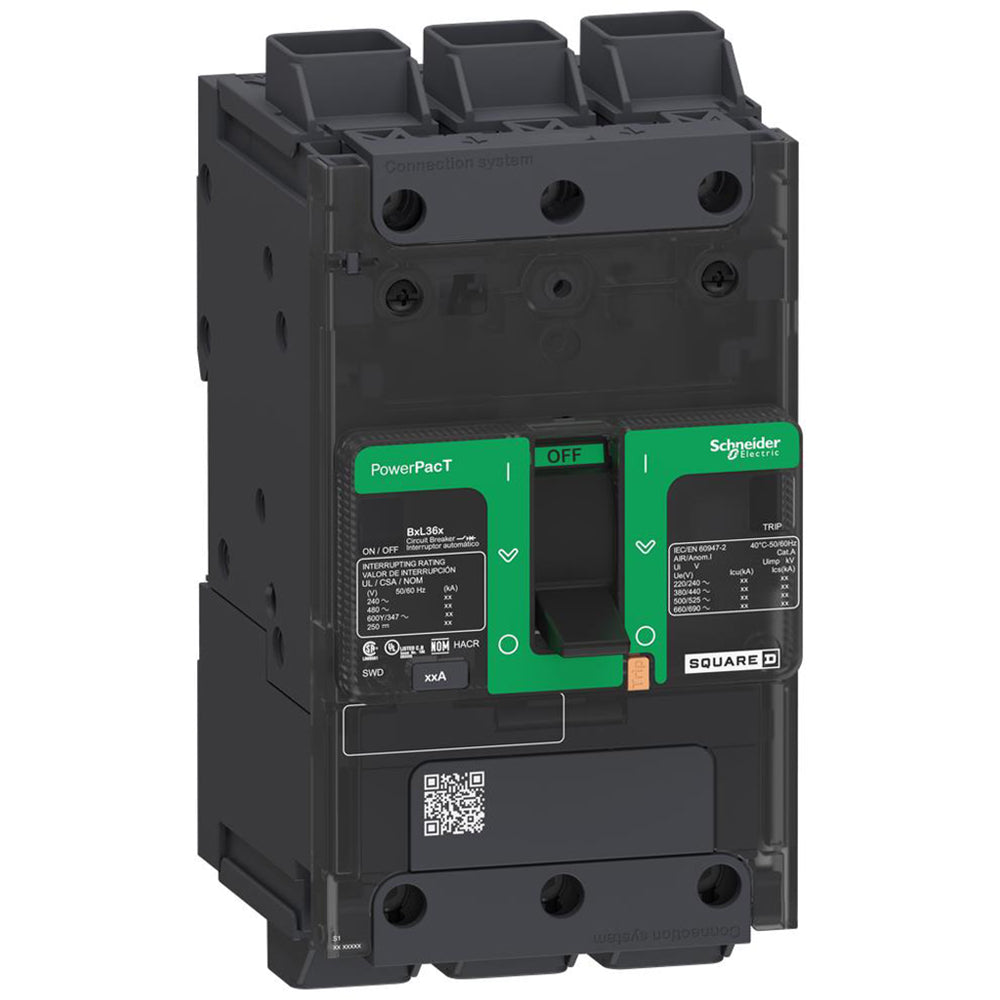

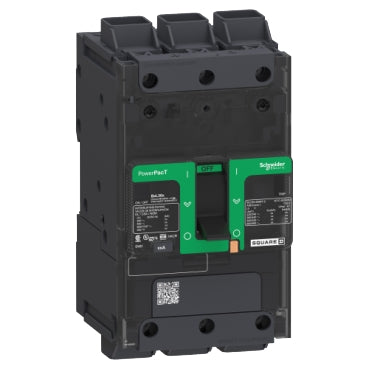

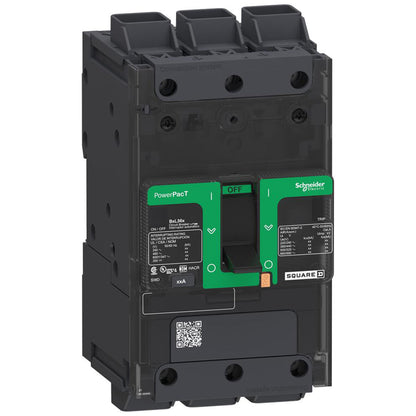

Schneider Electric BDL36025 Circuit Breaker | Powerpact BDL 600V 25A

Product Description:
The Schneider Electric BDL36025 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 25A rating and an AIC rating of 18kA@480V. This breaker includes Thermal Magnetic protection and uses a Feed-Thru connection for easy installation. It supports a wide range of wire sizes, from 14 AWG to 3/0 AWG, for flexible applications.

Key Features:
✔ Part Number: BDL36025
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600V
✔ Amperage: 25A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: 14 AWG to 3/0 AWG (rigid/stranded)
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 606481152995
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
