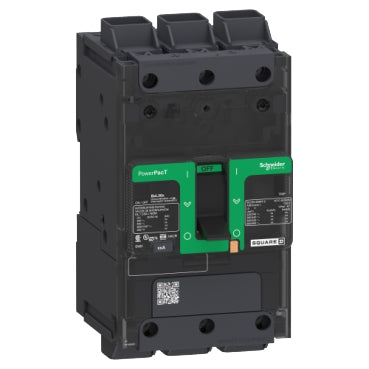

Schneider Electric BDL36040LU Circuit Breaker | 600V 40A 3P 18kA@480V Feed-Thru
Schneider Electric BDL36040LU Circuit Breaker | 600V 40A 3P 18kA@480V Feed-Thru
Price:
Sale
Sold out
Regular price
$814.60 USD
Regular price
$1,090.00 USD
Sale price
$814.60 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Schneider Electric BDL36040LU is a 3-pole molded case circuit breaker designed for industrial and commercial electrical systems. It is rated for 40 amps and 600 volts, providing reliable circuit protection with an 18kA interrupting capacity at 480V. This breaker features a convenient feed-thru connection and is built to meet multiple industry standards for safety and performance.
Key Features:
✔ Part Number: BDL36040LU
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 785901094432
✔ GTIN: 03606481149107
✔ Country of Origin: United States
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.34
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
