Schneider Electric BDL36050LU Circuit Breaker | 600V 50A 3P 18kA@480V Feed-Thru Powerpact

Product Description:

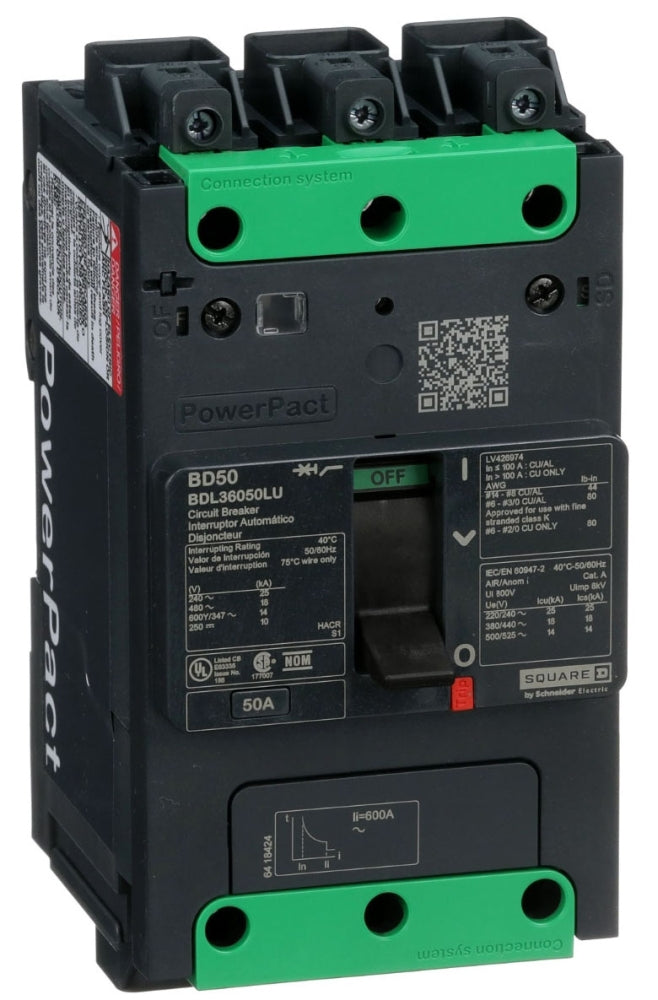

The Schneider Electric BDL36050LU is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 50 amp breaker rated for 600 Volts with an 18kA@480V AIC rating. This model features Feed-Thru connections and provides Thermal Magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: BDL36050LU
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600
✔ Amperage: 50
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 785901094678
✔ GTIN: 03606481149121
✔ Country of Origin: United States
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
