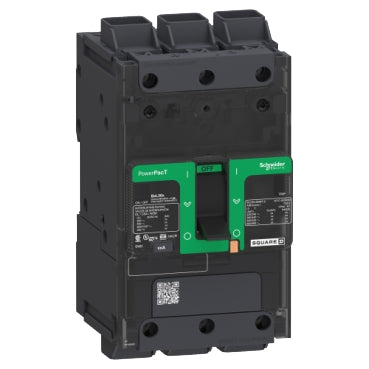

Schneider Electric BDL36060LU Molded Case Circuit Breaker | 600V 60A 3P 18kA@480V Feed-Thru

Product Description:
The Schneider Electric BDL36060LU is a 3-pole molded case circuit breaker designed for industrial and commercial electrical systems. It is rated for 600 Volts and 60 amps, providing reliable overcurrent protection. This breaker features a feed-thru connection and an interrupting capacity of 18kA at 480V, ensuring safe operation in demanding environments.

Key Features:
✔ Part Number: BDL36060LU
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG, Max. 2 AWG, 3 AWG
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 785901095095
✔ GTIN: 03606481149138
✔ Country of Origin: United States
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.18
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
