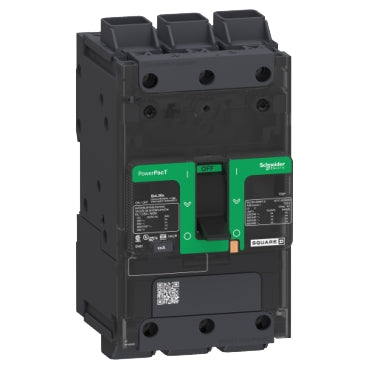

Schneider Electric BDL36070LU Circuit Breaker | 600V 70A 3P 18kA@480V Feed-Thru

Product Description:
The Schneider Electric BDL36070LU is a 3-pole molded case circuit breaker designed for industrial and commercial electrical systems. It is rated for 70 amps and 600 volts, with an interrupting capacity of 18kA at 480V. This model features a feed-thru connection and Everlink lugs for reliable and secure wiring.

Key Features:
✔ Part Number: BDL36070LU
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Voltage: 600
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ UPC: 785901095101
✔ GTIN: 03606481149145
✔ Country of Origin: United States
✔ Dimensions: 3.19 in x 5.39 in
✔ Weight: 1.34
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
