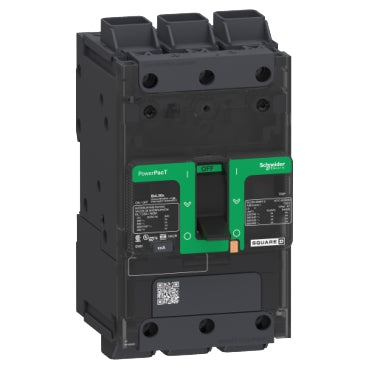

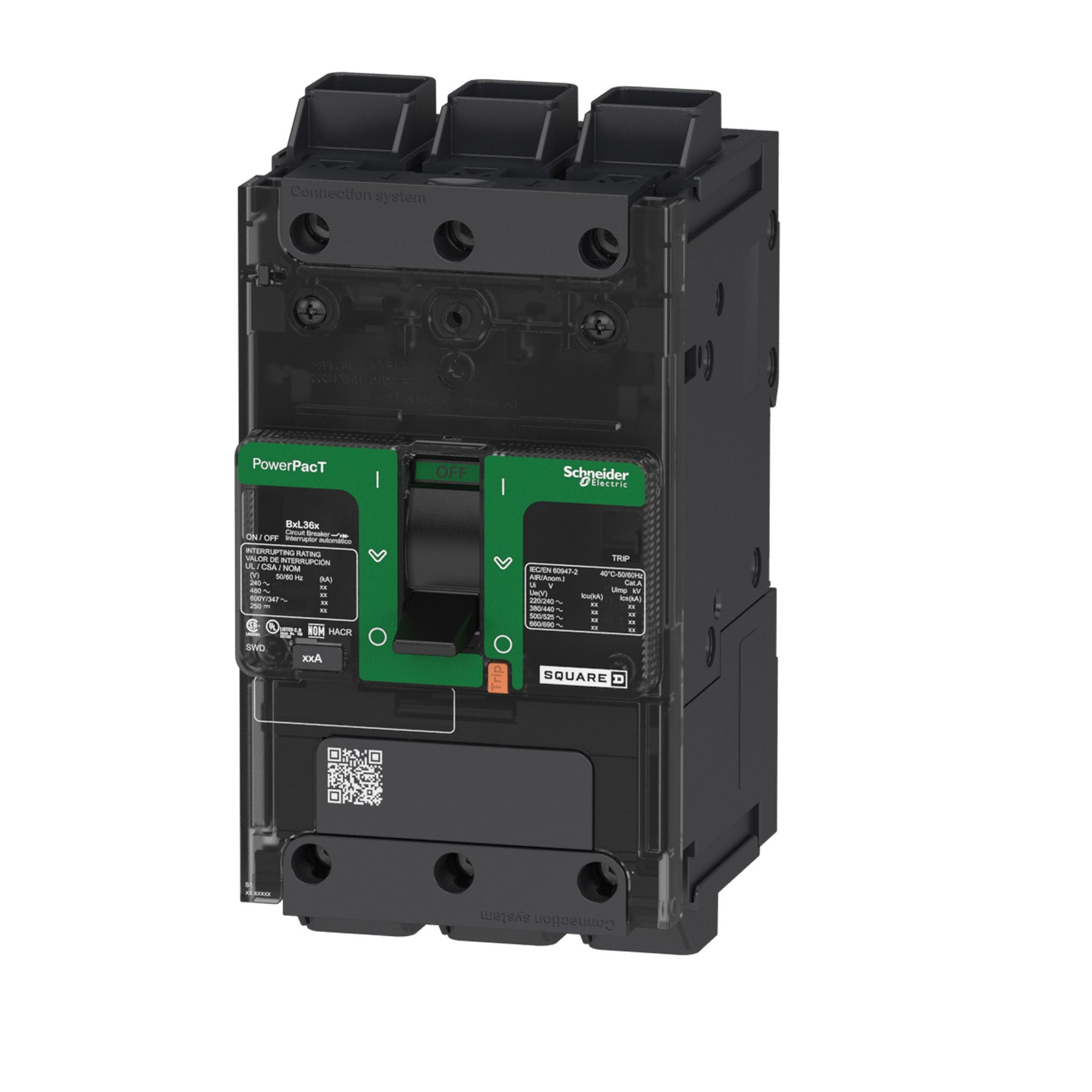

Schneider Electric BDL36110 Circuit Breaker | Powerpact BDL 600V 110A

Product Description:
The Schneider Electric BDL36110 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 110A rating and an AIC rating of 18kA@480V. This breaker uses a Feed-Thru connection and includes Thermal Magnetic protection for reliable performance. It is suitable for industrial control panels and electrical distribution equipment.

Key Features:
✔ Part Number: BDL36110
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDL
✔ Voltage: 600V
✔ Amperage: 110A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: Feed-Thru
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Everlink Lug Both Ends
✔ Frame Size: 125A/BD
✔ Wire Size: Min. 14 AWG, Max. 2 AWG (rigid/stranded)
✔ Temp Rating: -13-158°F (-25-70°C)
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 785901072270
✔ GTIN: 00785901072270
✔ Country of Origin: Mexico
