Product Description:

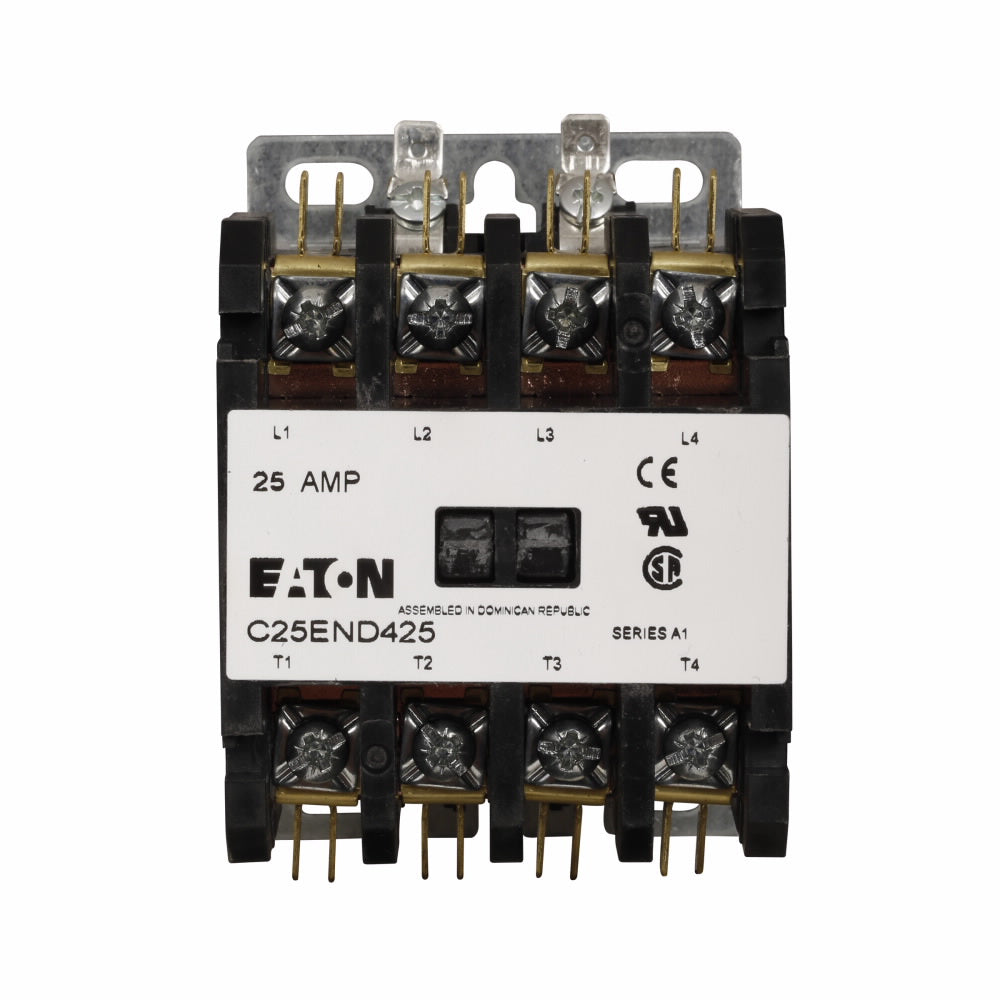

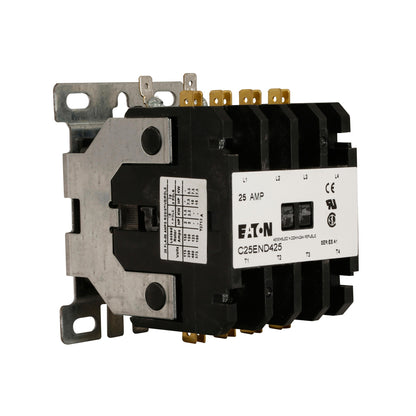

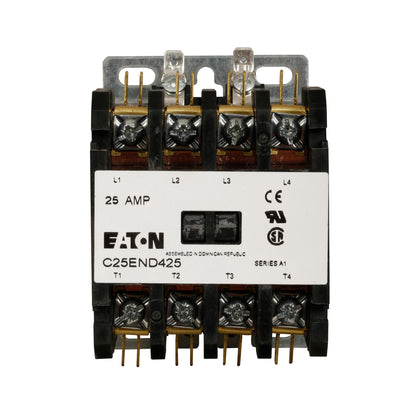

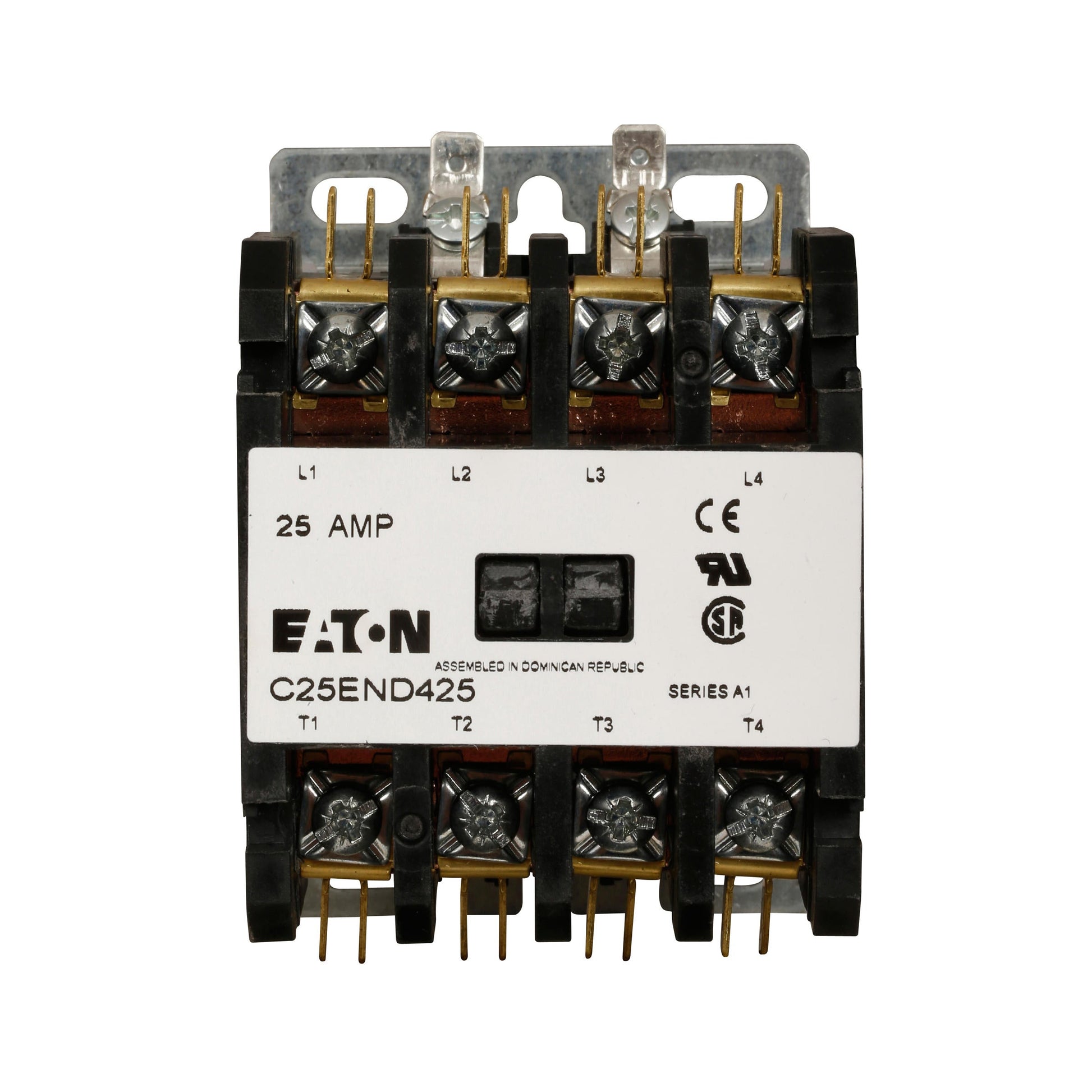

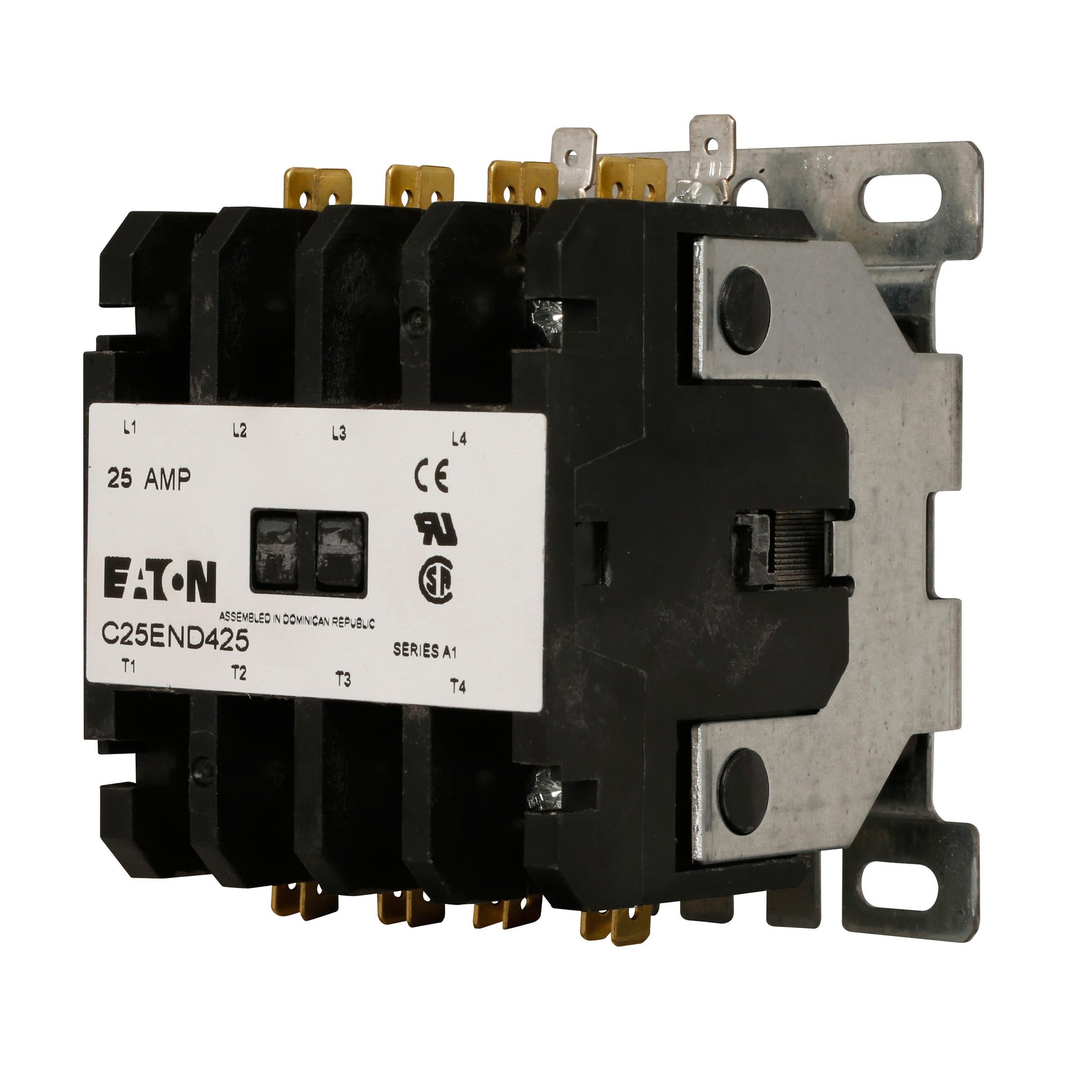

The Cutler Hammer C25END425A is a 3-phase 4-pole contactor with a 600V rating and 25A capacity. It features a 120V coil and is designed for non-reversing motor control applications. This contactor is part of the reliable C25 Series, suitable for industrial and commercial use.
Key Features:
✔ Part Number: C25END425A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: C25 Series
✔ Type: C25
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 4
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50 Hz
✔ UPC: 782113542324
✔ GTIN: 00782113542324
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.68 in x 3.75 in
✔ Weight: 1 lb
✔ Certification: CSA, RoHS, UL Listed
