Product Description:

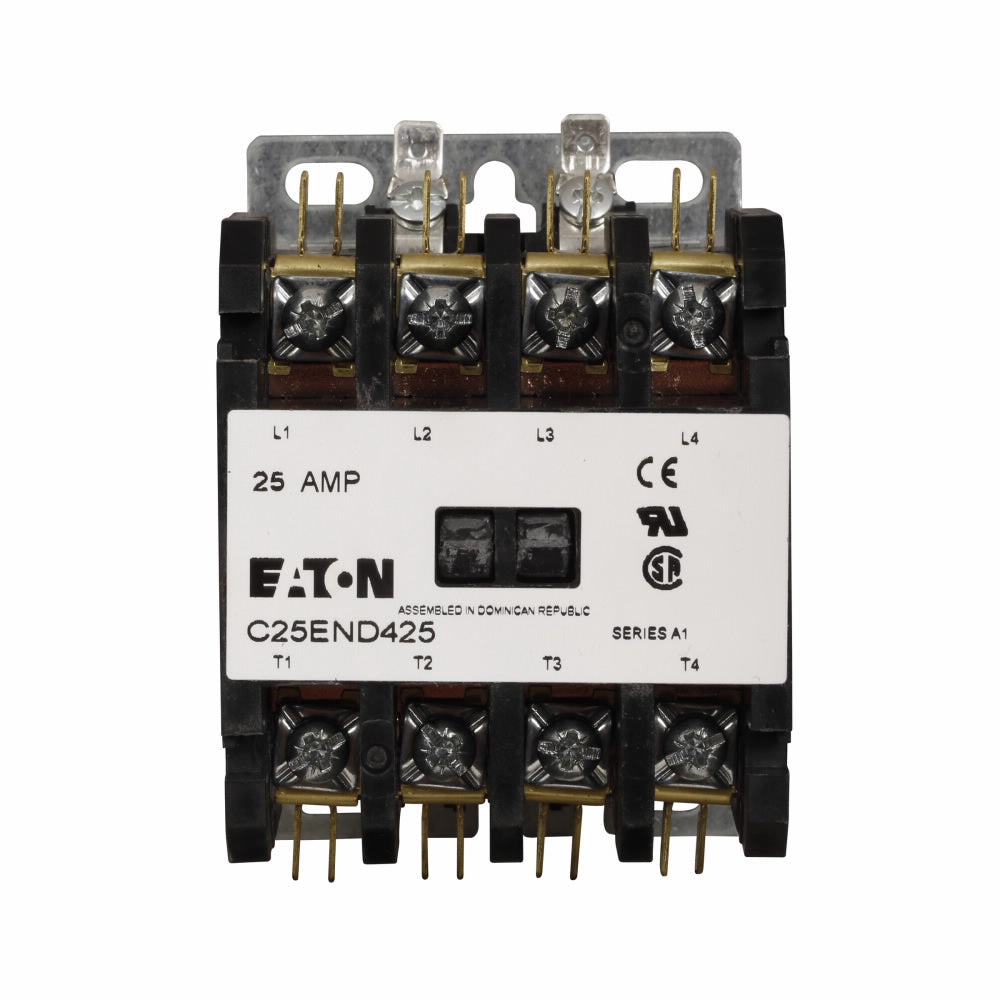

The Cutler Hammer C25END425B is a 3-phase 25A 4-pole contactor with a 600V rating. It features a 208V coil and is designed for motor control applications. This non-reversing contactor is part of the C25 Series and is suitable for both inductive and resistive loads.
Key Features:
✔ Part Number: C25END425B
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: C25 Series
✔ Type: C25
✔ Voltage: 600
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 4
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 240
✔ Full Load Amps: Full Load Amps-Inductive 25A Full Load Amps-Resistive 30A
✔ Coil Voltage Minimum: 208
✔ Frequency: 50 Hz
✔ UPC: 782113554068
✔ GTIN: 00782113554068
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 3.38in Height 3.5in Width 2.68in
✔ Weight: 1
✔ Certification: CSA Certified, UL Recognized, RoHS Compliant
