Product Description:

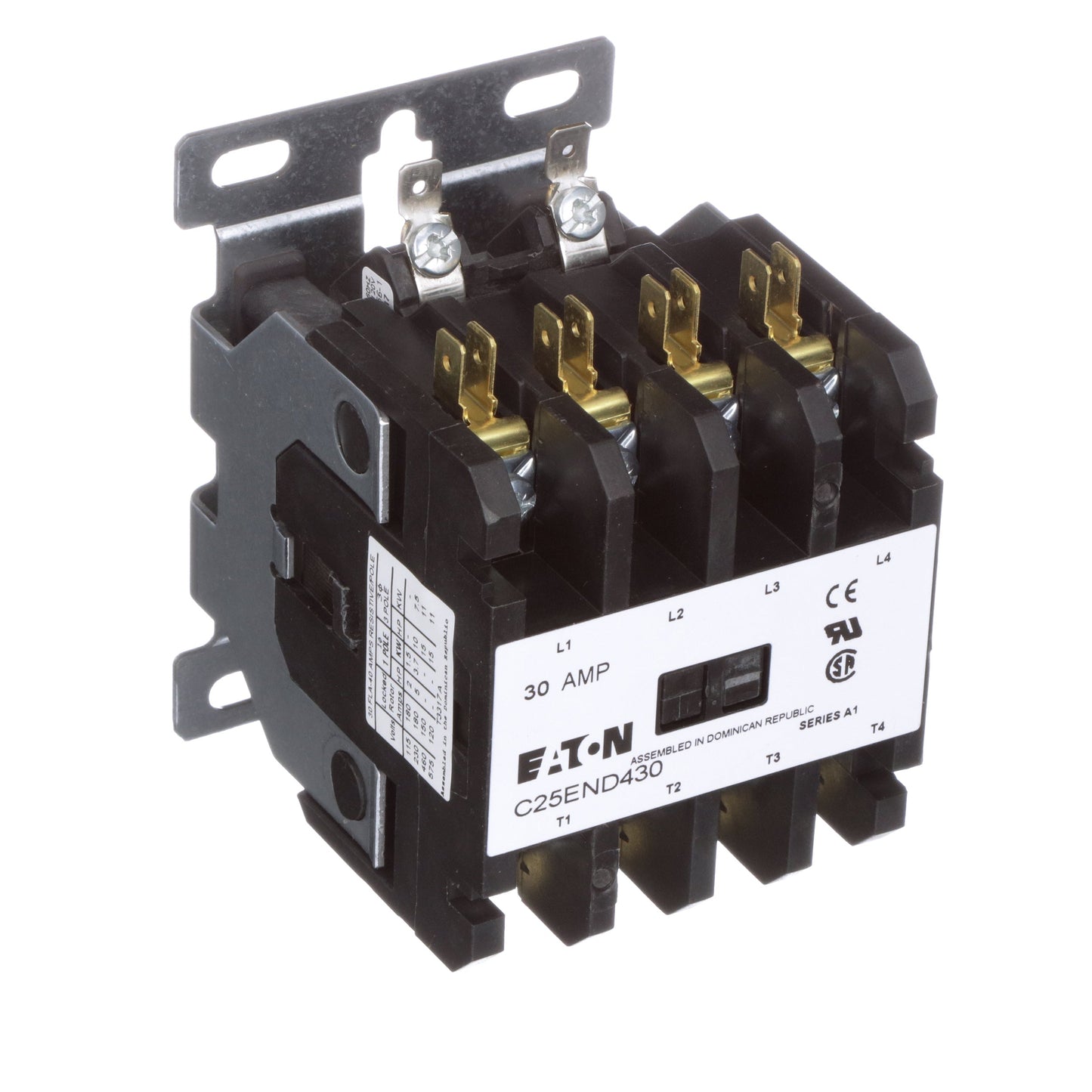

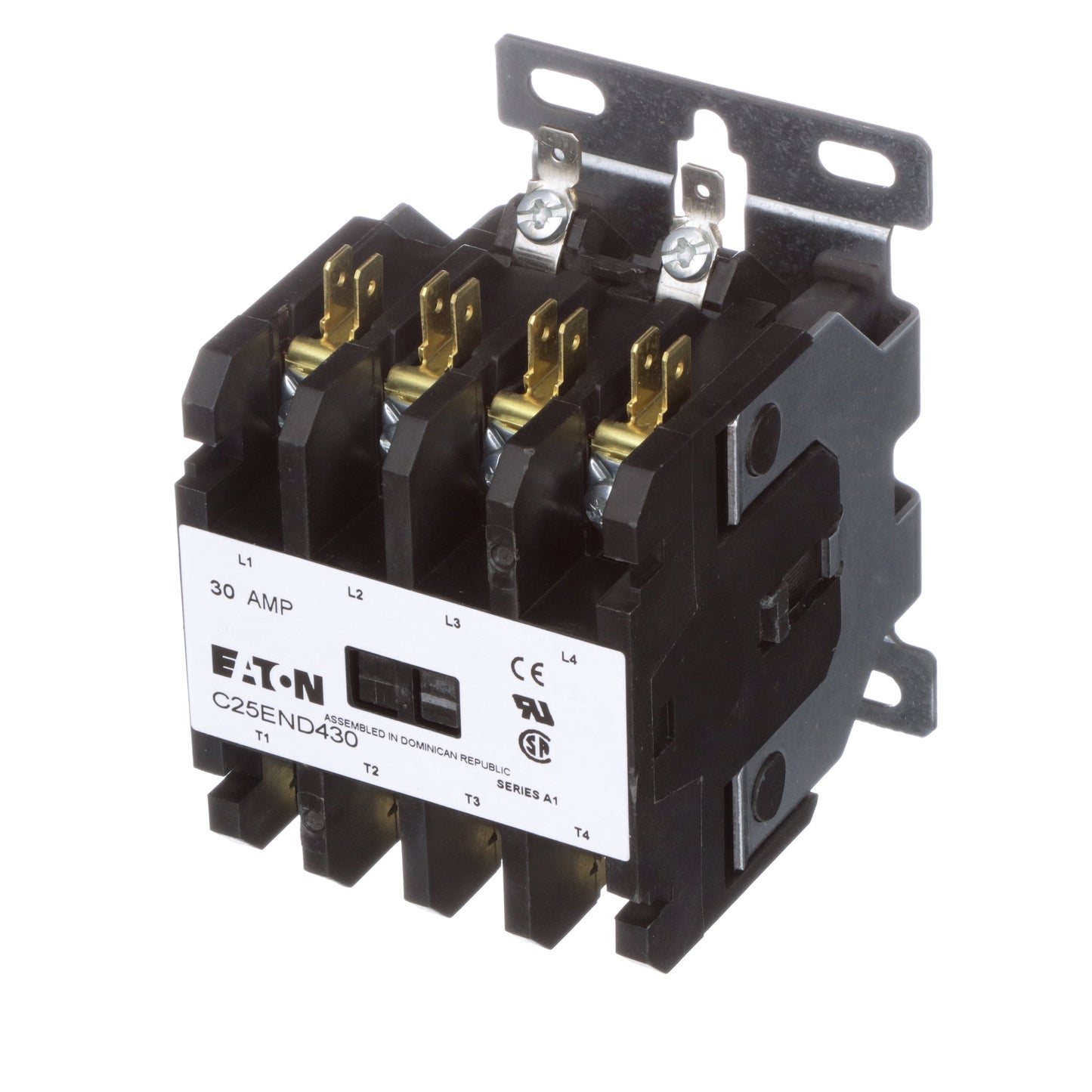

The Cutler Hammer C25END430A is a 3-phase 30A 4-pole contactor with a 600V rating and 120V coil. It is designed for motor control applications and features a non-reversing configuration. This contactor is suitable for both inductive and resistive loads, with a full load amp rating of 30A inductive and 40A resistive.
Key Features:
✔ Part Number: C25END430A
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: C25 Series
✔ Type: C25
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 4
✔ Configuration: Non-Reversing
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
✔ Coil Voltage Minimum: 120
✔ Frequency: 50 Hz
✔ UPC: 782113542331
✔ GTIN: 00782113542331
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.68 in x 3.75 in
✔ Weight: 1 lb
✔ Certification: CSA, UL Listed
