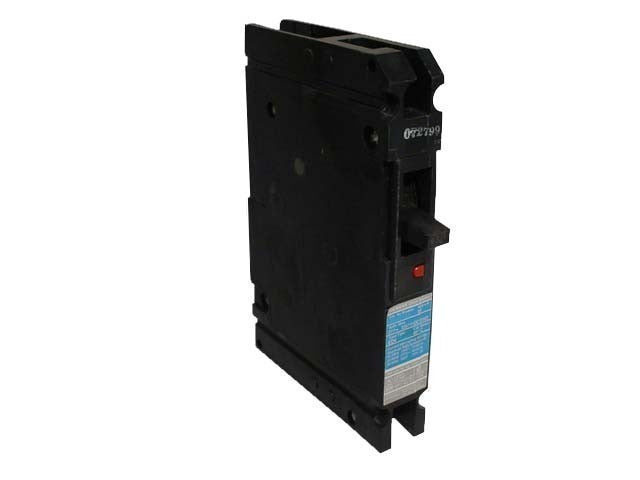

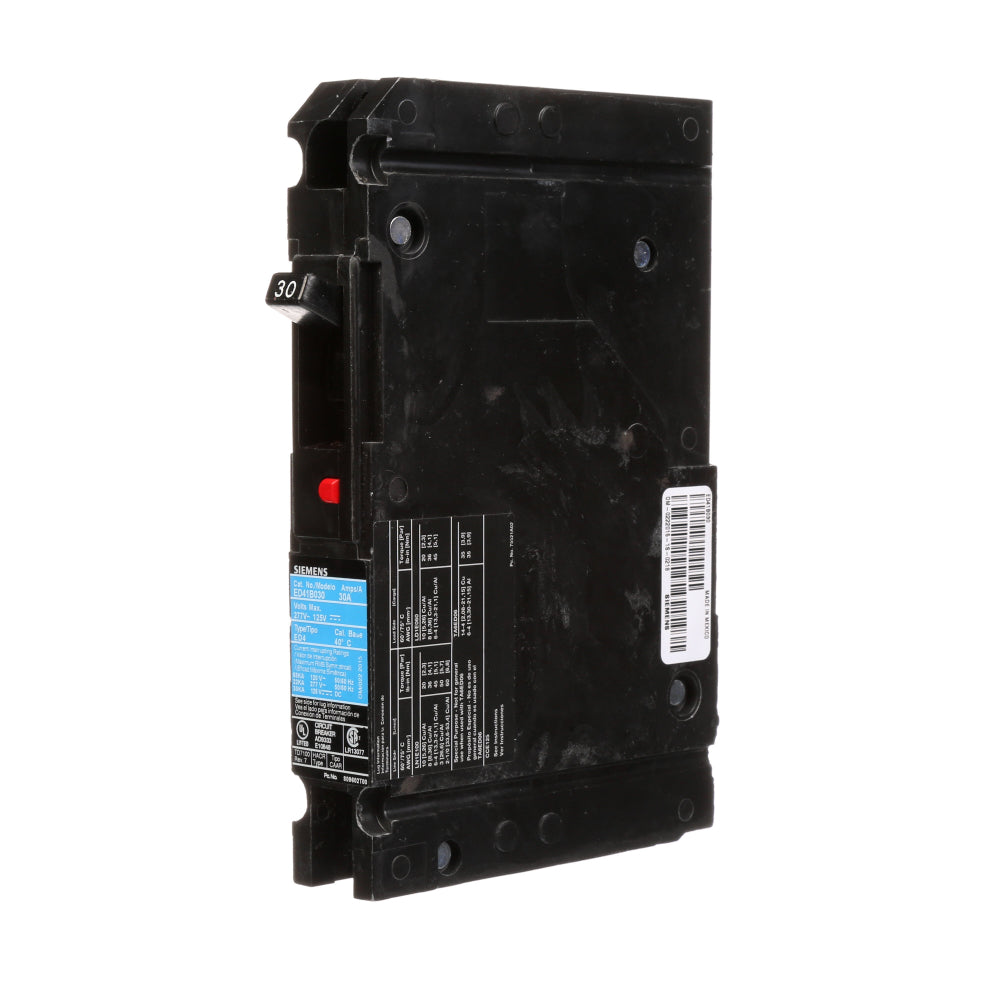

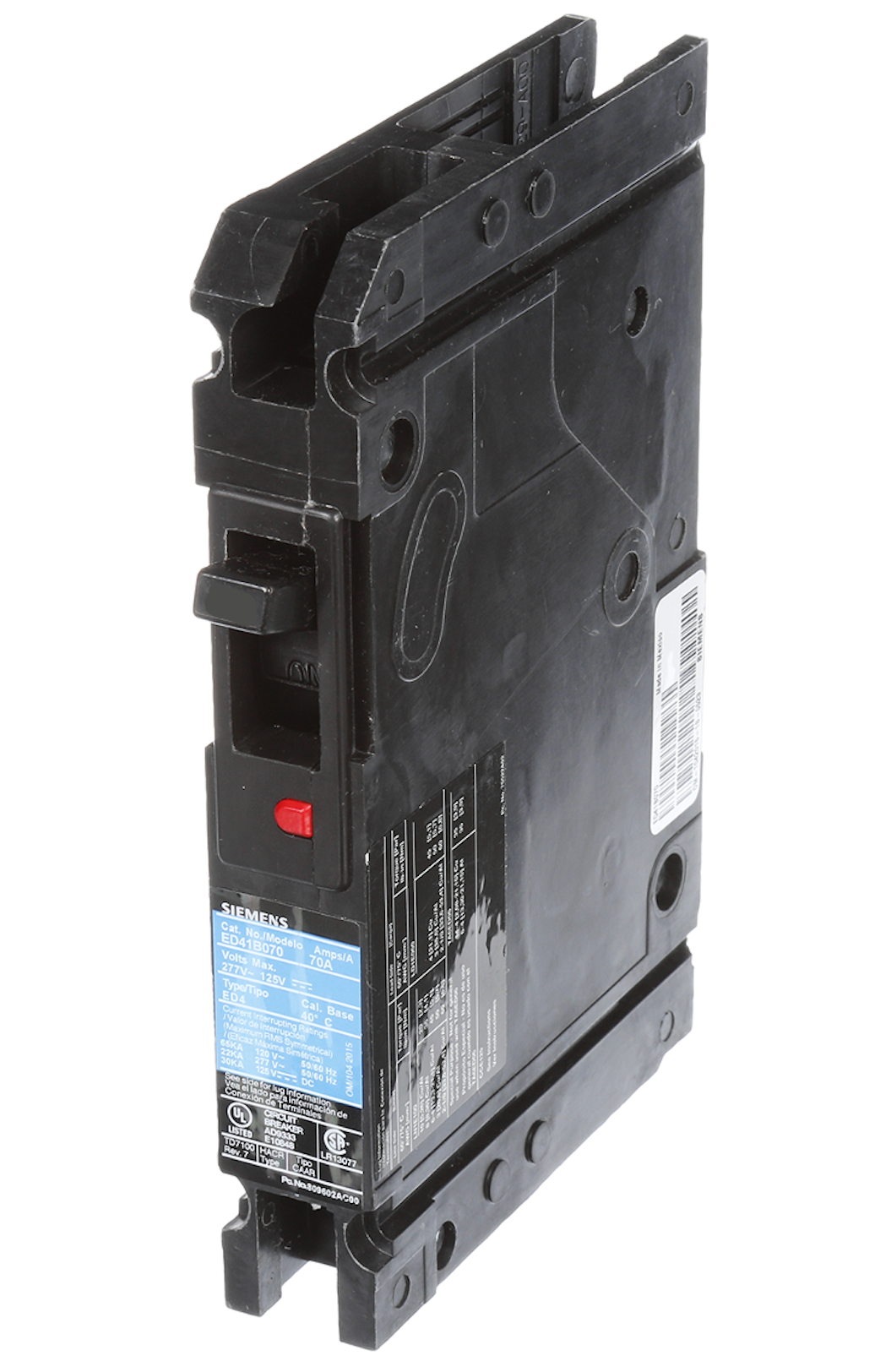

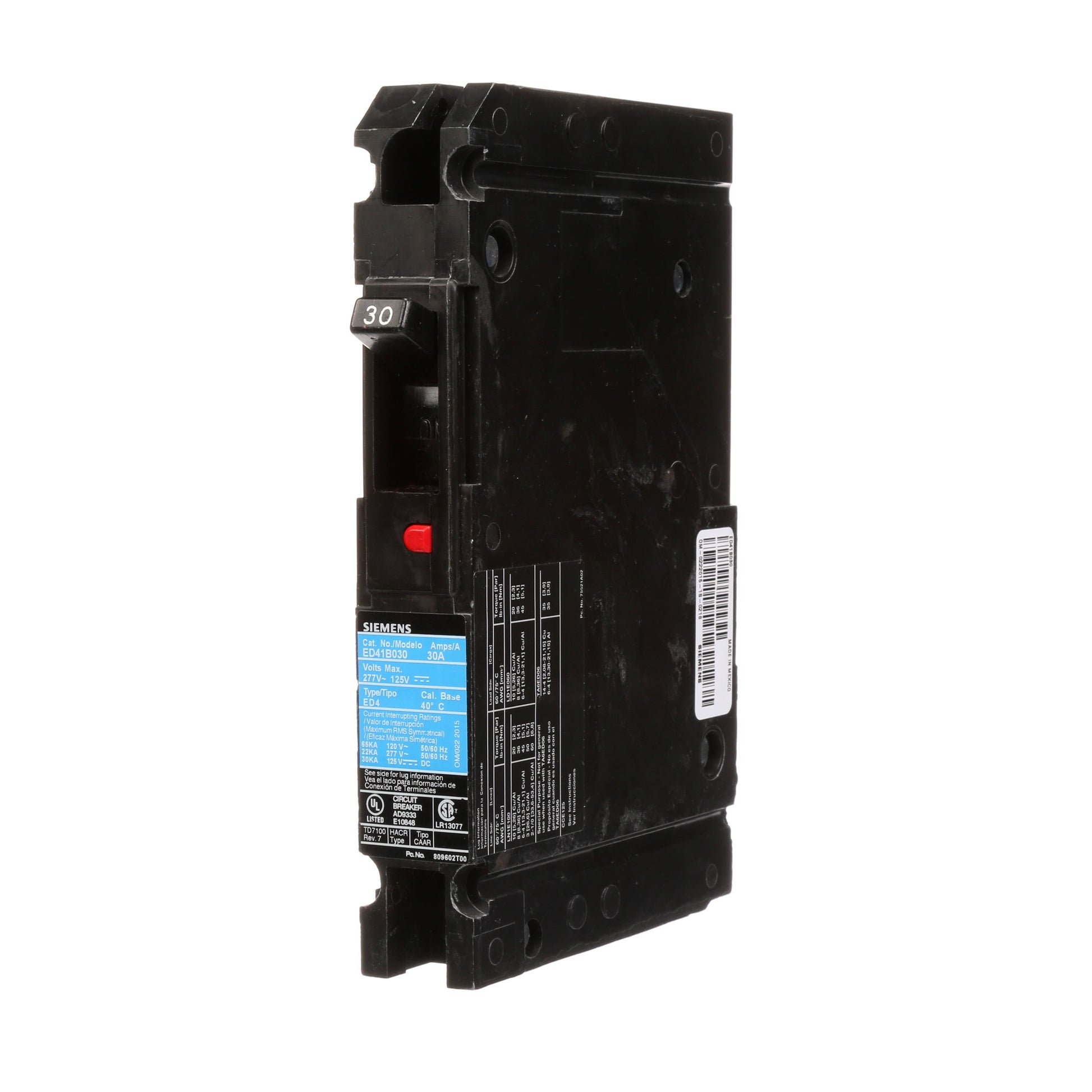

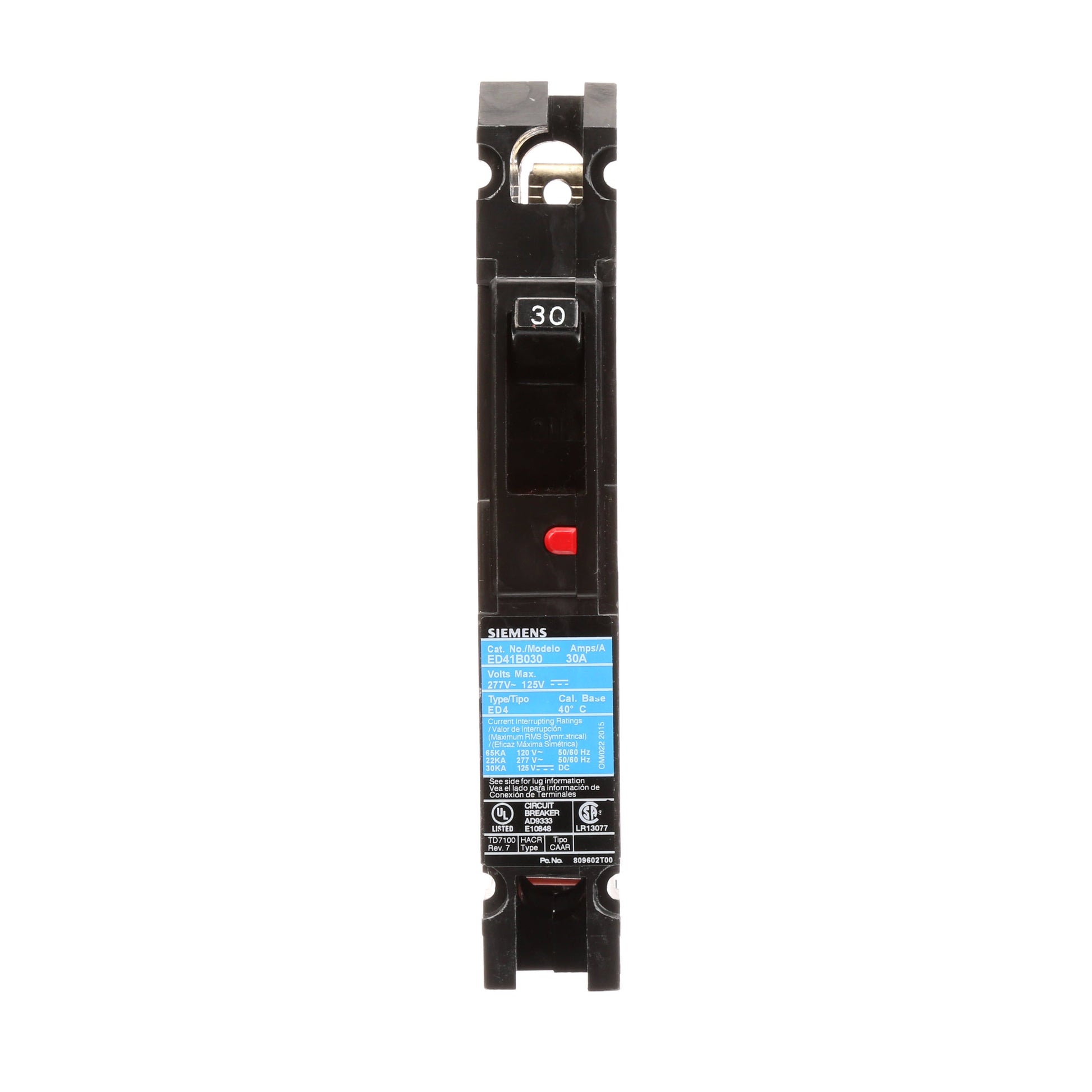

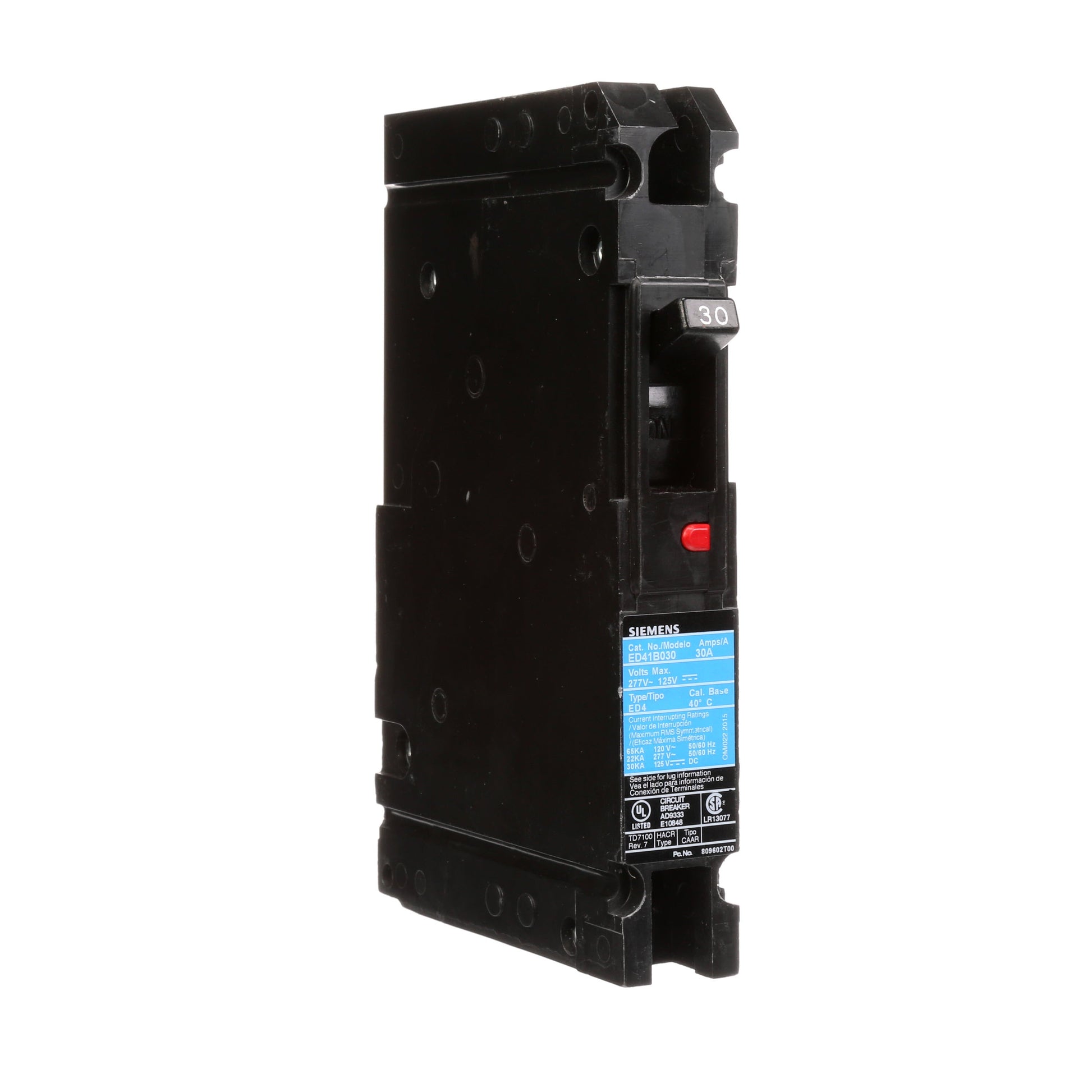

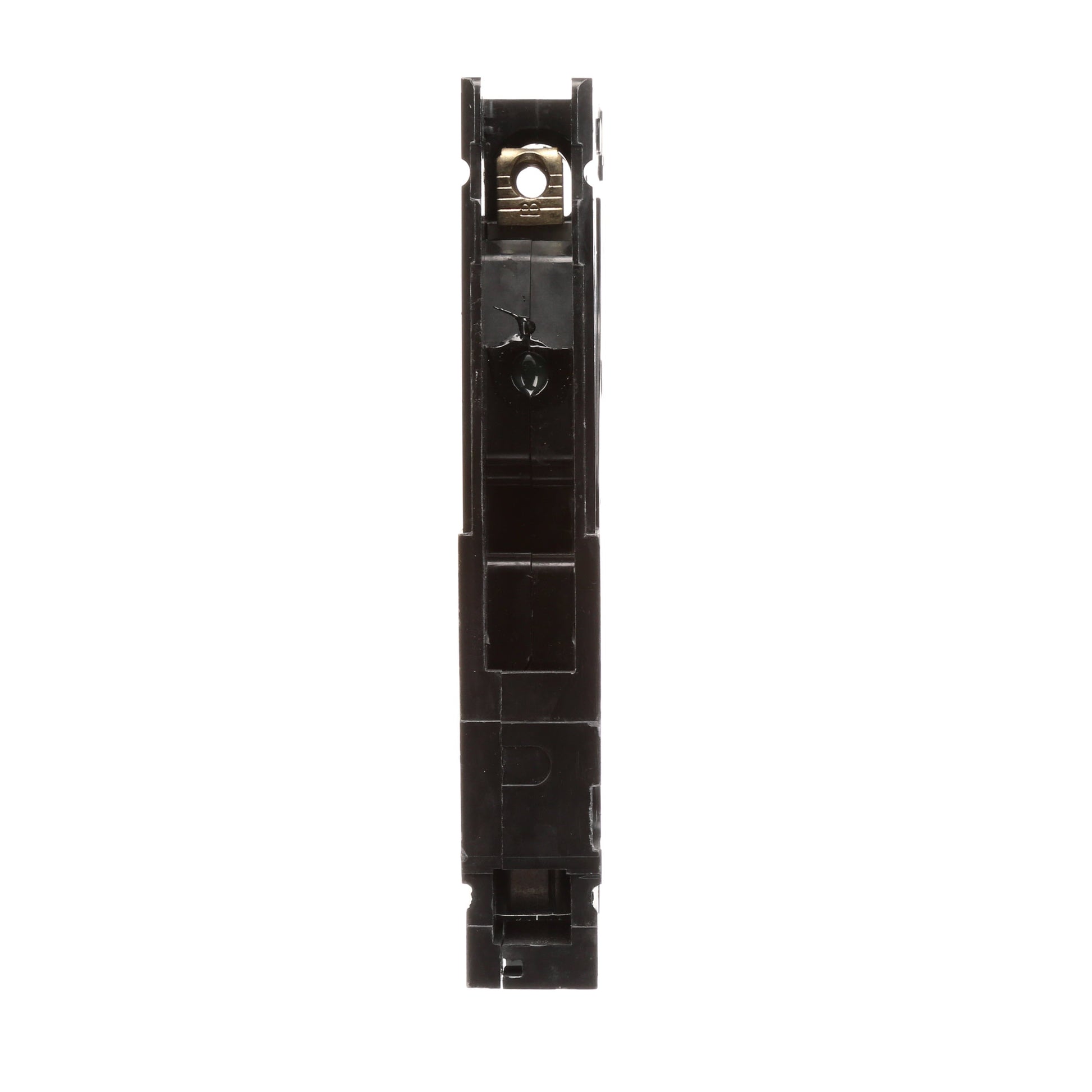

Siemens ED41B030 Circuit Breaker | 120V 30A 1P 65kA@120V Sentron Series

Product Description:
The Siemens ED41B030 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with a 120V, 30A rating and a 65kA@120V AIC rating. This breaker uses a Lug In Panelboard connection and offers Thermal Magnetic protection. It is compatible with SB Switchboards and Sentron Panelboards.

Key Features:
✔ Part Number: ED41B030
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 4 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209114
✔ GTIN: 00783643209114
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 6.34 in
✔ Weight: 1
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
✔ Wire Size: 10 To 4 AWG (Aluminum/Copper)
