Images are for reference only
Siemens

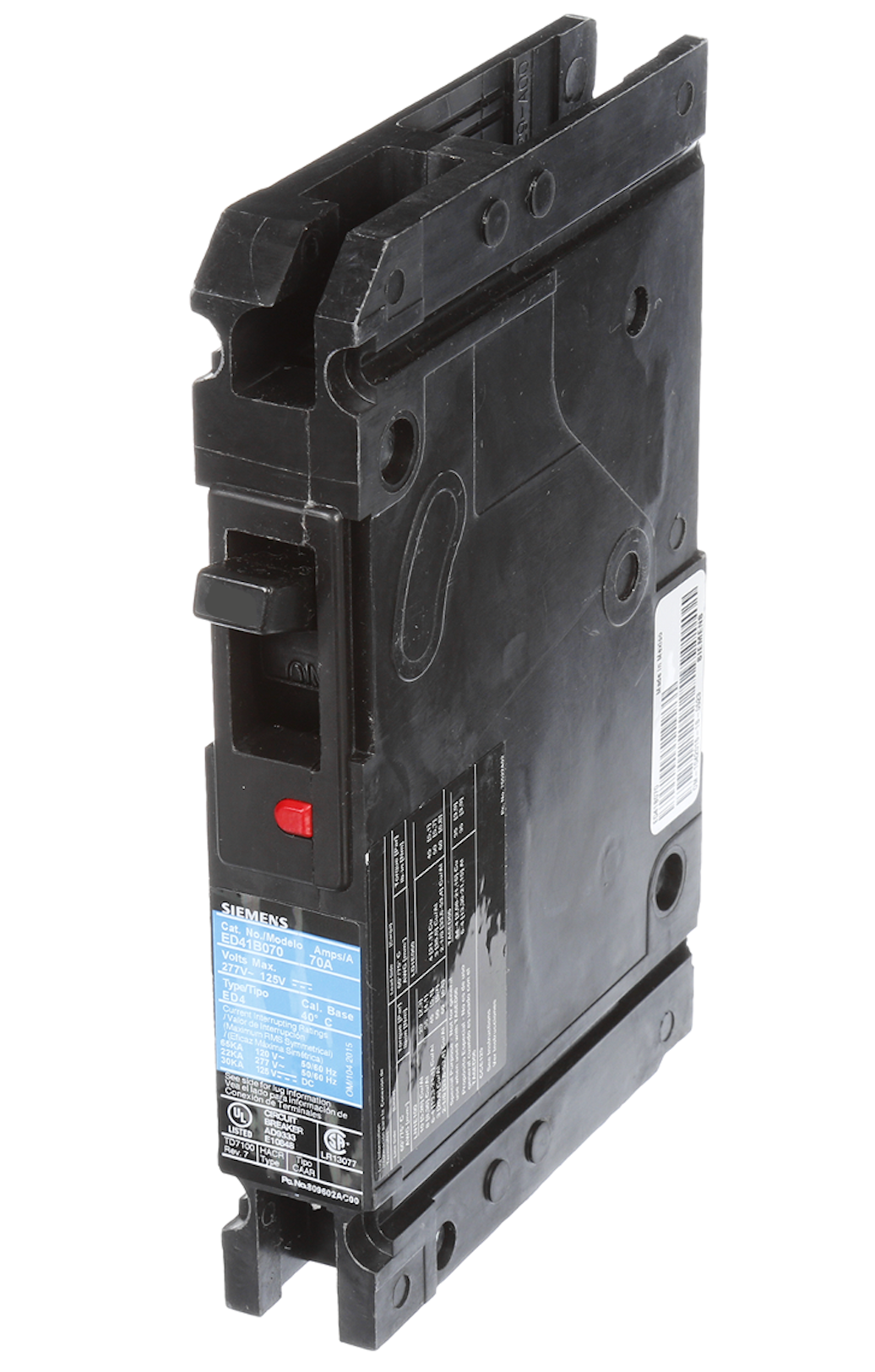

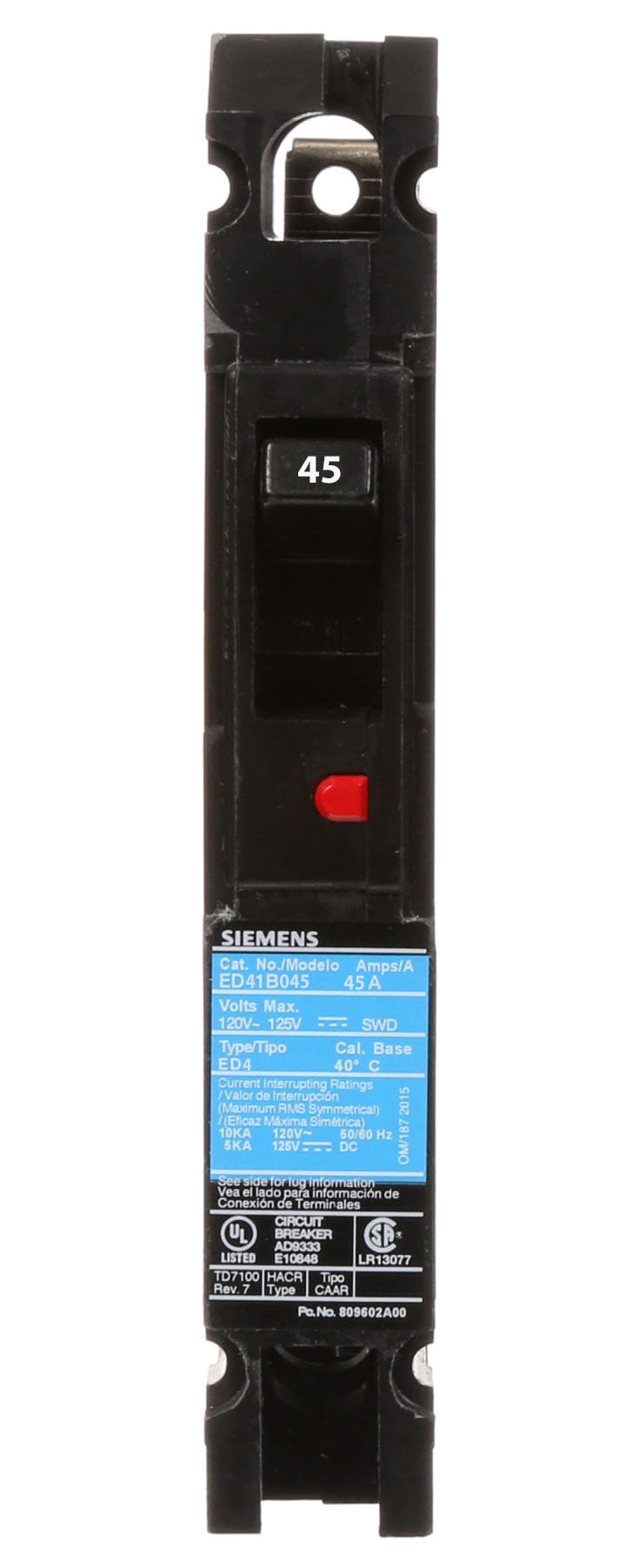

Siemens ED41B045 Circuit Breaker | 120V 45A 1P 65kA@120V Lug In Panelboard Sentron Series
Siemens ED41B045 Circuit Breaker | 120V 45A 1P 65kA@120V Lug In Panelboard Sentron Series
Price:
Sale
Sold out
Regular price
$81.92 USD
Regular price
$646.00 USD
Sale price
$81.92 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 5 left
Couldn't load pickup availability
Product Description:
The Siemens ED41B045 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with 120V voltage and 45A amperage rating, offering a 65kA@120V AIC rating. This breaker uses a Lug In Panelboard connection and provides Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: ED41B045
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 2 AWG (Al), 3 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209145
✔ GTIN: 00783643209145
✔ Country of Origin: Mexico
✔ Weight: 3
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
The Siemens ED41B045 is a Molded Case Circuit Breaker from the Sentron Series family. It features a 1-pole design with 120V voltage and 45A amperage rating, offering a 65kA@120V AIC rating. This breaker uses a Lug In Panelboard connection and provides Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: ED41B045
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 2 AWG (Al), 3 AWG (Cu) Max. Wire Size 1/0 AWG (Al), 3 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 783643209145
✔ GTIN: 00783643209145
✔ Country of Origin: Mexico
✔ Weight: 3
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: HACR Rated, UL Listed
