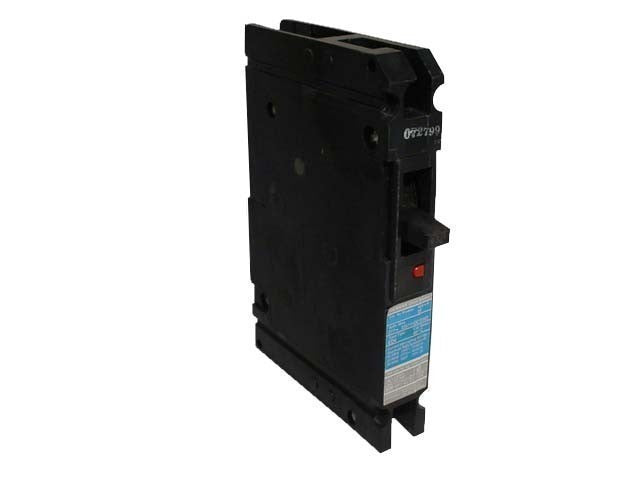

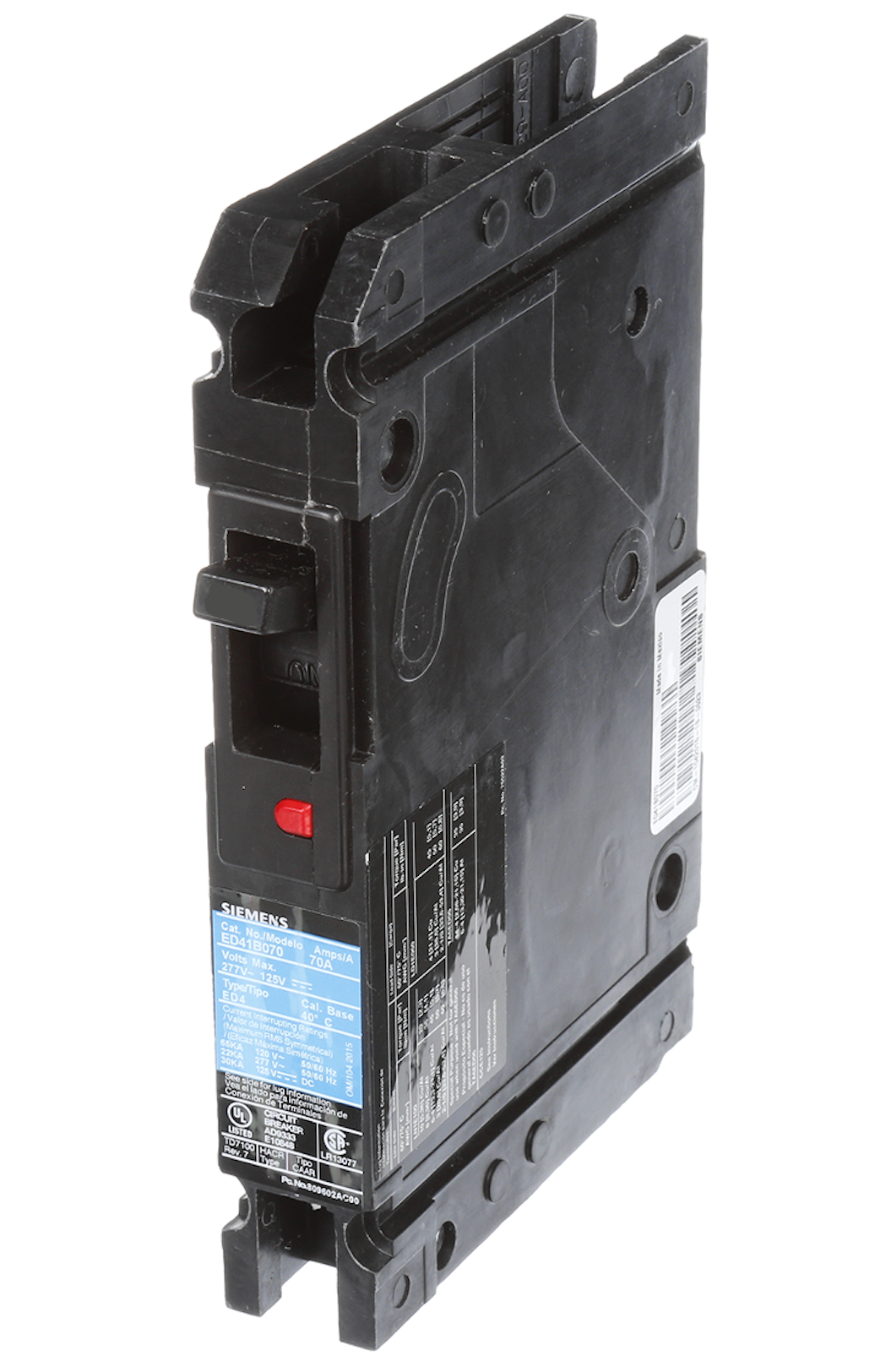

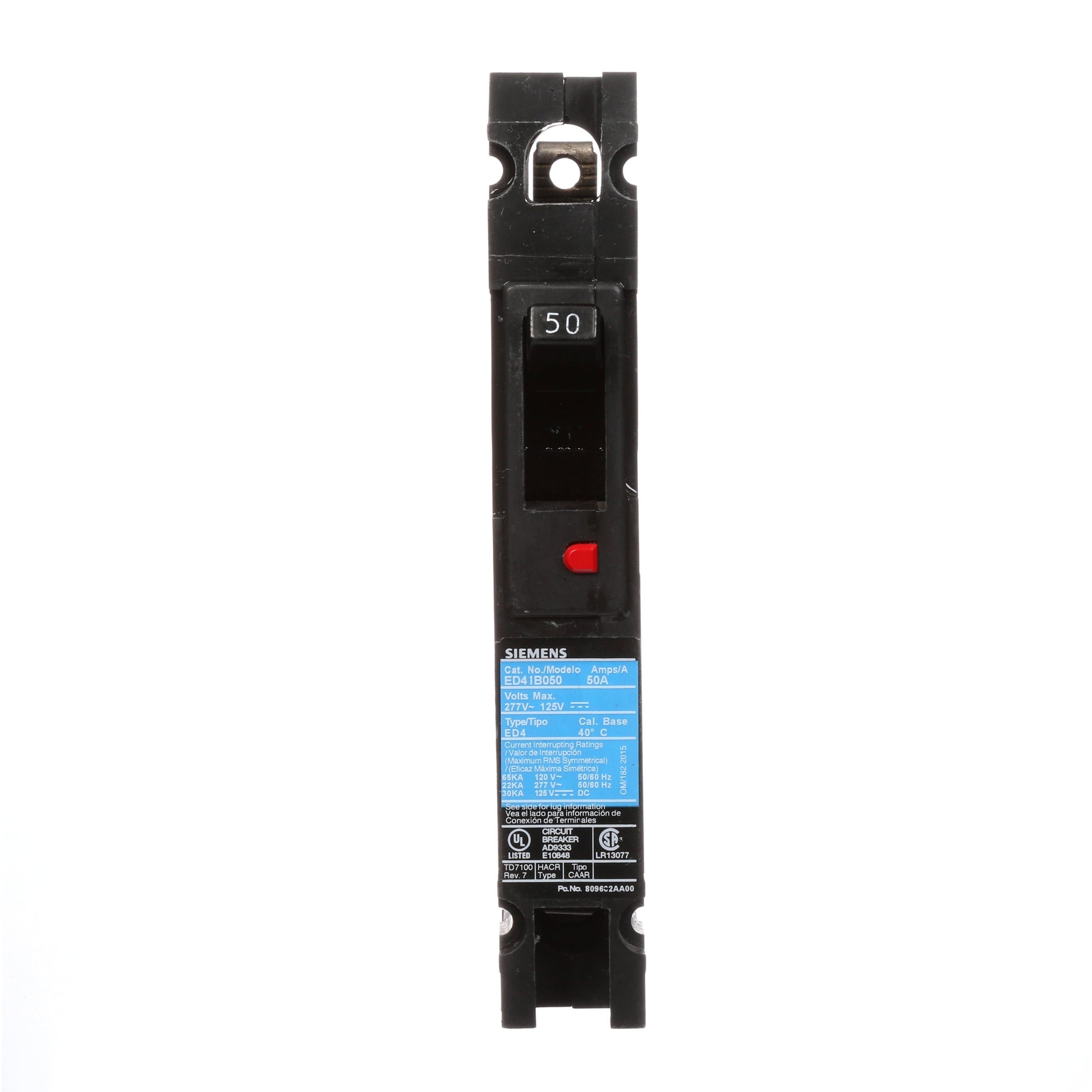

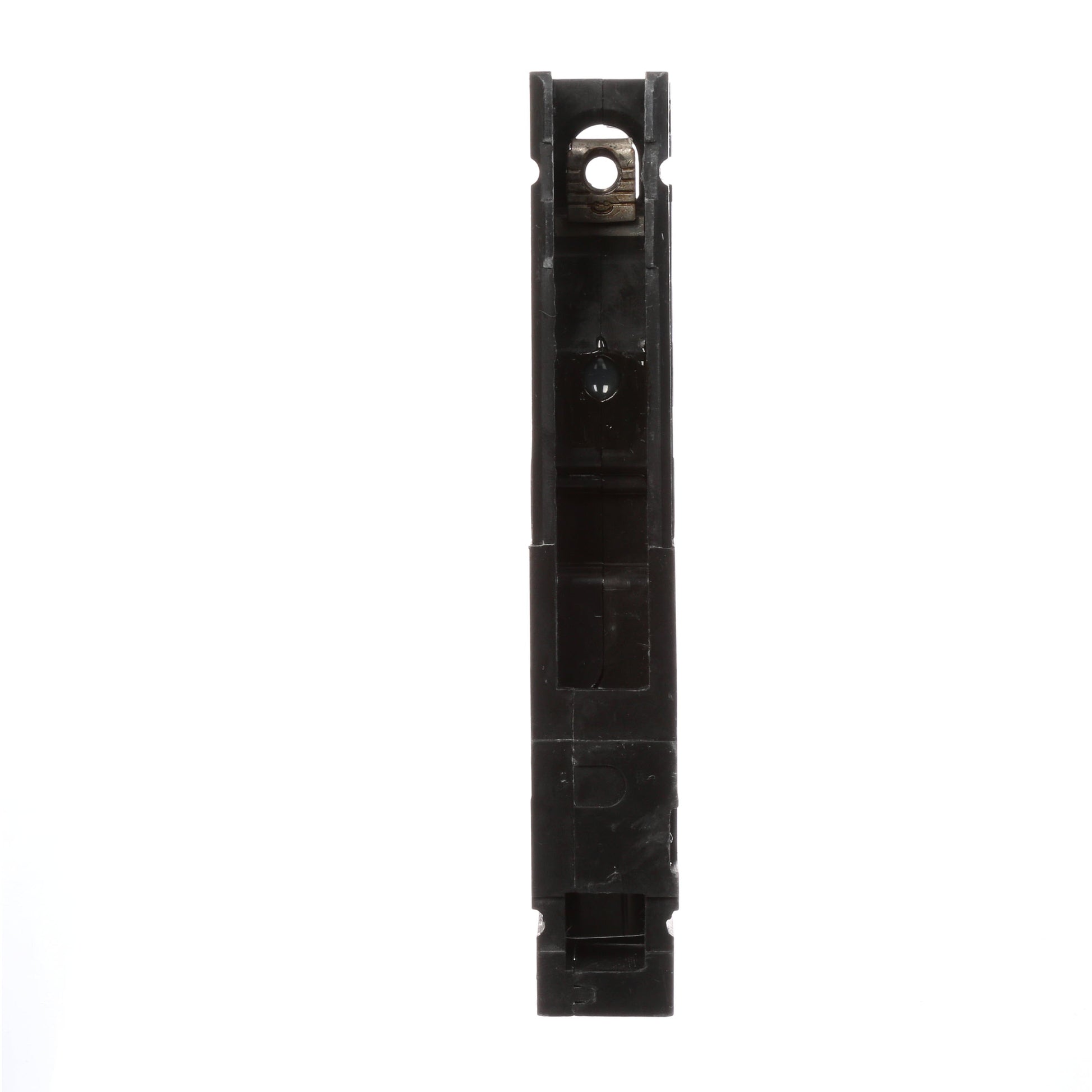

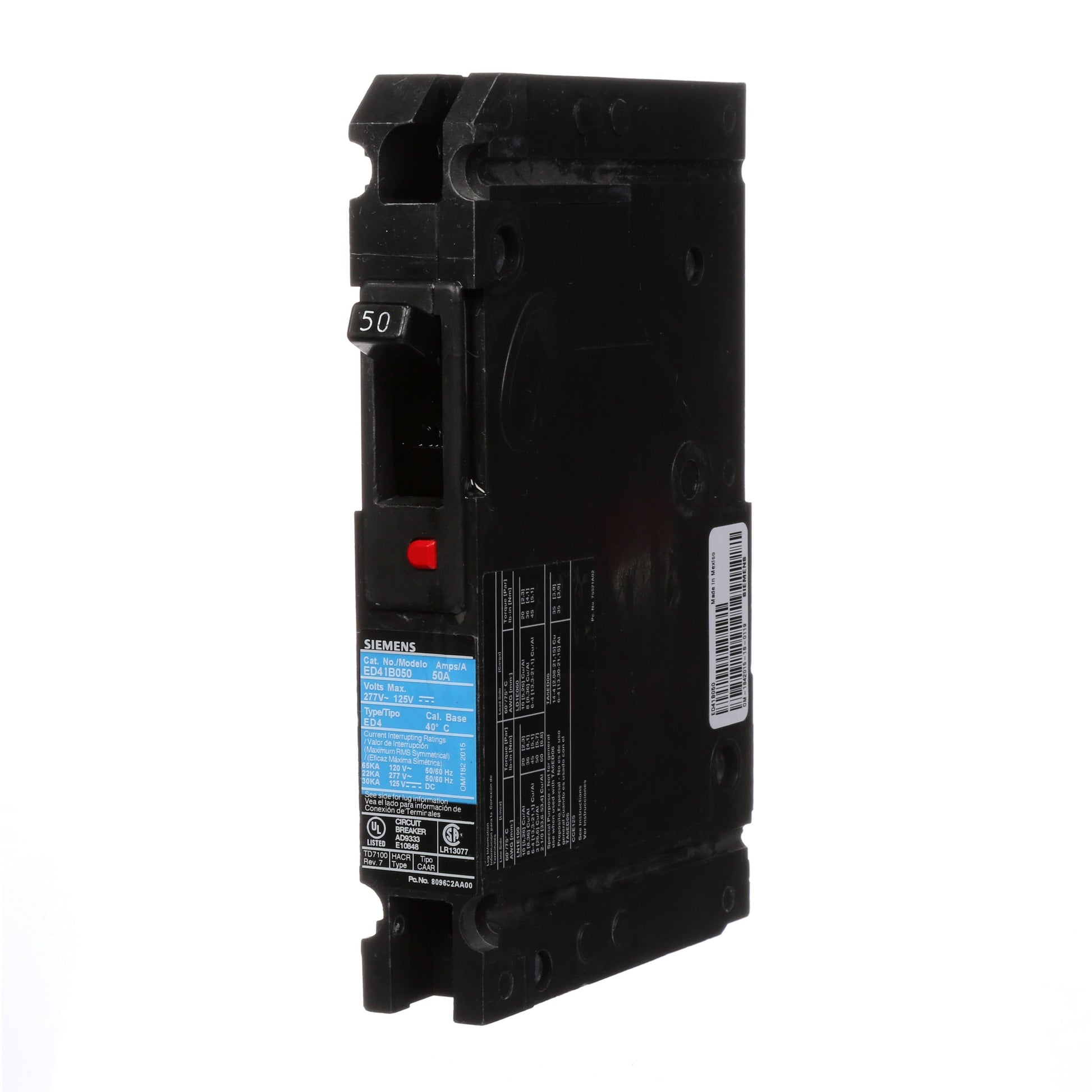

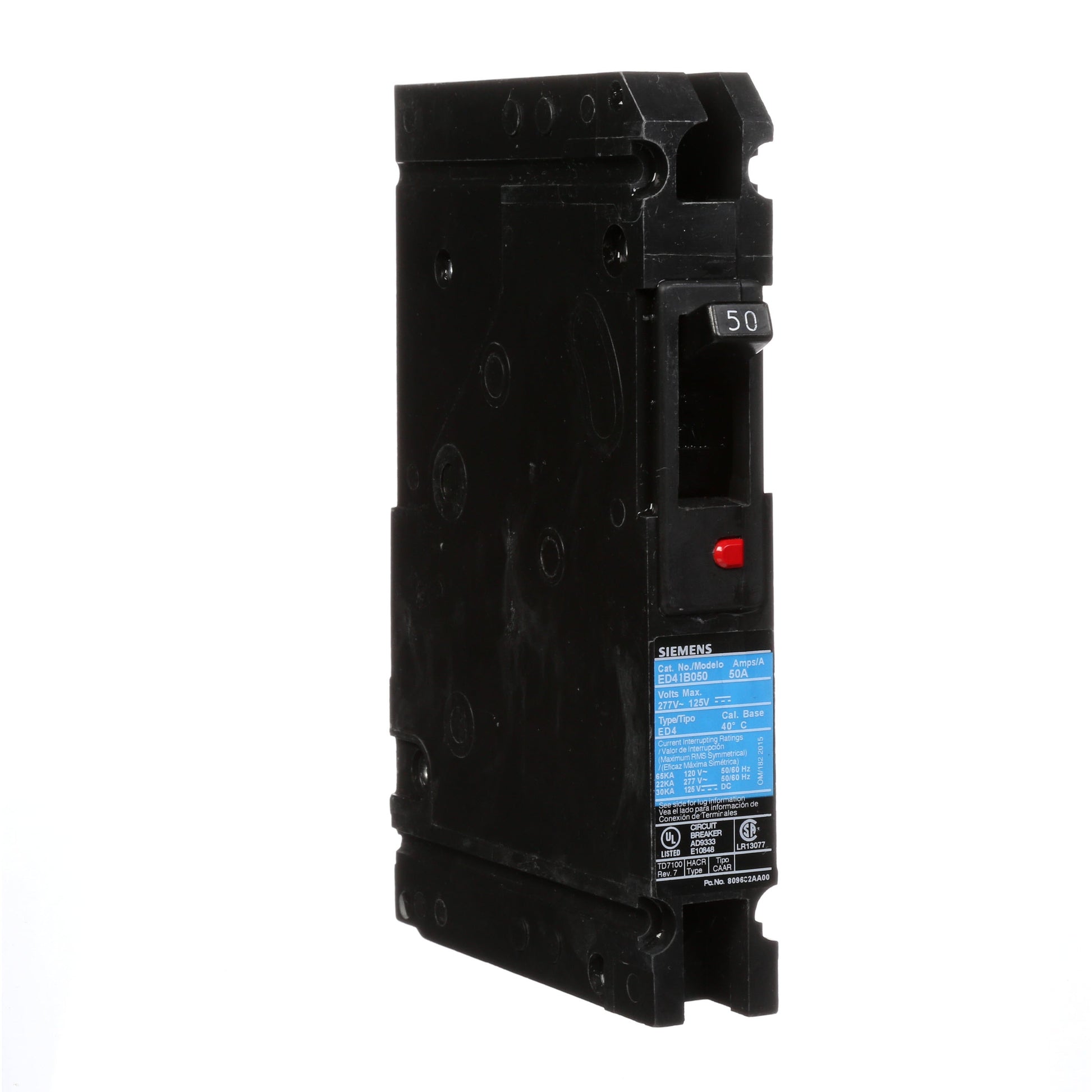

Siemens ED41B050 Circuit Breaker | 120V 50A 1P 65kA@120V Lug In Panelboard Sentron Series

Product Description:
The Siemens ED41B050 is a Molded Case Circuit Breaker from the Sentron Series family. It is a 1-pole, 50 amp breaker rated for 120V with an interrupting capacity of 65kA. This thermal magnetic circuit breaker is designed for use with lug-in panelboards and is UL Listed and IEC Certified.

Key Features:
✔ Part Number: ED41B050
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: ED
✔ Voltage: 120
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@120V
✔ Connection: Lug In Panelboard
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 125A/ED
✔ MCM Size: Min. Wire Size 6 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: Any
✔ UPC: 783643209152
✔ GTIN: 00783643209152
✔ Country of Origin: Mexico
✔ Dimensions: 1 in x 6.34 in
✔ Weight: 3
✔ Panel Type: SB Switchboards, Sentron Panelboards
✔ Standards: IEC Certified, UL Listed
✔ Certification: IEC Certified, UL Listed
