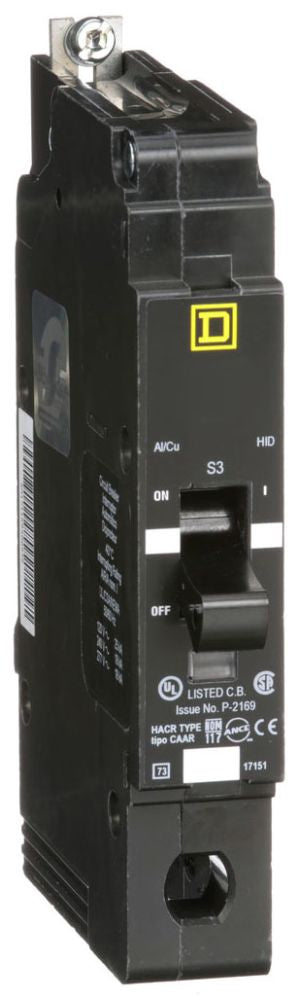

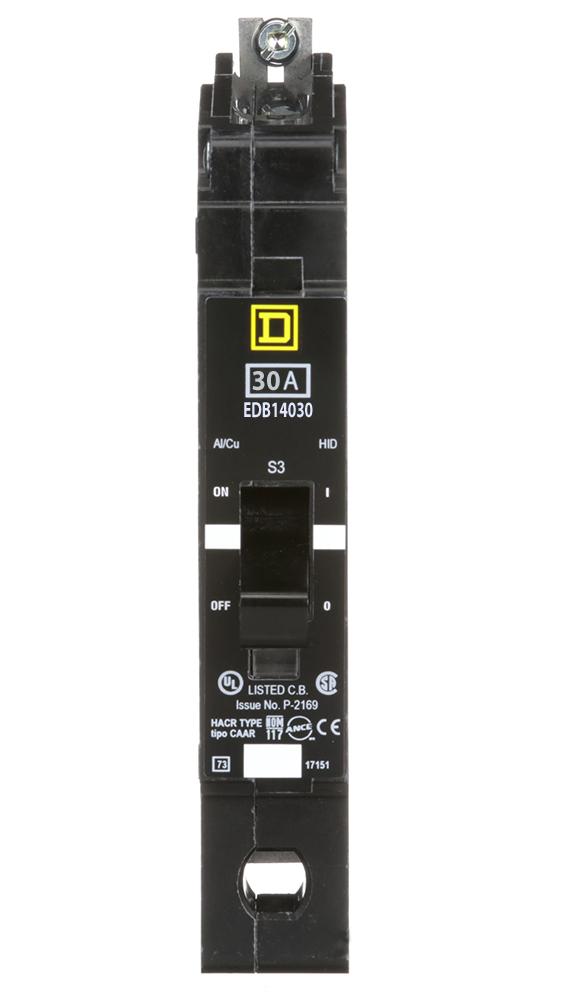

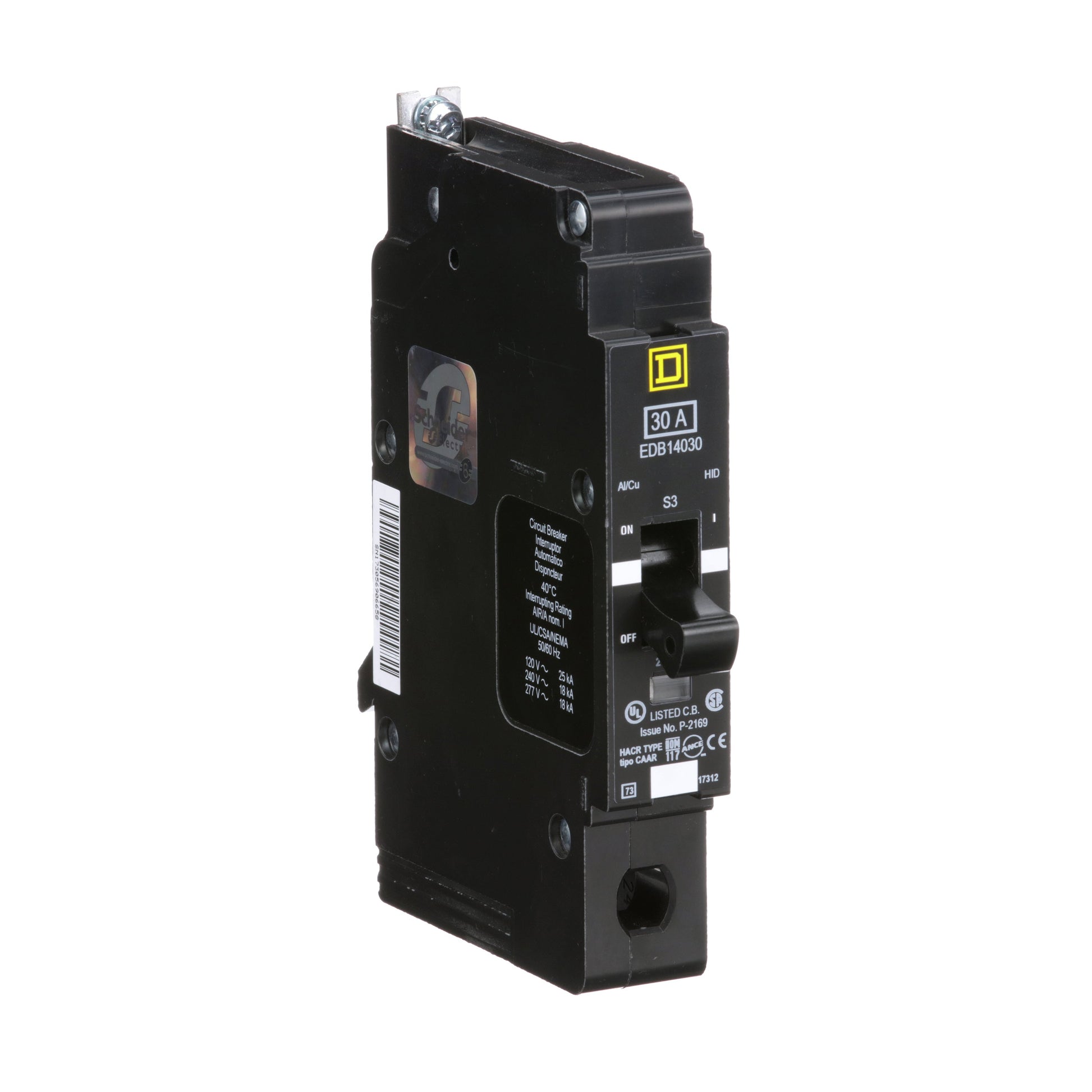

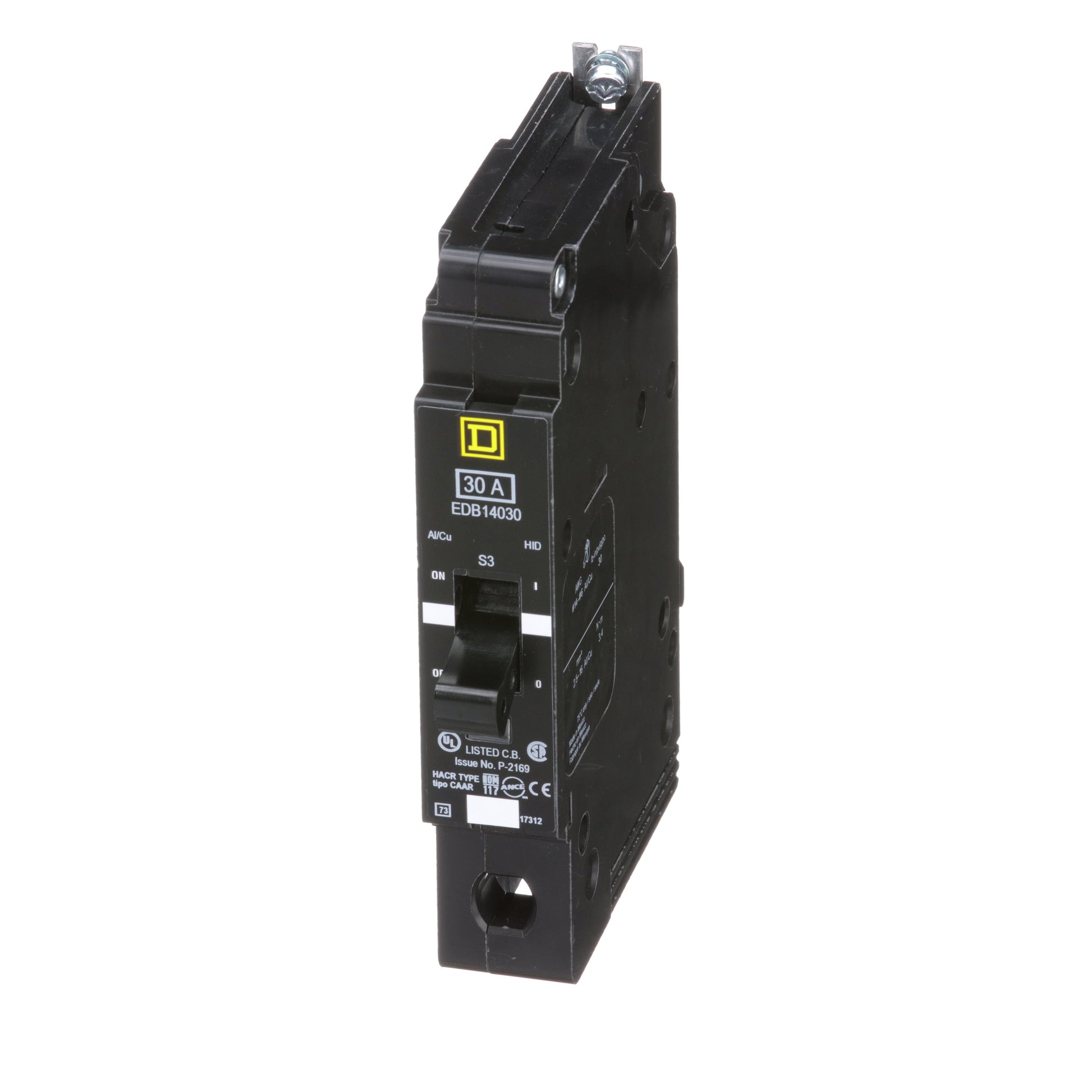

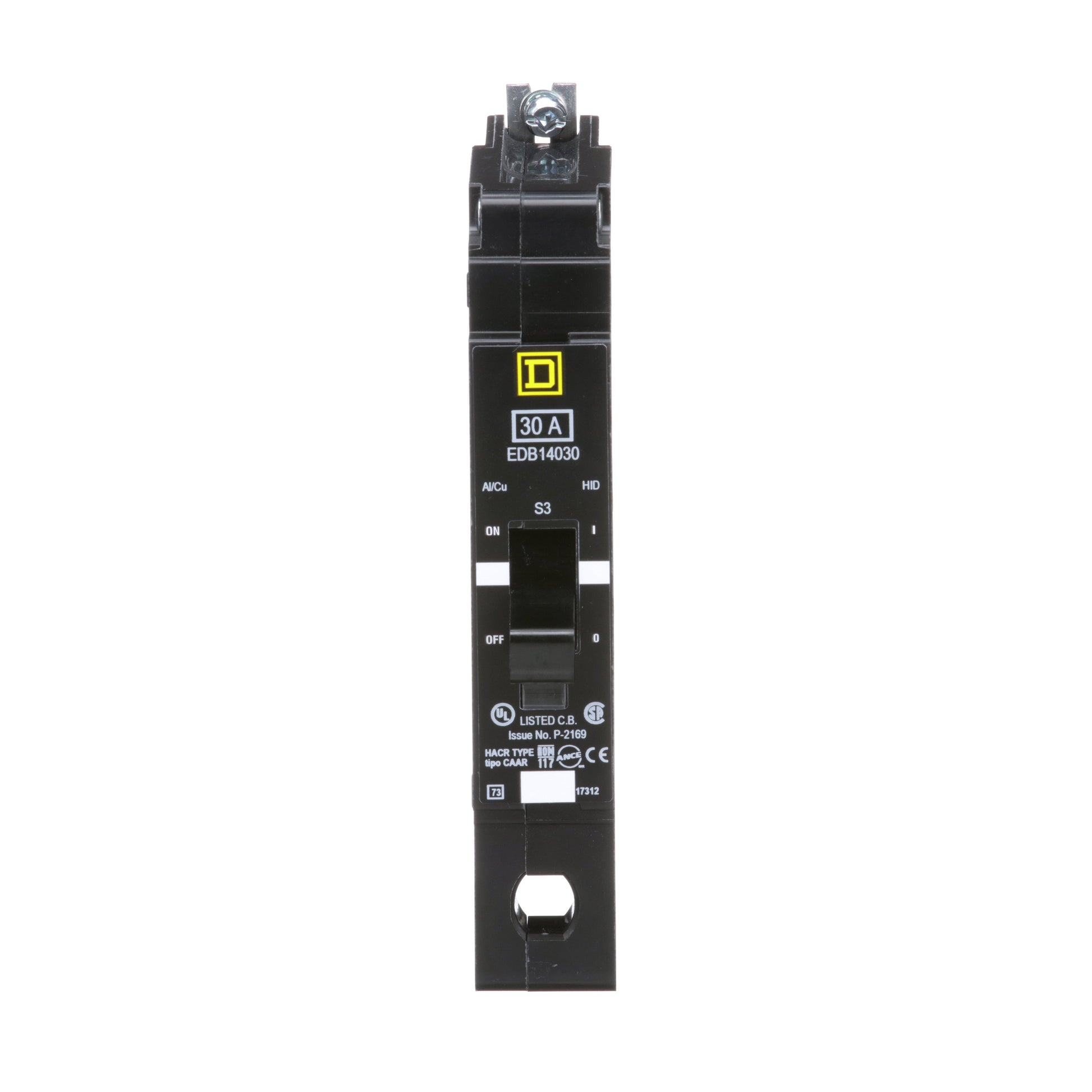

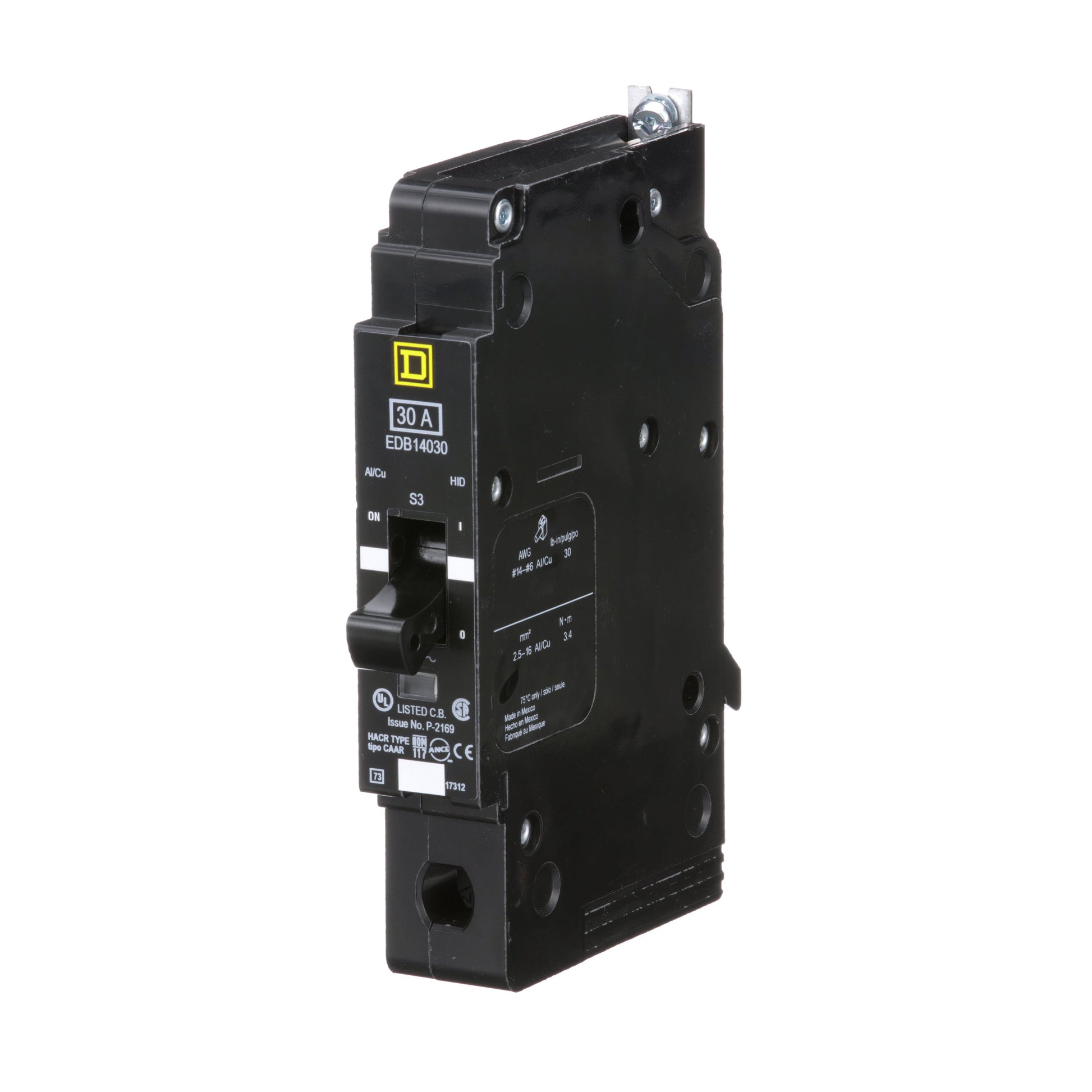

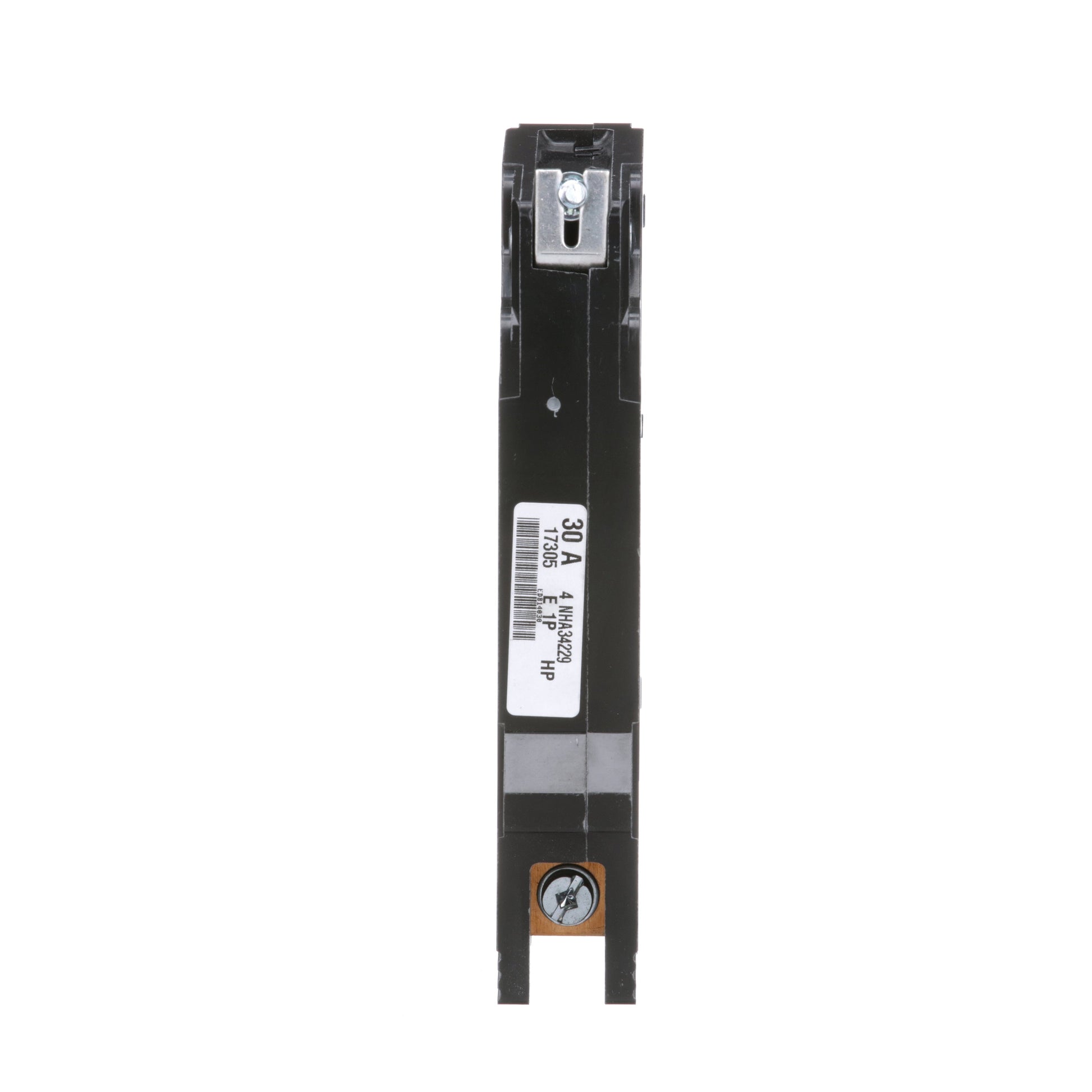

Square D EDB14030 Circuit Breaker | 277V 30A 1P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB14030 is a Molded Case Circuit Breaker from the EDB Series. It is a 1 pole, 30 amp breaker rated for 277 volts with an AIC rating of 18kA@480V. This model features thermal magnetic protection and a bolt-on connection for secure installation.

Key Features:
✔ Part Number: EDB14030
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 277
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901878933
✔ GTIN: 00785901878933
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in x 5.66 in
✔ Weight: 1 lb
✔ Panel Type: NF panelboard
✔ Standards: cULus, IEC
✔ Certification: cULus, IEC
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
