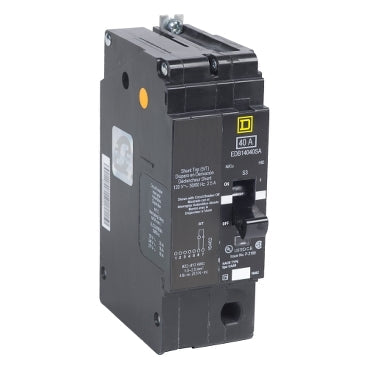

Square D EDB14040SA Circuit Breaker | 277V 40A 1P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB14040SA is a Molded Case Circuit Breaker from the EDB Series family.
It is a 1 pole, 277 Volt, 40 amp rated breaker with an AIC rating of 18kA@480V and uses a bolt-on connection.
This model includes thermal magnetic protection and comes complete with a 120V shunt trip.
It is designed for use in Square D NF Panelboards and meets cULus and IEC standards.

Key Features:
✔ Part Number: EDB14040SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 277
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 785901932765
✔ GTIN: 00785901932765
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in x 5.66 in
✔ Weight: 1
✔ Panel Type: Square D NF Panelboards
✔ Standards: cULus, IEC
✔ Certification: cULus, IEC
