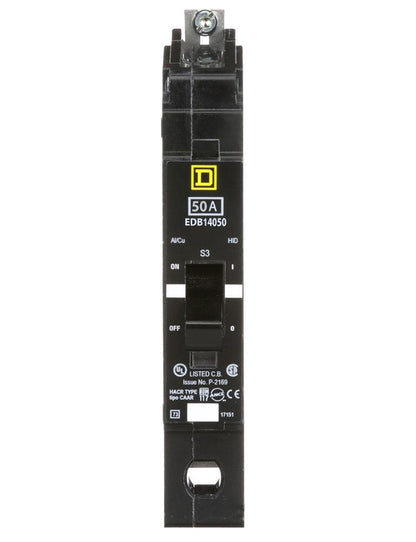

Square D EDB14050 Circuit Breaker | 277V 50A 1P 18kA@480V Bolt-on EDB Series

Product Description:

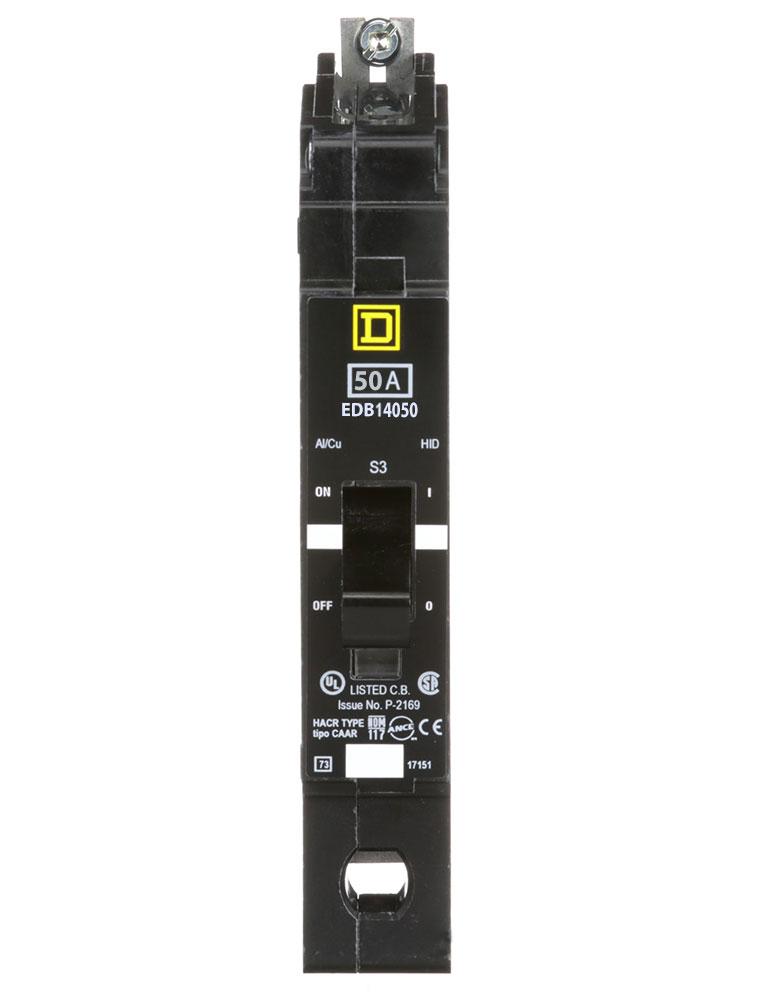

The Square D EDB14050 is a 1-pole molded case circuit breaker rated for 50 amps and 277 volts. It features thermal magnetic protection and a bolt-on connection type for secure installation. This circuit breaker is part of the EDB Series and is designed for use in NF panelboards. It meets industry standards with certifications including cULus and IEC.

Key Features:
✔ Part Number: EDB14050
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 277
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/EDB
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 785901311003
✔ GTIN: 00785901311003
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in x 5.66 in
✔ Weight: 1
✔ Panel Type: NF panelboard
✔ Standards: cULus, IEC
✔ Certification: cULus, IEC
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
