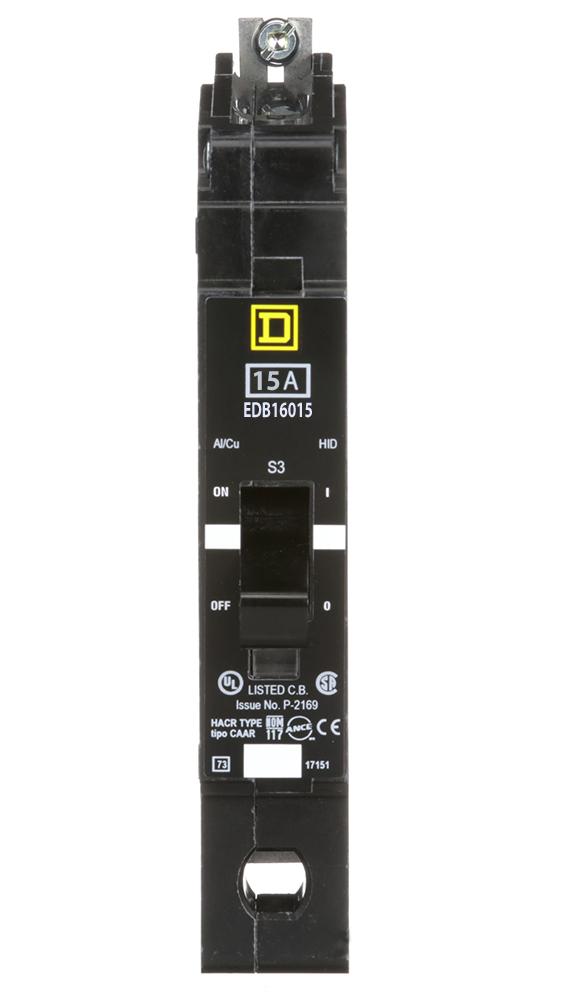

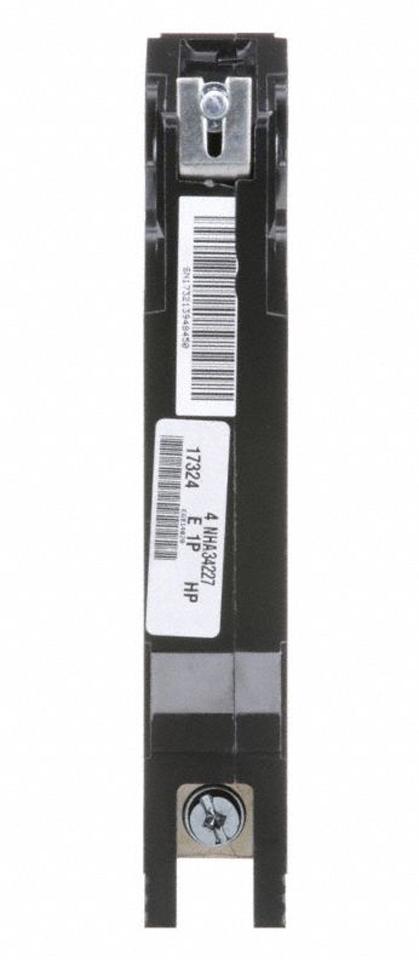

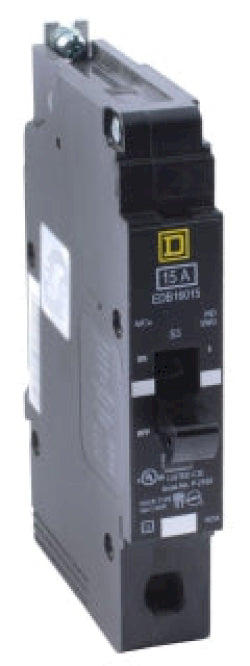

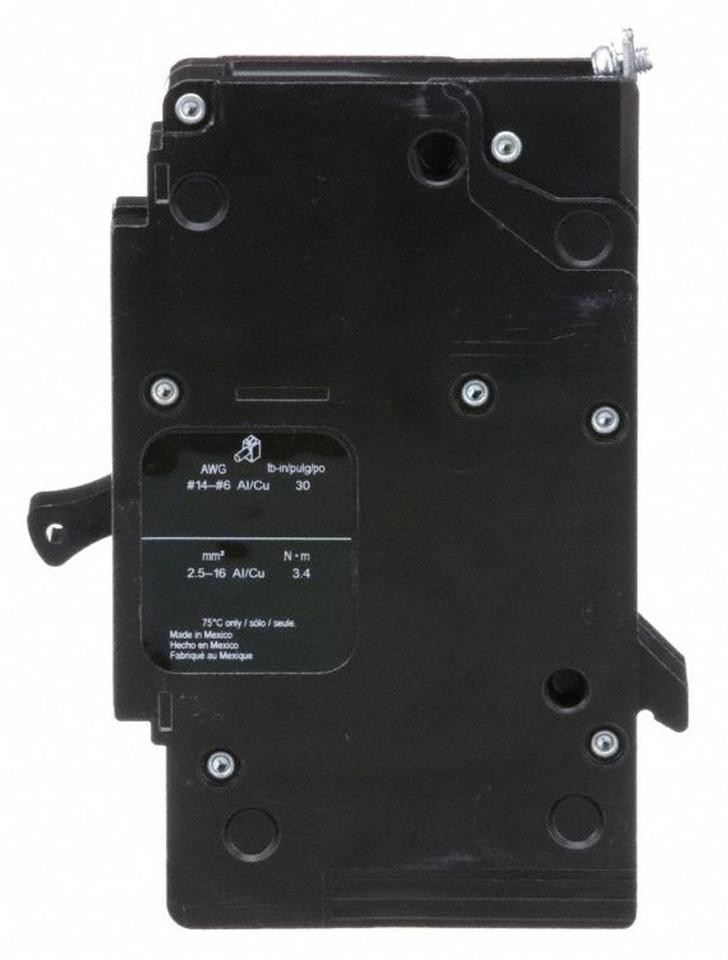

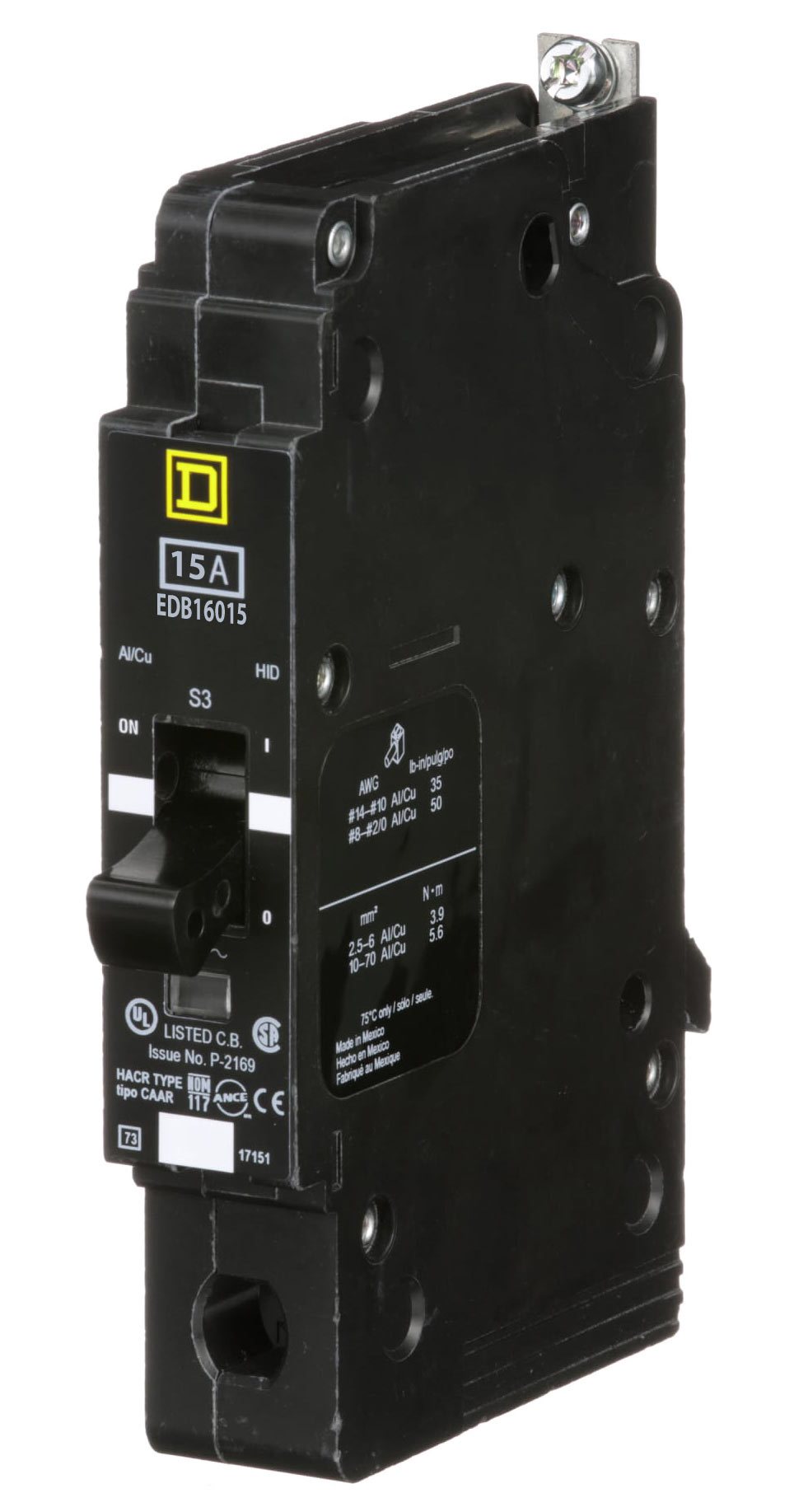

Square D EDB16015 Circuit Breaker | 600V 15A 1P 18kA@480V Bolt-on EDB Series

Product Description:
The Square D EDB16015 is a Molded Case Circuit Breaker from the EDB Series. It features a 1 pole, 600 Volt, 15 amp rating with an AIC rating of 18kA@480V. This breaker uses a Bolt-on connection and provides Thermal Magnetic protection. It is designed for use in NF panelboards and complies with cULus and IEC standards.

Key Features:
✔ Part Number: EDB16015
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: D; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901238232
✔ GTIN: 00785901238232
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in
✔ Panel Type: NF panelboard
✔ Standards: cULus, IEC
✔ Certification: cULus, IEC
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
