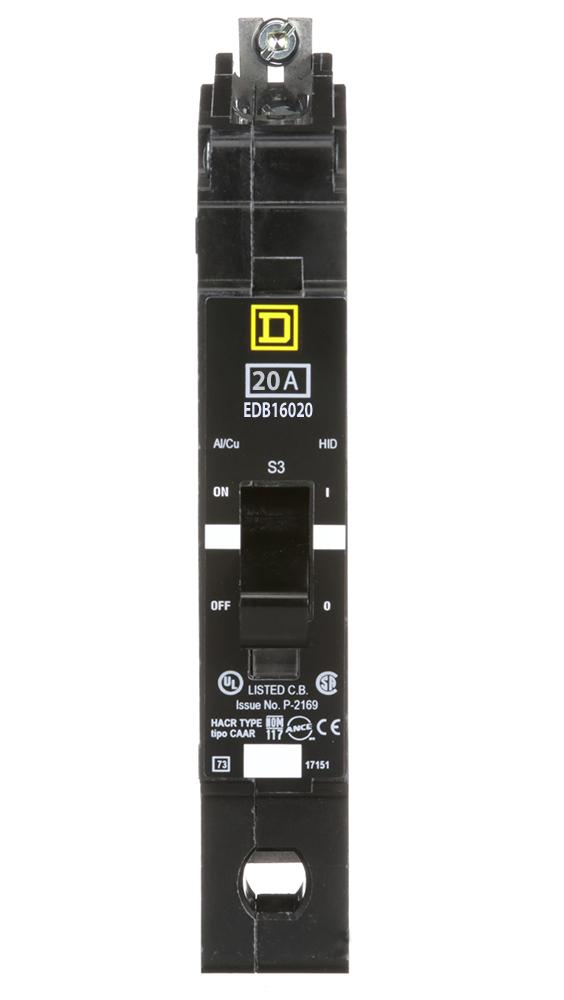

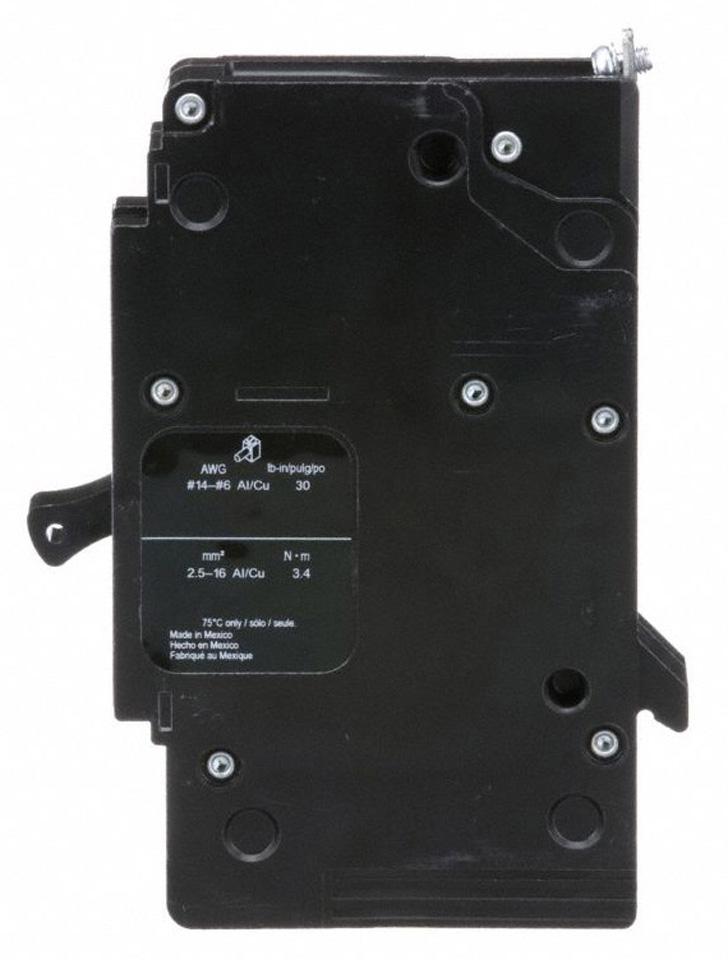

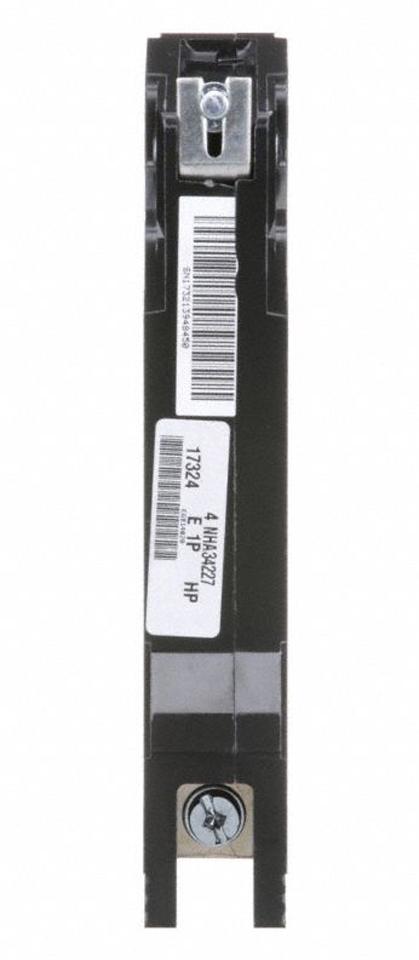

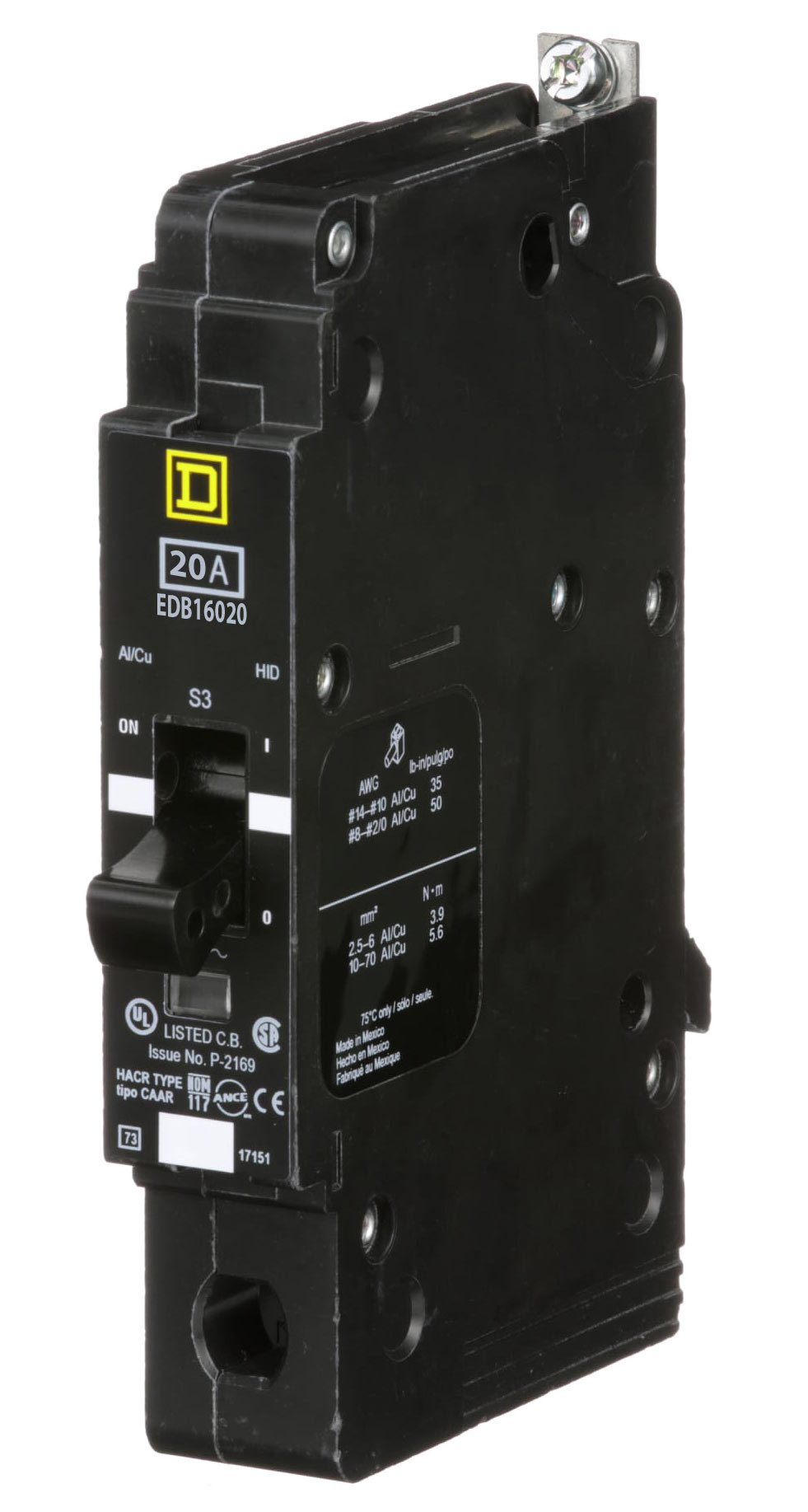

Square D EDB16020 Circuit Breaker | 600V 20A 1P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB16020 is a Molded Case Circuit Breaker from the EDB Series. It is a 1-pole, 20 amp breaker rated for 600 Volts with an AIC rating of 18kA@480V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: EDB16020
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: D; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901238249
✔ GTIN: 00785901238249
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in
✔ Weight: 1
✔ Panel Type: NF panelboard
✔ Standards: IEC, cULus
✔ Certification: IEC, cULus
✔ Wire Size: AWG 12...AWG 6 aluminum, AWG 14...AWG 6 copper
