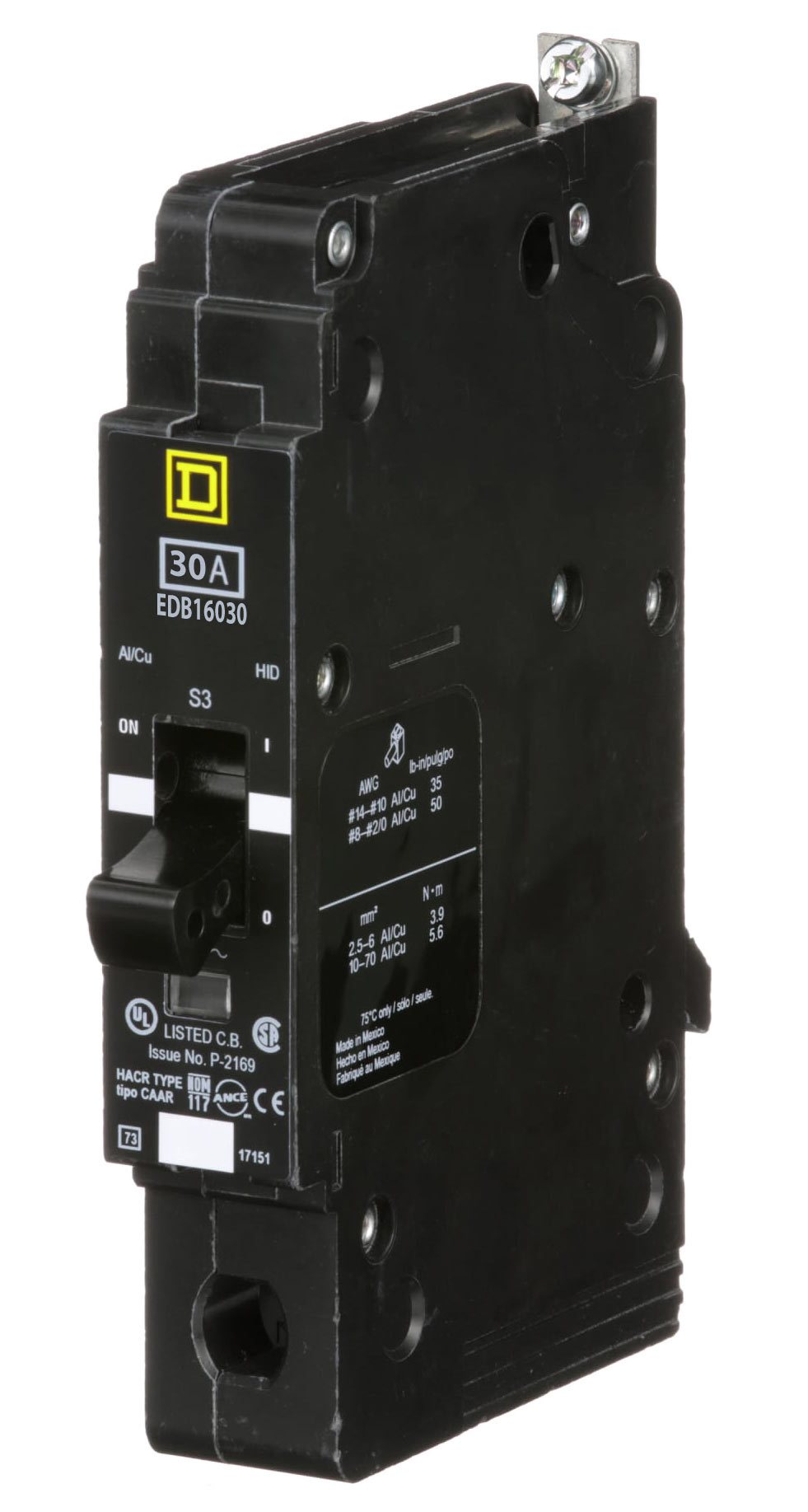

Square D EDB16030 Circuit Breaker | 600V 30A 1P 18kA@480V Bolt-On EDB Series

Product Description:
The Square D EDB16030 is a Molded Case Circuit Breaker from the EDB Series. It features a 1 pole, 600 Volt, 30 amp rating with an AIC rating of 18kA@480V. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection. It is designed for use in NF panelboards and complies with cULus and IEC standards.

Key Features:
✔ Part Number: EDB16030
✔ Manufacturer: Schneider Electric, Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EDB Series
✔ Type: EDB
✔ Voltage: 600
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 18kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: D; E-Frame
✔ Wire Size: Min. 12 AWG (Al), 14 AWG (Cu) Max. 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901238539
✔ GTIN: 00785901238539
✔ Country of Origin: Mexico
✔ Dimensions: 0.98 in x 5.66 in
✔ Panel Type: NF panelboard
✔ Standards: cULus, IEC
✔ Certification: cULus, IEC
