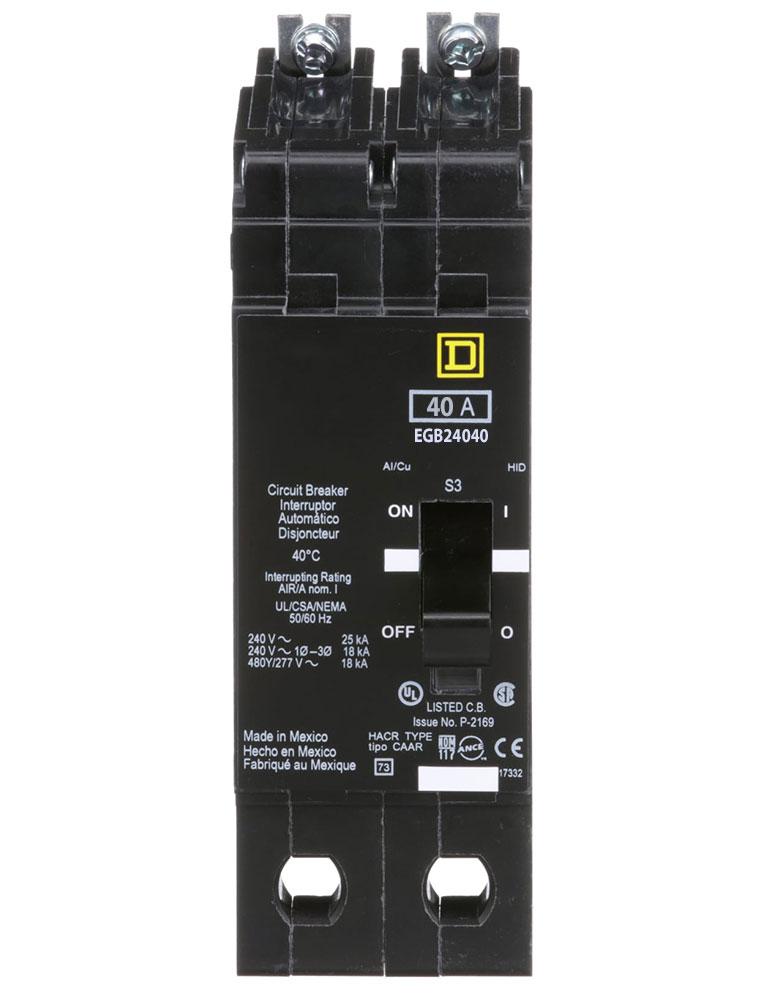

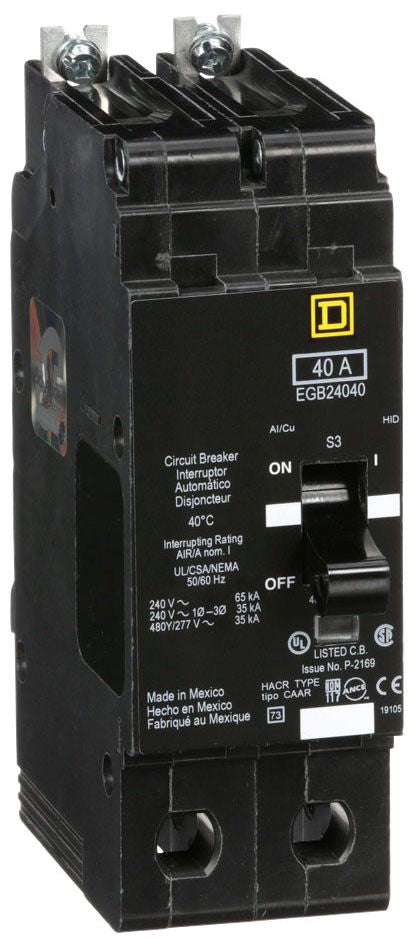

Square D EGB24040 Circuit Breaker | 480V 40A 2P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB24040 is a Molded Case Circuit Breaker from the EGB Series. It features 2 poles, 480V voltage, and a 40 amp rating with a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: EGB24040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901130314
✔ GTIN: 00785901130314
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in
✔ Weight: 2.64
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
