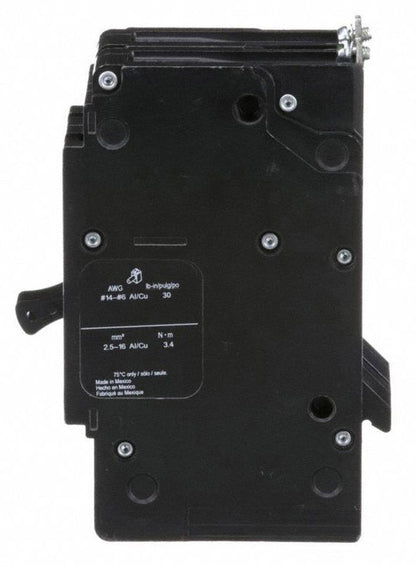

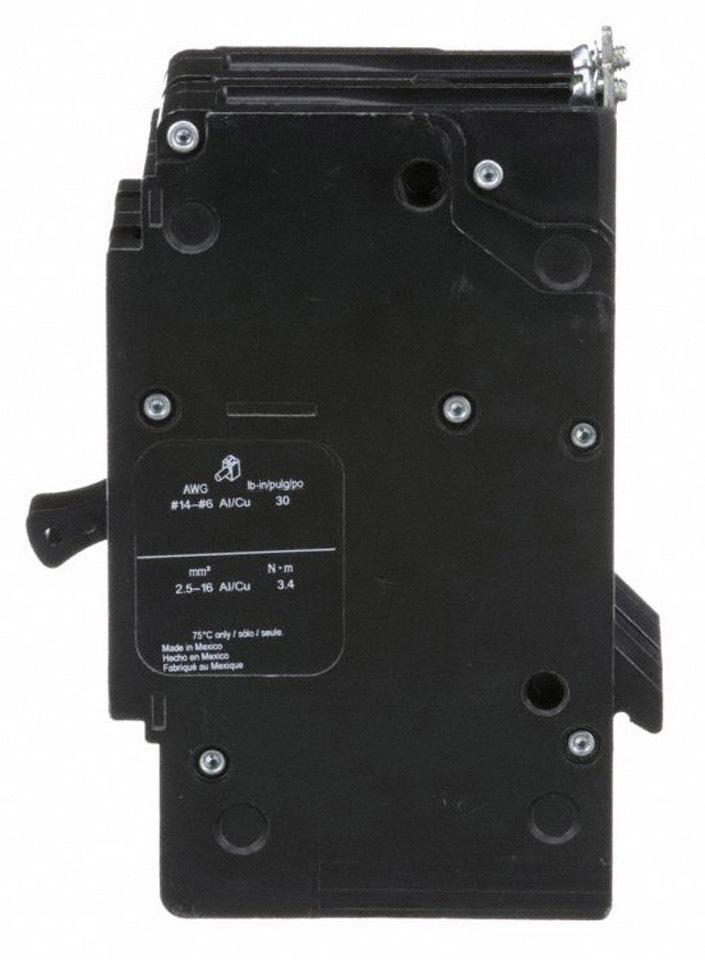

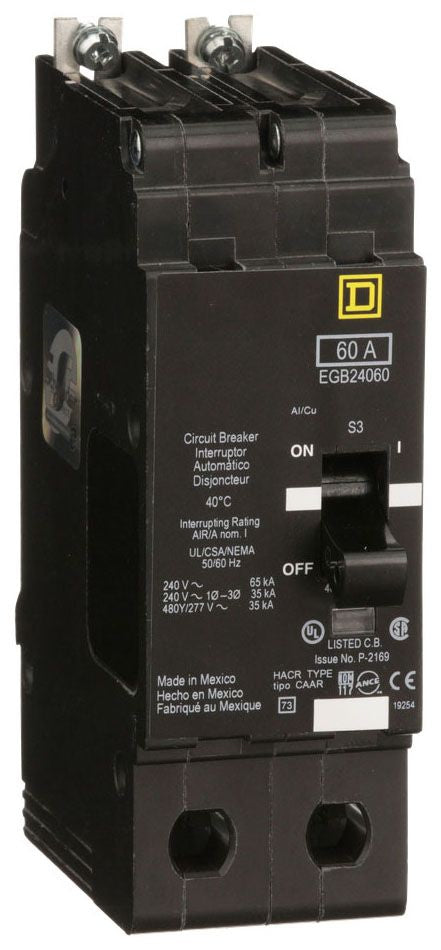

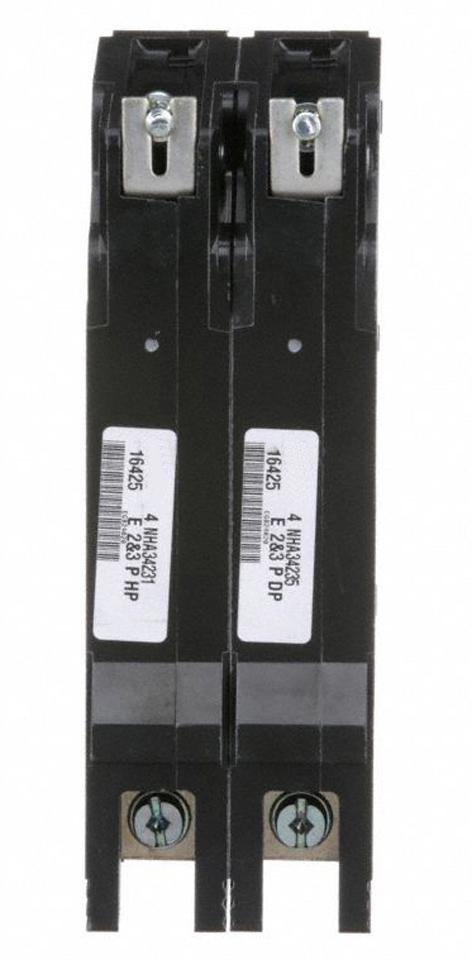

Square D EGB24060 Circuit Breaker | 480V 60A 2P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB24060 is a Molded Case Circuit Breaker from the EGB Series. It is a 2-pole, 60 amp breaker rated for 480 volts with an interrupting capacity of 35kA. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: EGB24060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 60
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: G; E-Frame
✔ Wire Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ UPC: 785901130406
✔ GTIN: 00785901130406
✔ Country of Origin: Mexico
✔ Dimensions: 1.96 in x 5.66 in
✔ Weight: 2
✔ Panel Type: NF panelboard
✔ Standards: cULus
✔ Certification: cULus
