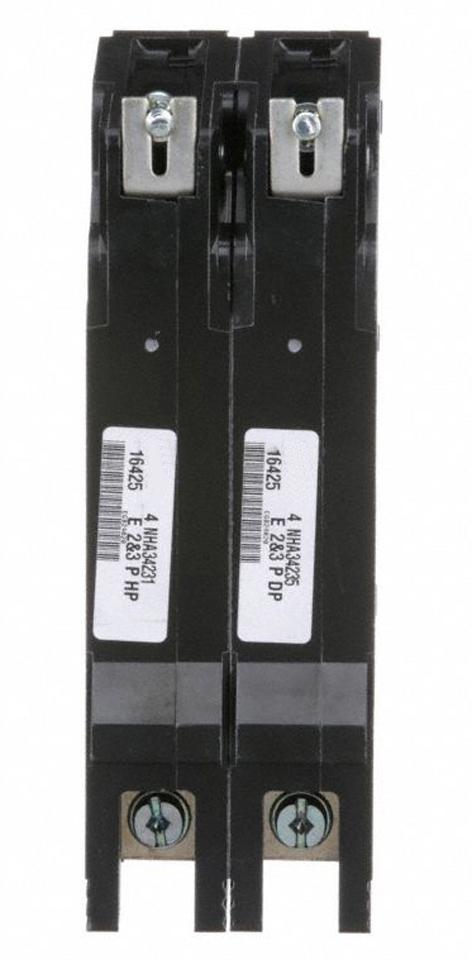

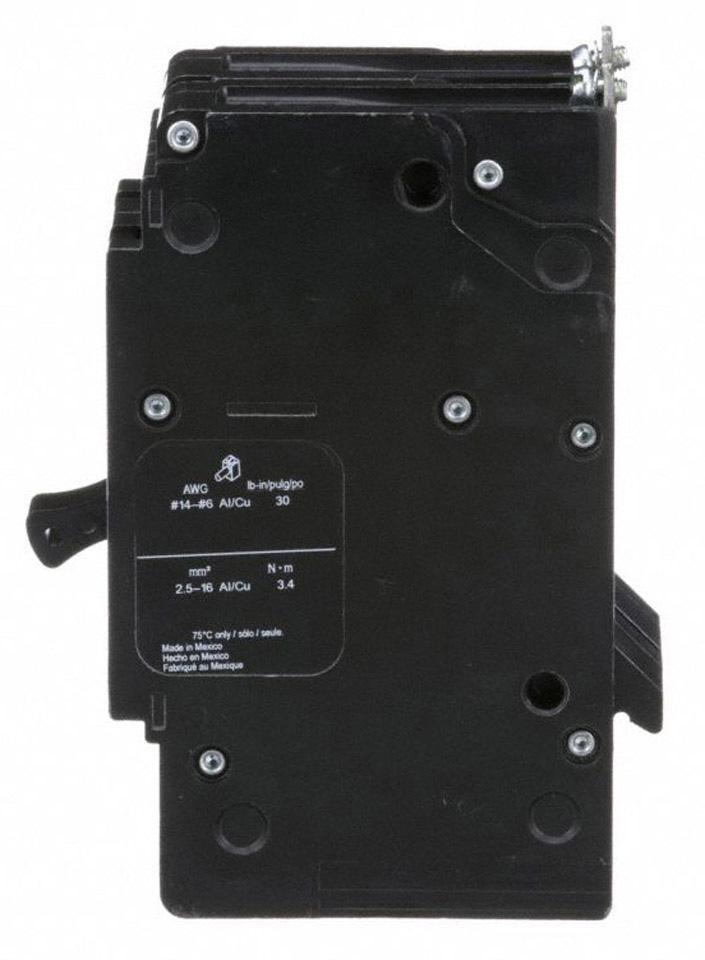

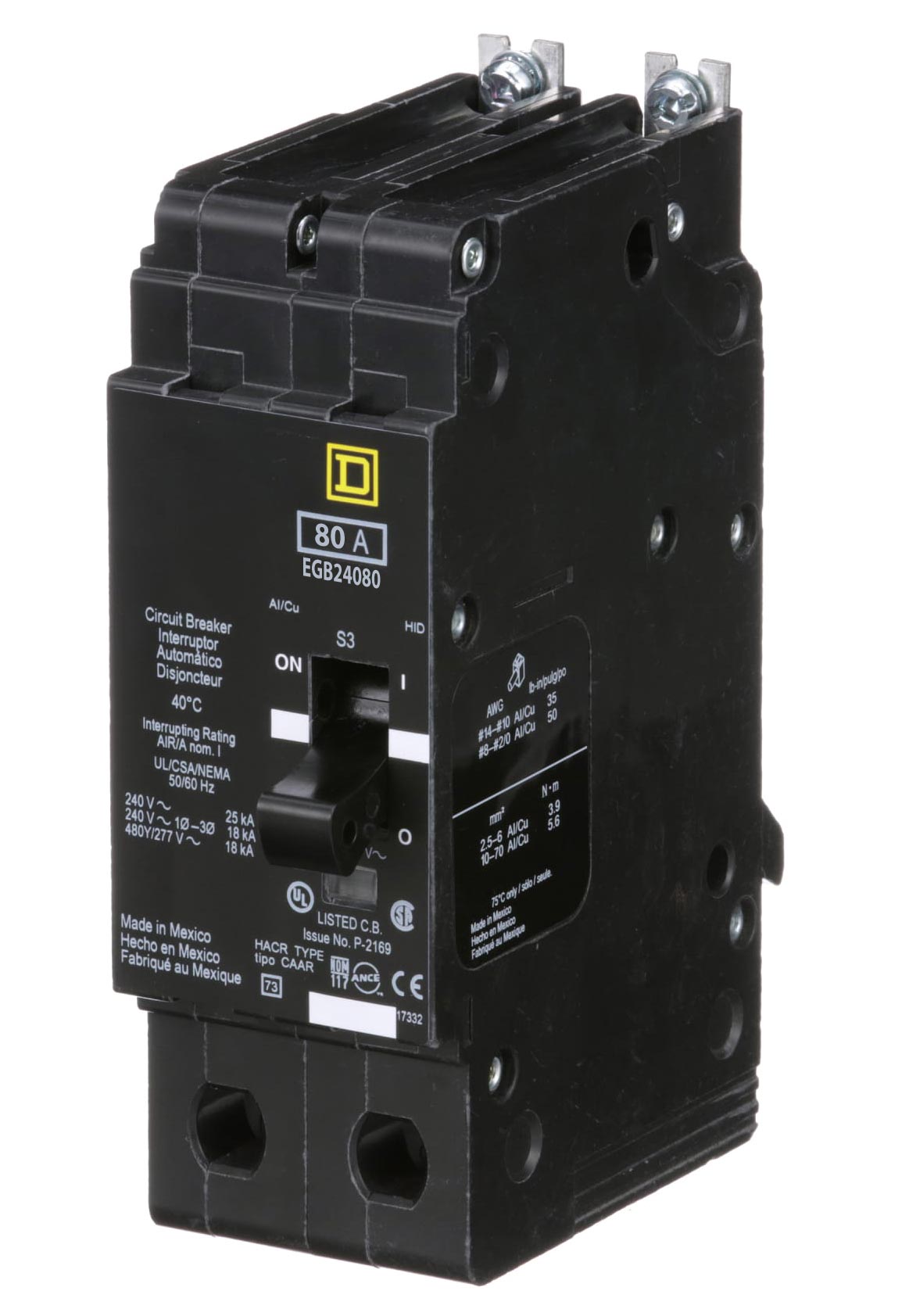

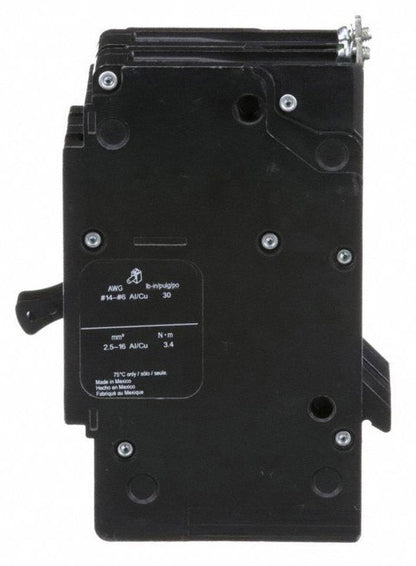

Square D EGB24080 Circuit Breaker | 480V 80A 2P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB24080 is a Molded Case Circuit Breaker from the EGB Series. It is a 2-pole, 80 amp breaker rated for 480 volts with an interrupting capacity of 35kA. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: EGB24080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 80
✔ Poles: 2
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901130468
✔ GTIN: 00785901130468
✔ Country of Origin: Mexico
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
✔ Weight: 1.12
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
