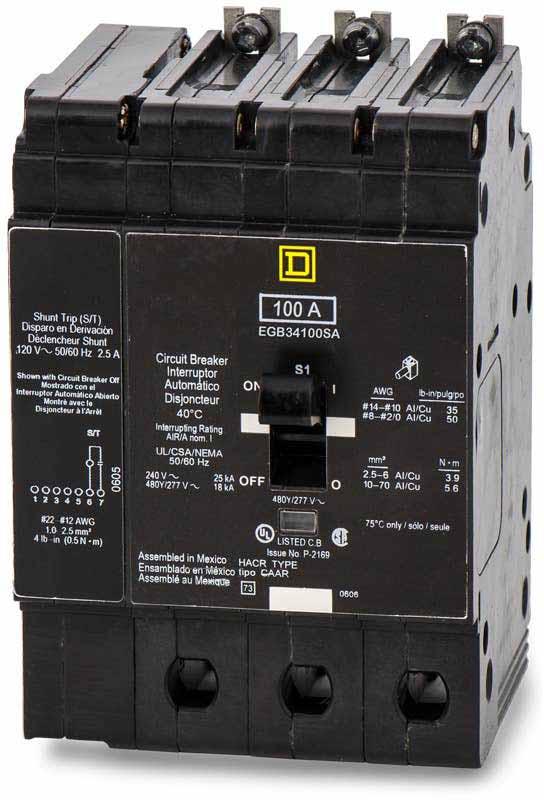

Square D EGB34100SA Circuit Breaker | 480V 100A 3P 35kA@480V Bolt-On EGB Series

Product Description:
The Square D EGB34100SA is a 3-pole molded case circuit breaker with a 480V, 100A rating and 35kA@480V AIC rating. It features thermal magnetic protection and a bolt-on connection for secure installation. This breaker is part of the EGB Series and includes a 120V shunt trip for added functionality.

Key Features:
✔ Part Number: EGB34100SA
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EGB Series
✔ Type: EGB
✔ Voltage: 480
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901159483
✔ GTIN: 00785901159483
✔ Country of Origin: Mexico
✔ Dimensions: Depth 4.05 in (102.87 mm) Width 3.92 in (99.57 mm) Height 5.66 in (143.76 mm)
✔ Weight: 1.89
✔ Certification: UL
✔ Wire Size: AWG 12 to AWG 2/0 Aluminum, AWG 14 to AWG 2/0 Copper
