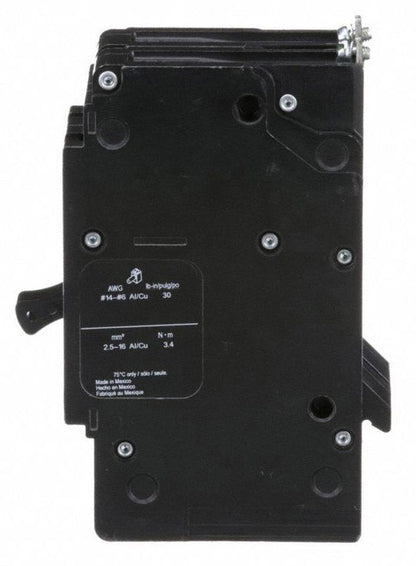

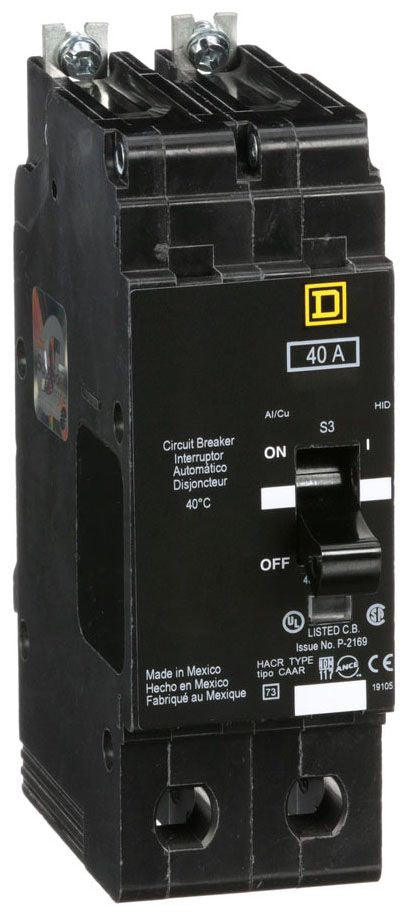

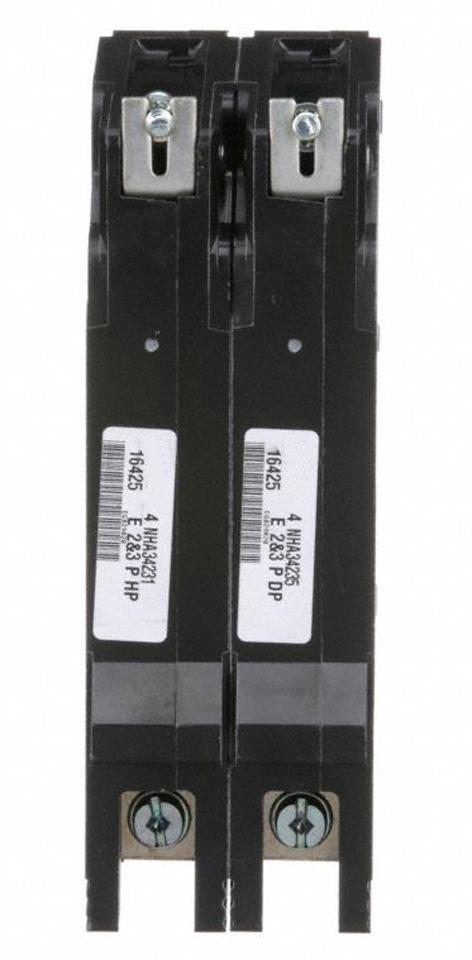

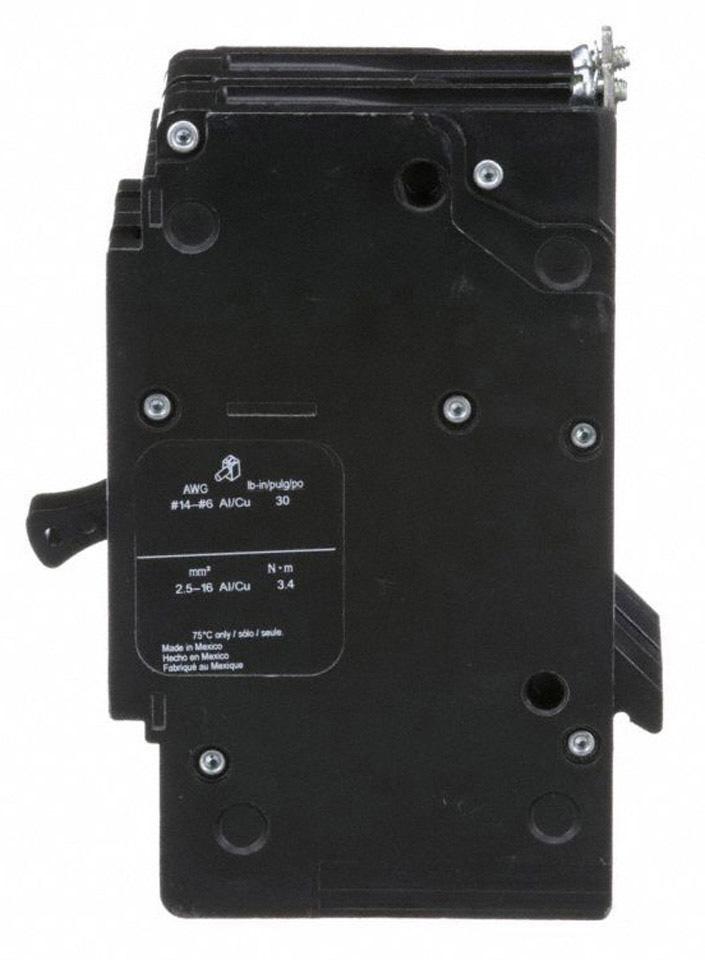

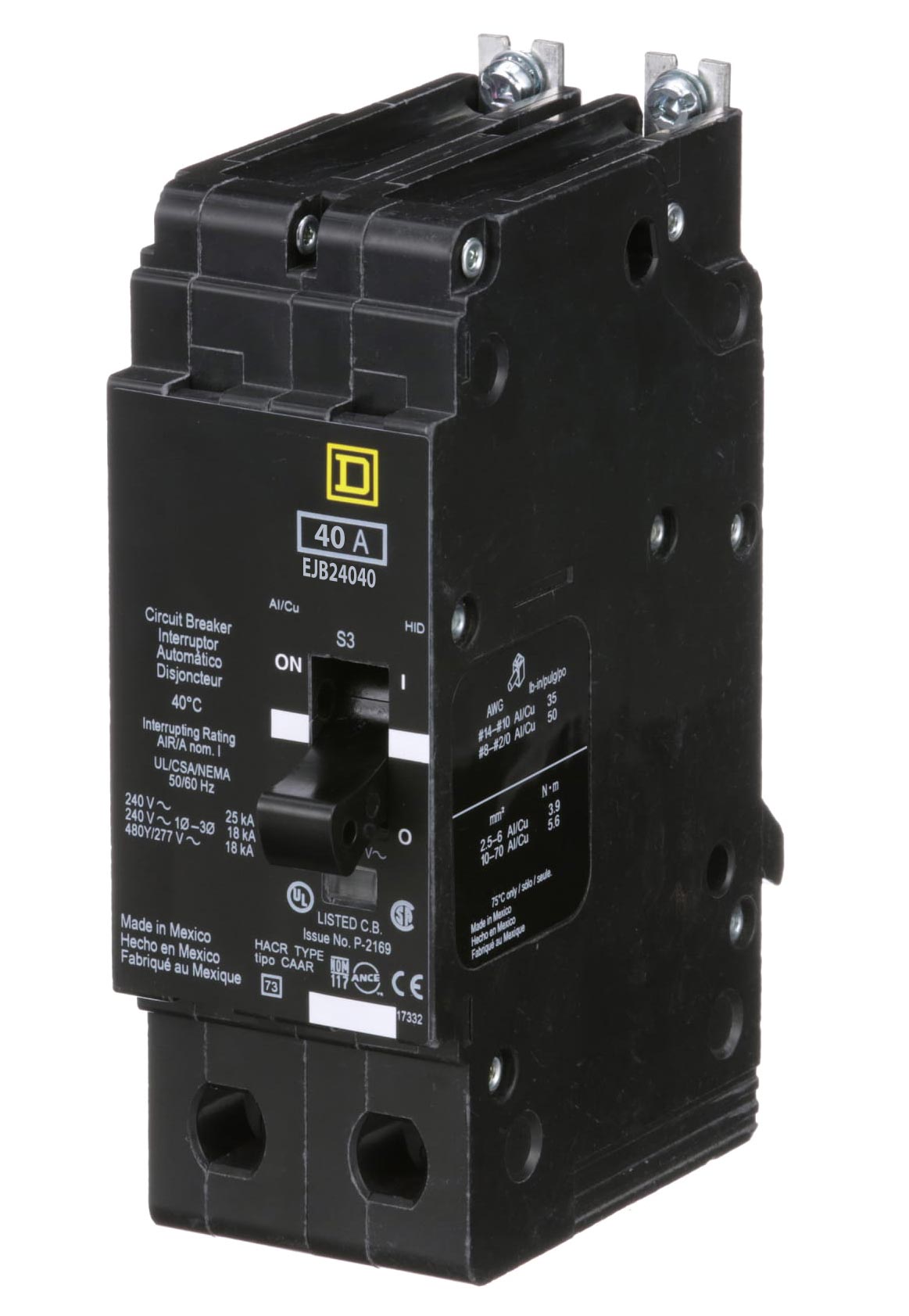

Square D EJB24040 Circuit Breaker | 480V 40A 2P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB24040 is a 2-pole molded case circuit breaker rated for 40 amps at 480 volts. It features thermal magnetic protection and a bolt-on connection type. This breaker is designed for use in NF panelboards and is certified for safety standards.

Key Features:
✔ Part Number: EJB24040
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 40
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Certification: cULus
✔ UPC: 785901130598
✔ GTIN: 00785901130598
✔ Country of Origin: United States
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.12
✔ Panel Type: NF panelboard
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
