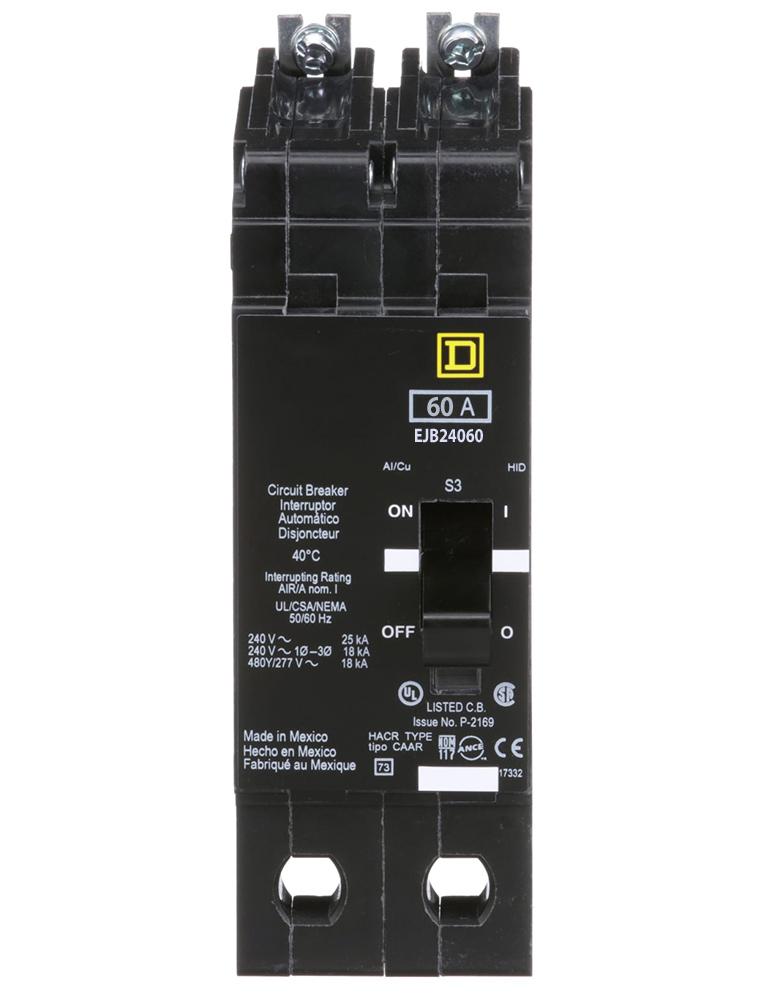

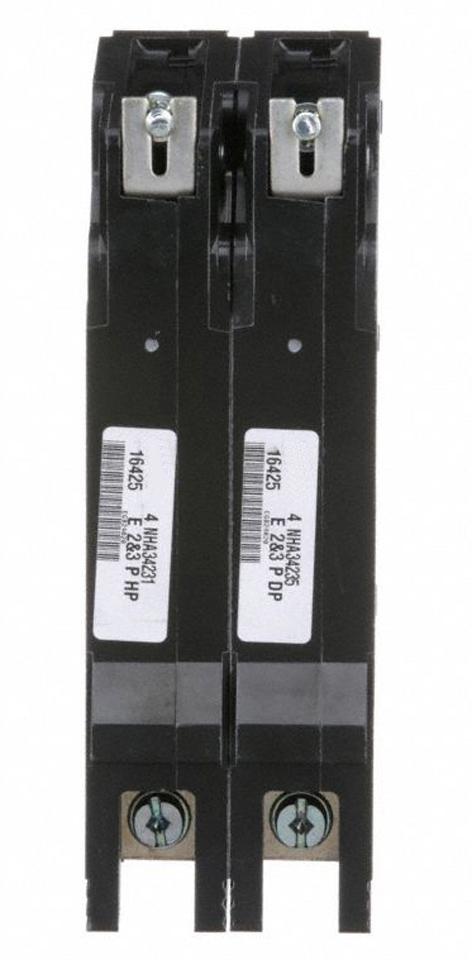

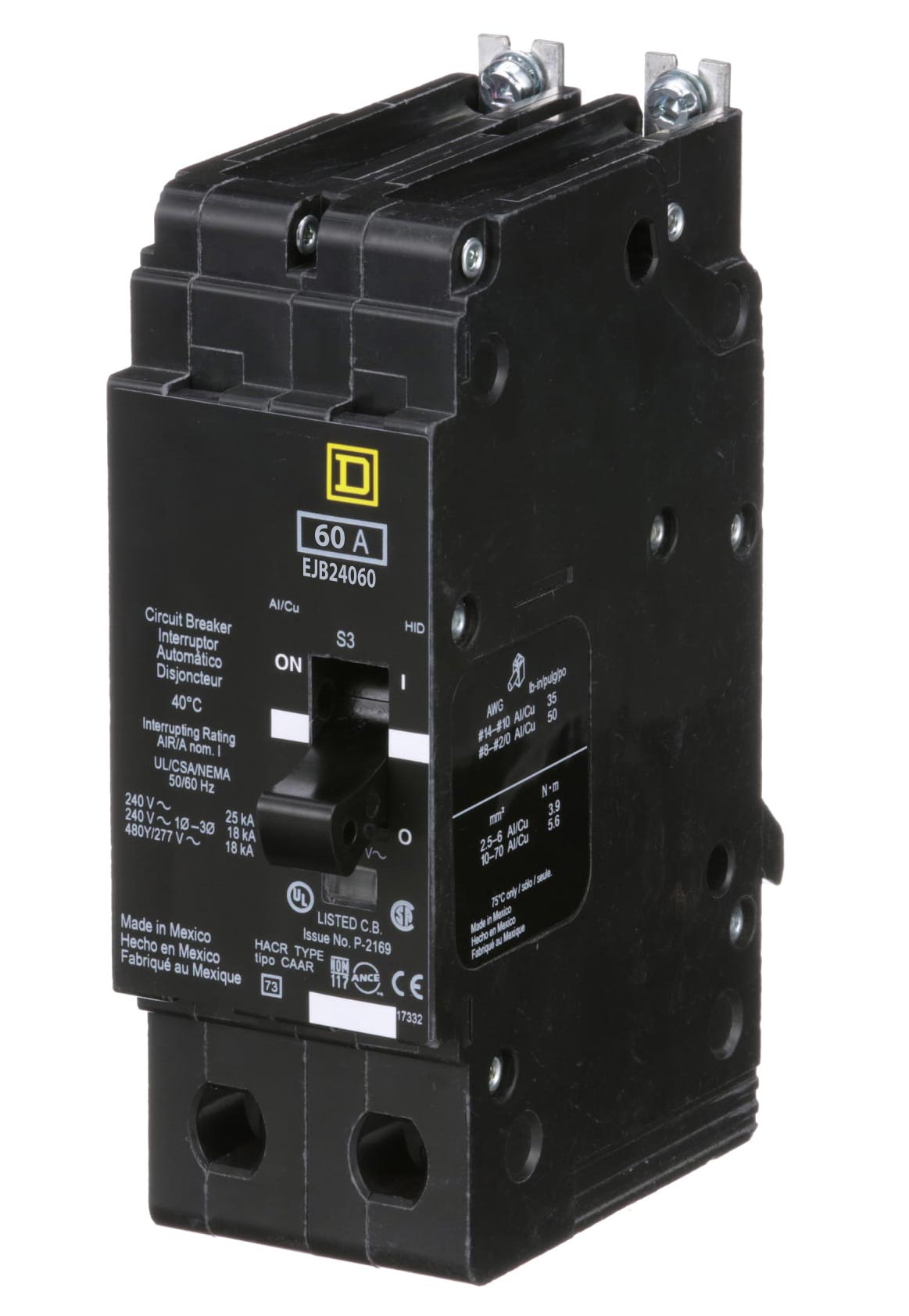

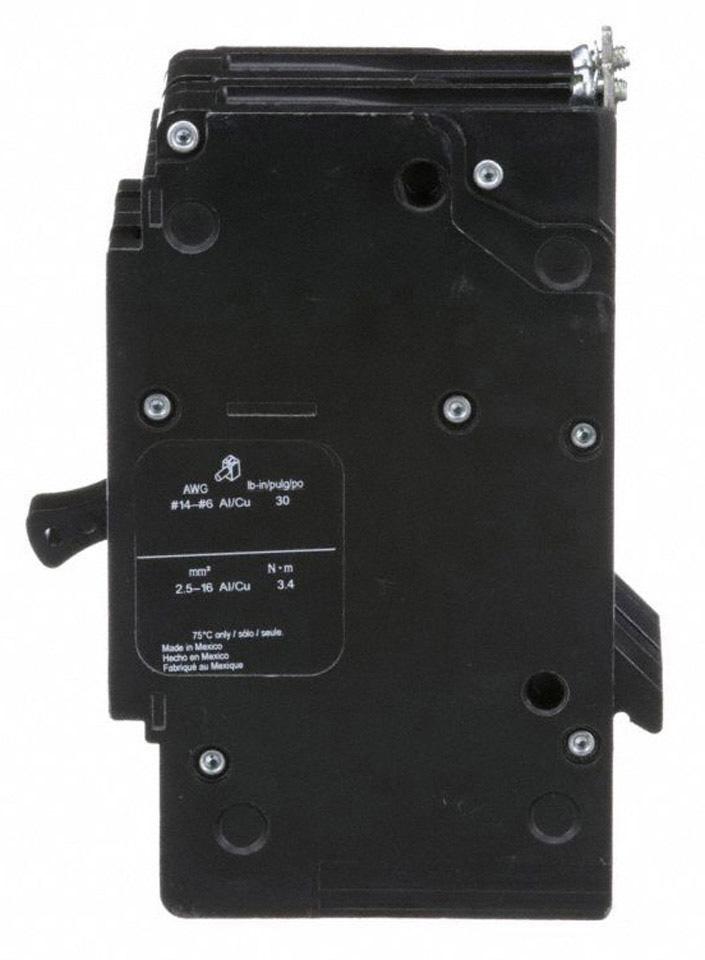

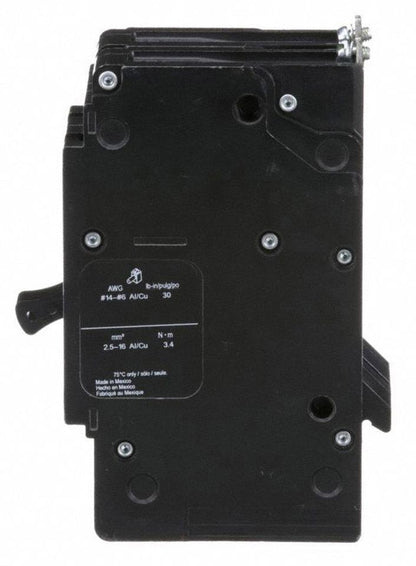

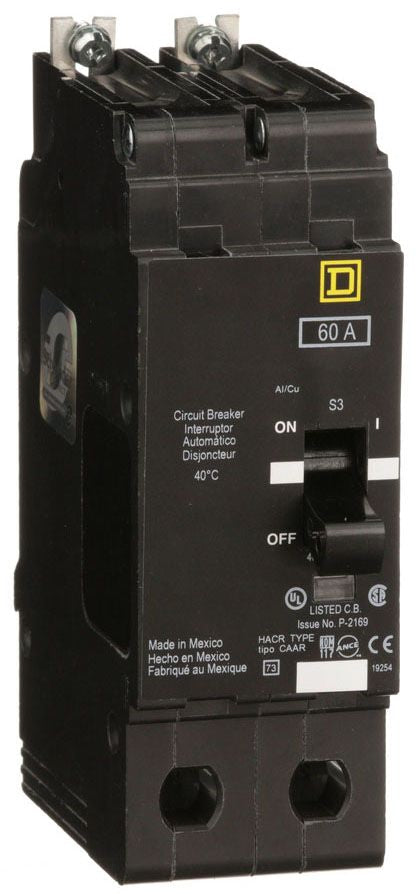

Square D EJB24060 Circuit Breaker | 480V 60A 2P 65kA@480V Bolt-On EJB Series

Product Description:
The Square D EJB24060 is a Molded Case Circuit Breaker from the EJB Series. It is a 2-pole, 60 amp breaker rated for 480 volts with an interrupting capacity of 65kA. This model features thermal magnetic protection and a bolt-on connection type for secure installation.

Key Features:
✔ Part Number: EJB24060
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480
✔ Amperage: 60
✔ Poles: 2
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ UPC: 785901128816
✔ GTIN: 00785901128816
✔ Country of Origin: United States
✔ Dimensions: Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
✔ Weight: 1.12
✔ Panel Type: NF panelboard
✔ Certification: cULus
✔ Wire Size: AWG 12...AWG 2/0 aluminum, AWG 14...AWG 2/0 copper
