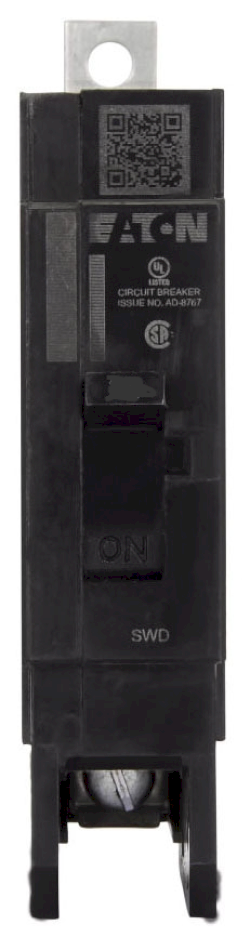

Cutler Hammer GHB1030 Circuit Breaker | Series C GHB 480V 30A

Product Description:
The Cutler Hammer GHB1030 is a Molded Case Circuit Breaker from the Series C family. It features a 1-pole design with a 480V, 30A rating and a 14kA@277V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is CSA Certified and UL Listed for safety compliance.

Key Features:
✔ Part Number: GHB1030
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480V
✔ Amperage: 30A
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, UL Listed
✔ UPC: 786679016466
✔ GTIN: 007866
