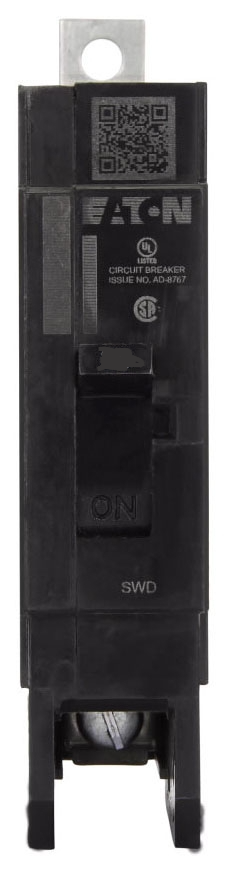

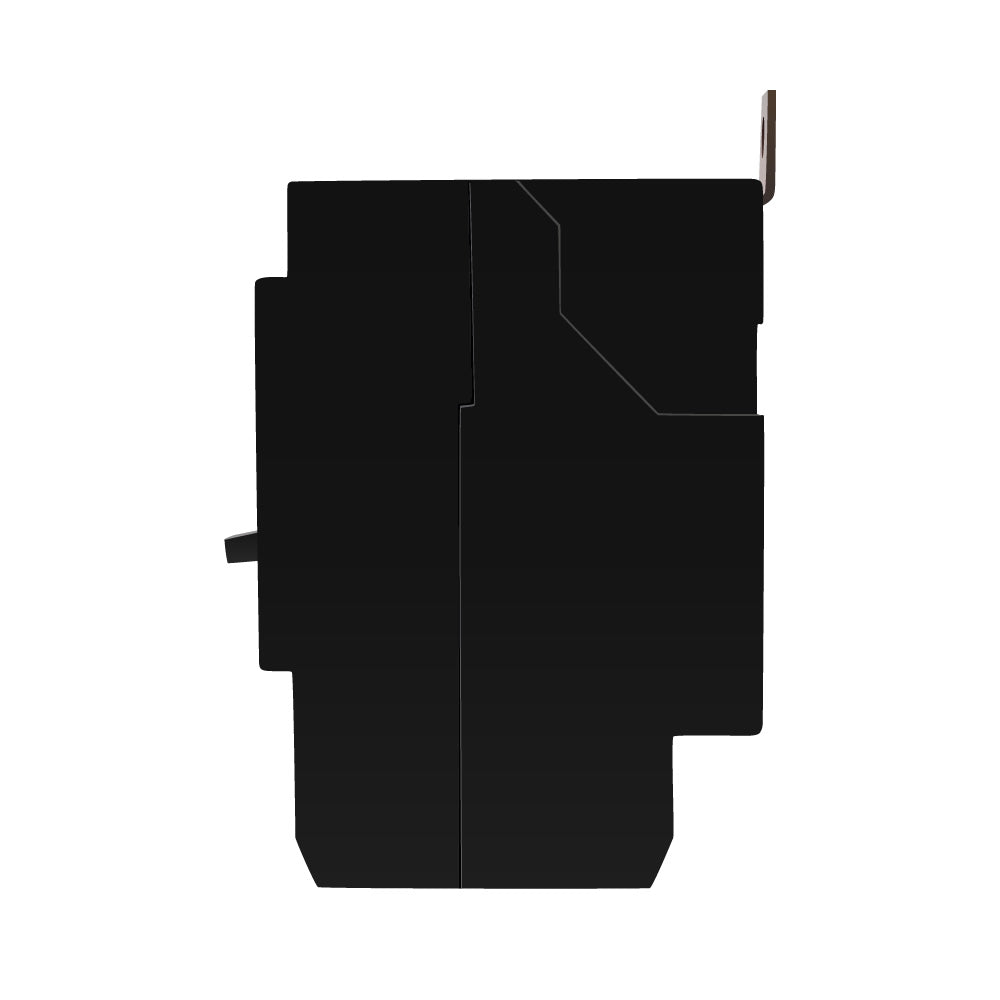

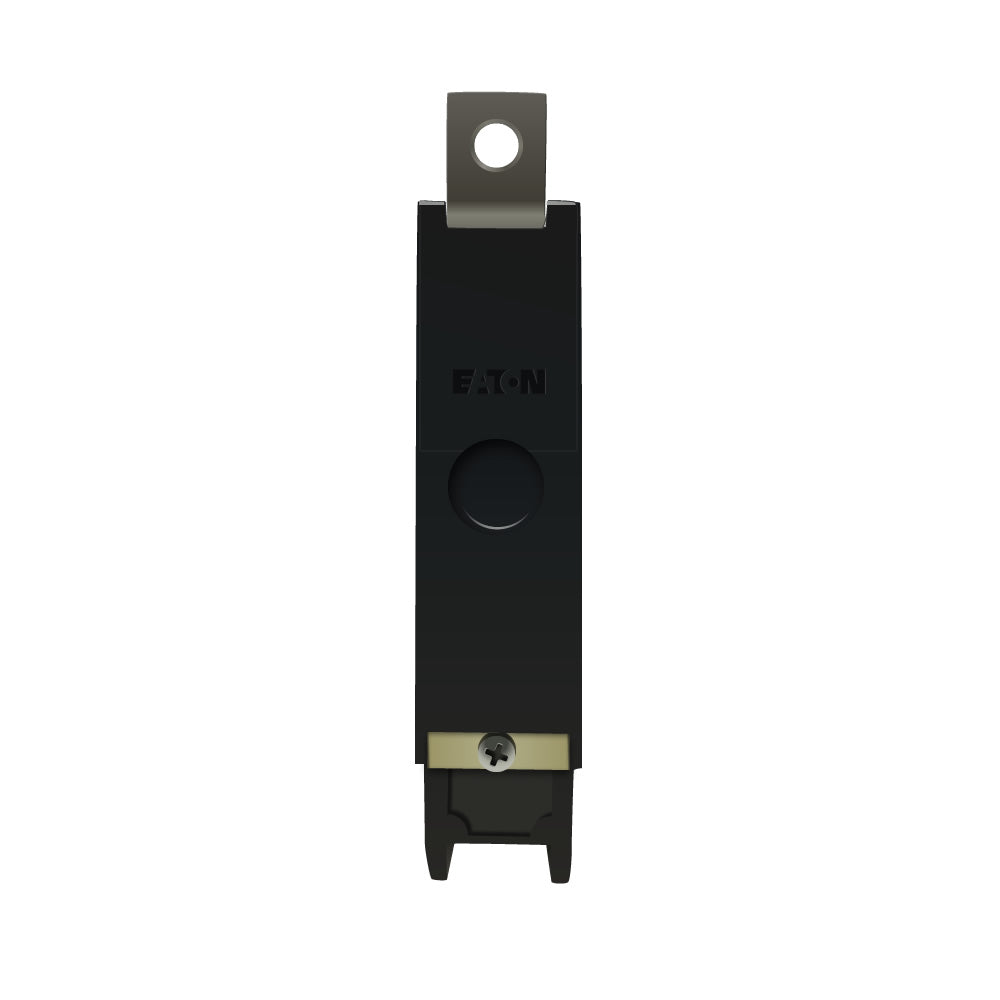

Cutler Hammer GHB1040 Circuit Breaker | 480V 40A 1P 14kA@277V Bolt-on Series C

Product Description:
The Cutler Hammer GHB1040 is a Molded Case Circuit Breaker from the Series C family. It is a 1-pole, 40 amp breaker rated for 480 volts with a 14kA@277V AIC rating. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for use in Eaton Powerline Panelboards.

Key Features:
✔ Part Number: GHB1040
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 786679023655
✔ GTIN: 00786679023655
✔ Country of Origin: Dominican Republic
✔ Dimensions: 1 in x 4 in x 4 in
✔ Weight: 0.55
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
