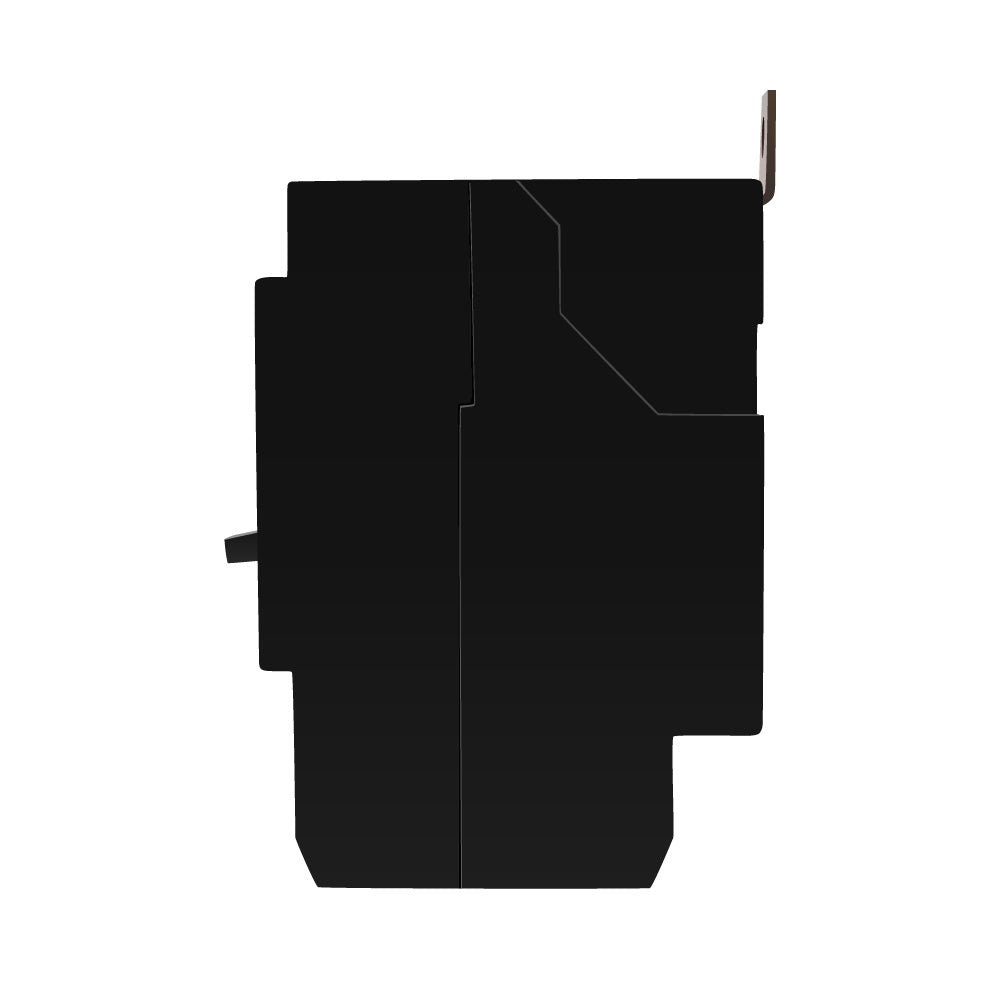

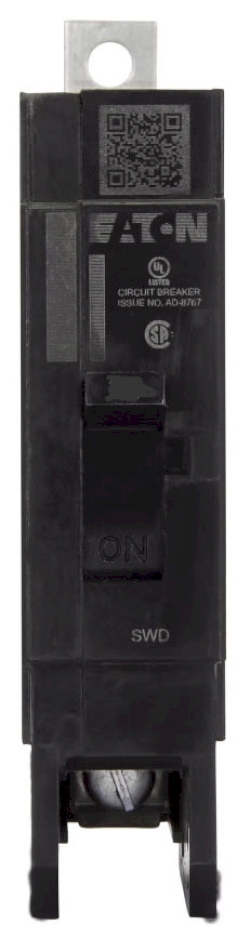

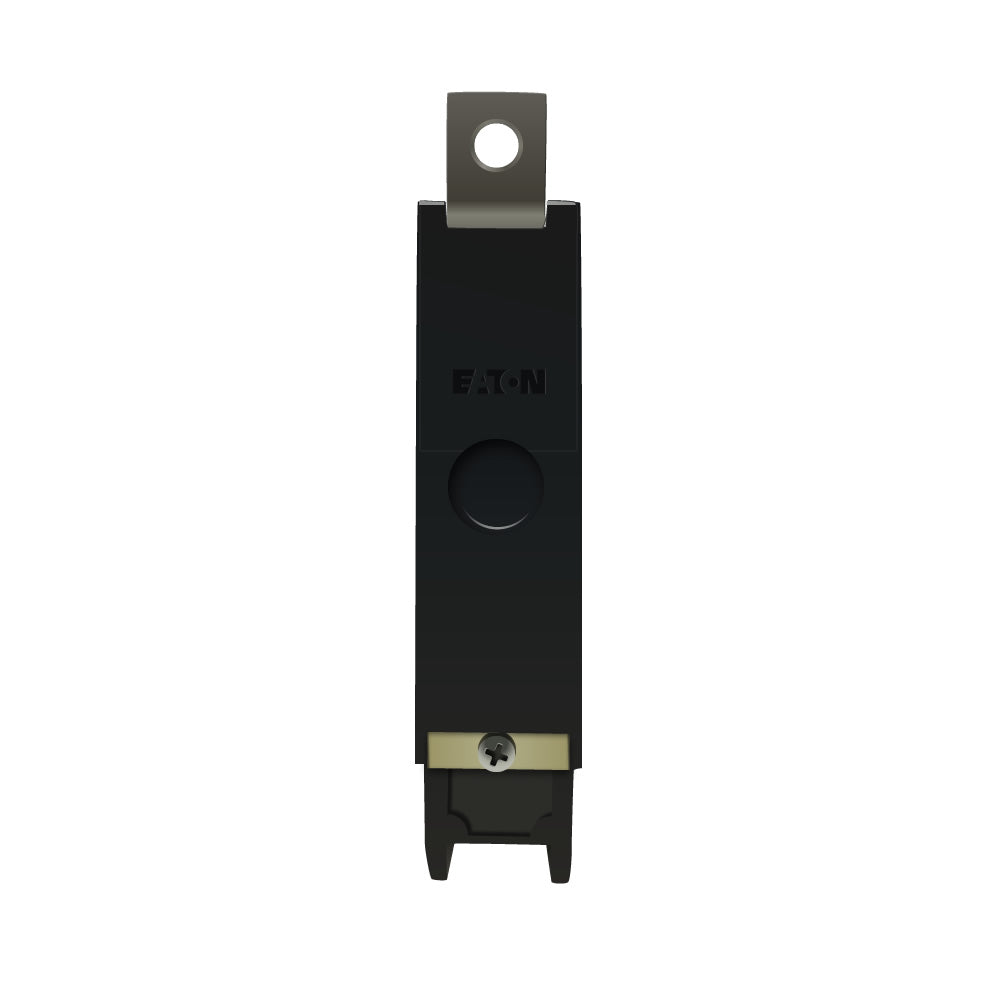

Cutler Hammer GHB1045 Molded Case Circuit Breaker | 480V 45A 1P 14kA@277V Bolt-On Series C

Product Description:
The Cutler Hammer GHB1045 is a Molded Case Circuit Breaker from the Series C family. It is a 1-pole, 45 amp breaker rated for 480 volts with a 14kA@277V AIC rating. This circuit breaker features a bolt-on connection and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: GHB1045
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 45
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: G Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679006382
✔ GTIN: 00786679006382
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 2.63in Height 4in Width 1in
✔ Weight: 0.9
✔ Certification: UL Listed,Federal Specifications Classification W-C375B
