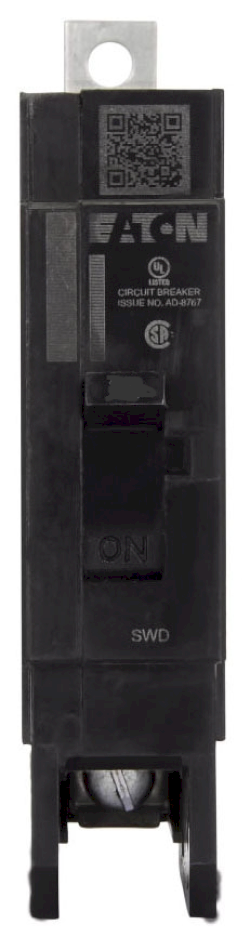

Cutler Hammer GHB1060 Circuit Breaker | Series C GHB 480V 60A

Product Description:
The Cutler Hammer GHB1060 is a Molded Case Circuit Breaker from the Series C family. It features a 1-pole design with a 480V, 60A rating and a 14kA@277V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: GHB1060
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480V
✔ Amperage: 60A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 14kA@277V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Frame Size: G Frame
✔ Certification: UL Listed, Federal Specifications Classification W-C375B
✔ UPC: 786679021736
✔ GTIN: 00786679021736
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2.63in (L) x 4in (H) x 1in (W)
✔ Weight: 0.9 lbs
