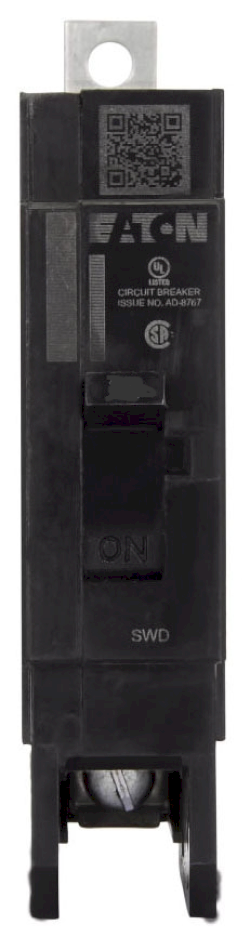

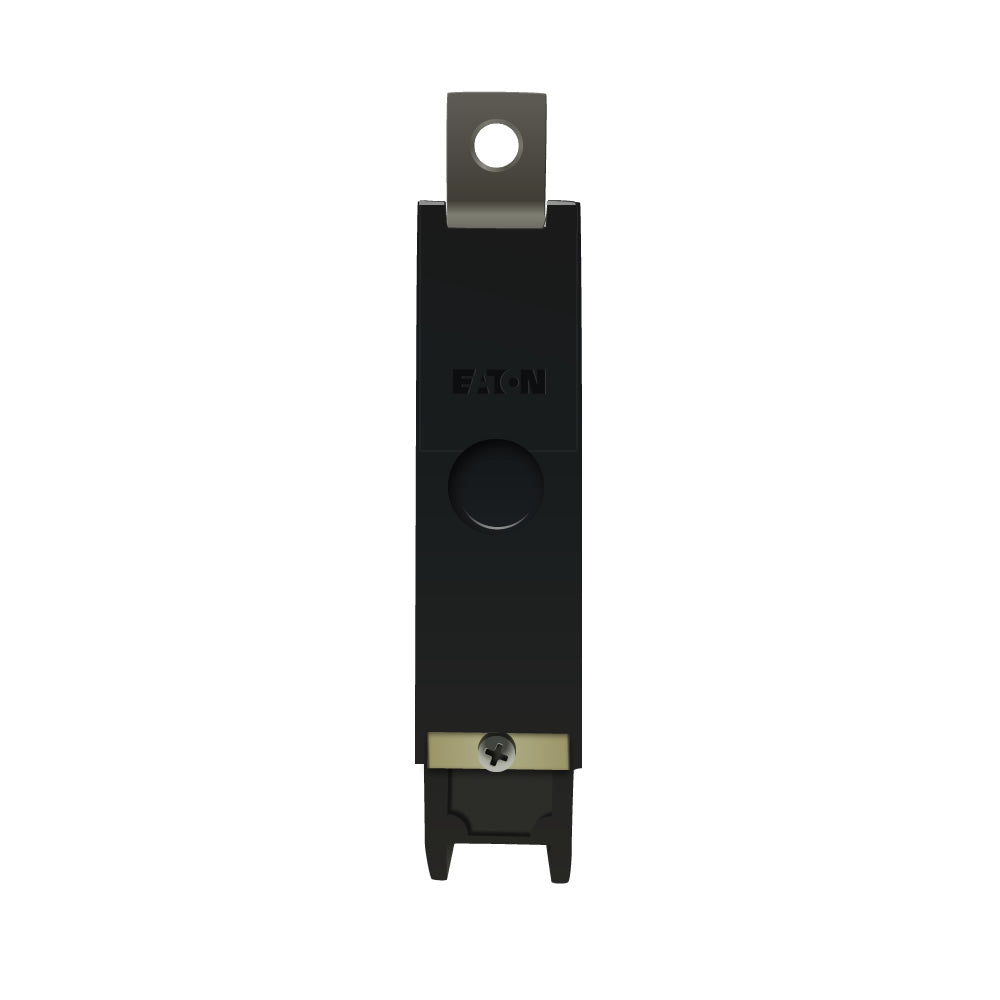

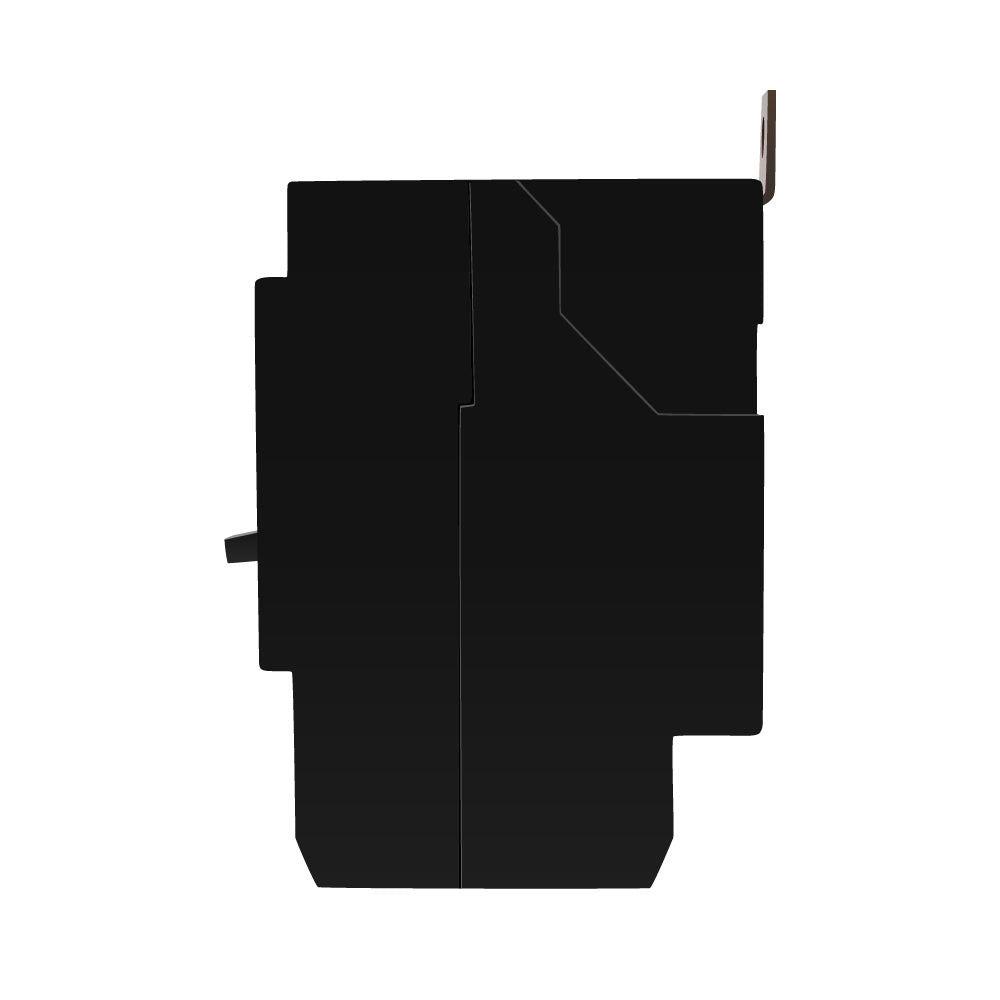

Westinghouse GHB1070 Molded Case Circuit Breaker | 480V 70A 1P 14kA@277V Bolt-On Series C

Product Description:
The Cutler Hammer GHB1070 is a Molded Case Circuit Breaker from the Series C family. It is a 1-pole breaker rated for 480 Volts and 70 amps, featuring a Bolt-On connection and Thermal Magnetic protection. This circuit breaker is designed for reliable performance in electrical systems.

Key Features:
✔ Part Number: GHB1070
✔ Manufacturer: Westinghouse
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 70
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: G Frame
✔ Protection: Thermal Magnetic
✔ UPC: 786679021743
✔ GTIN: 00786679021743
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 2.63in Height 4in Width 1in
✔ Weight: 0.7
✔ Certification: UL Listed,Federal Specifications Classification W-C375B
