Eaton GHB2035 Circuit Breaker | 35A 2P 480V 14kA@480V Bolt-On GHB

Product Description:

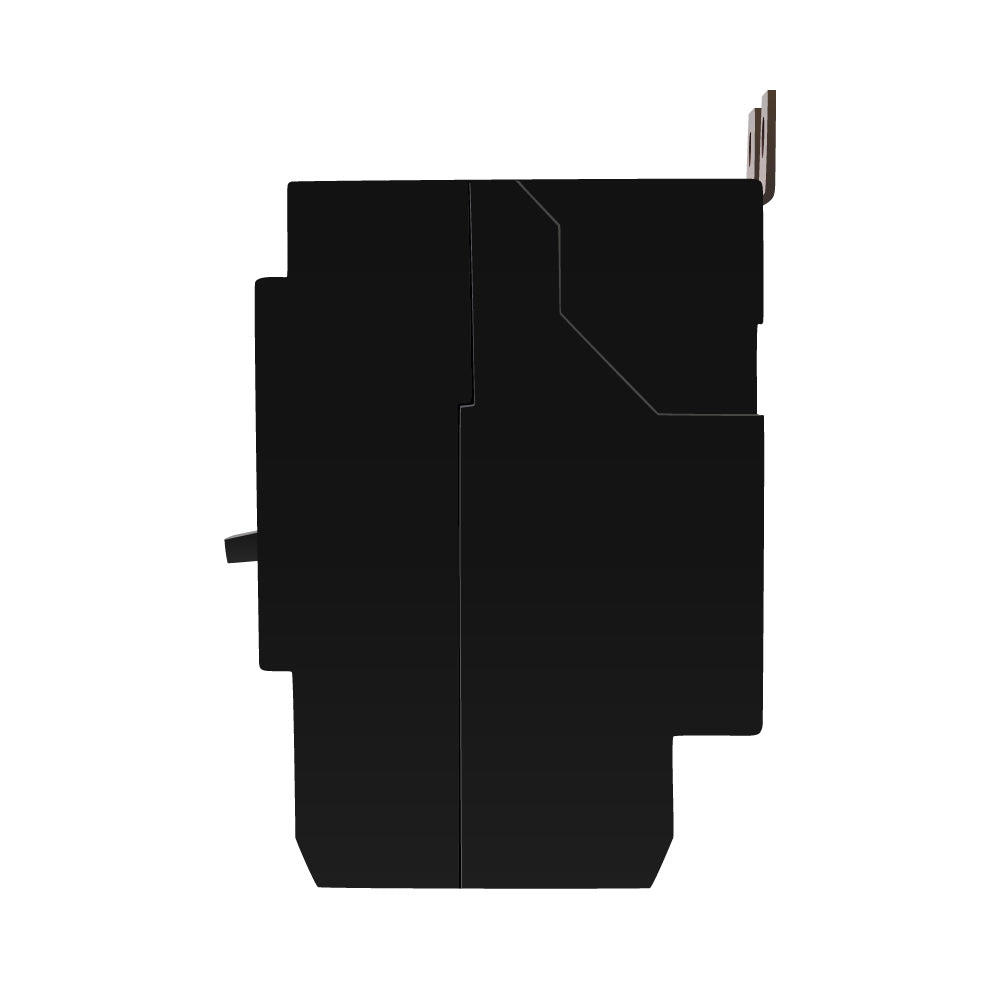

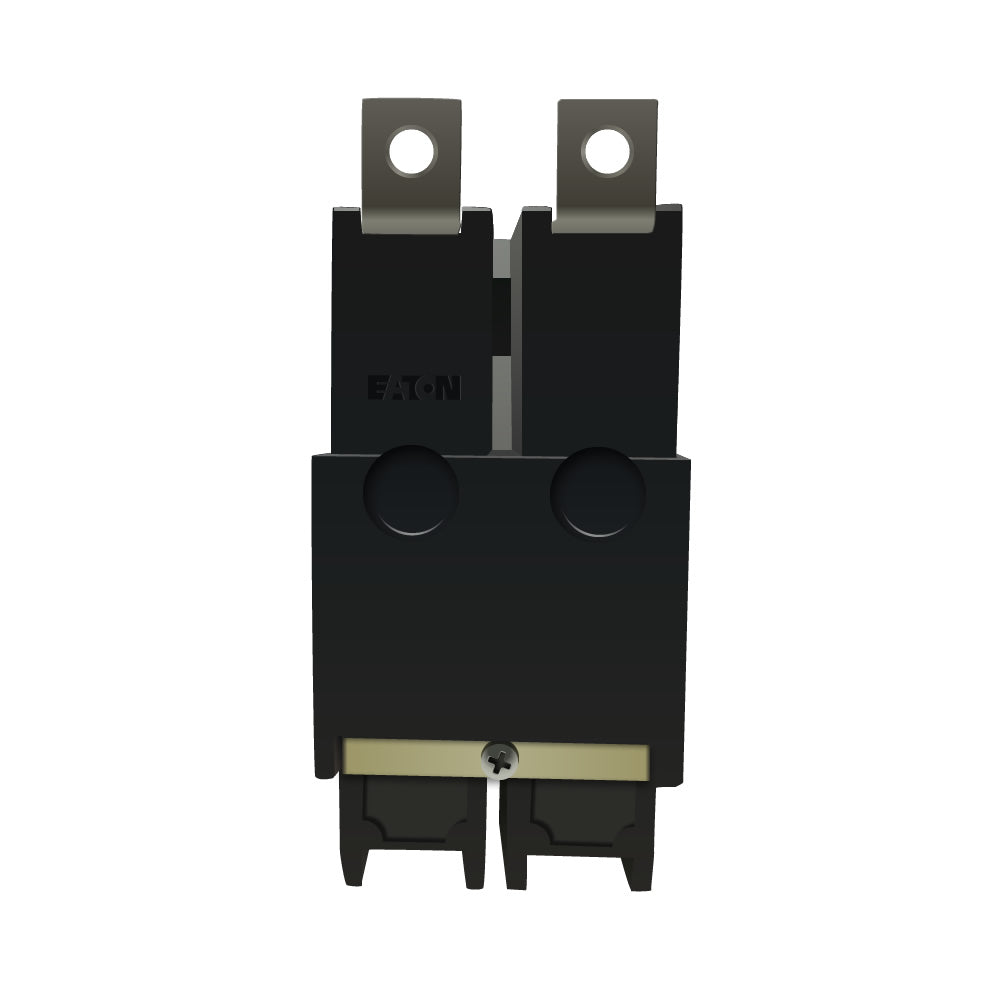

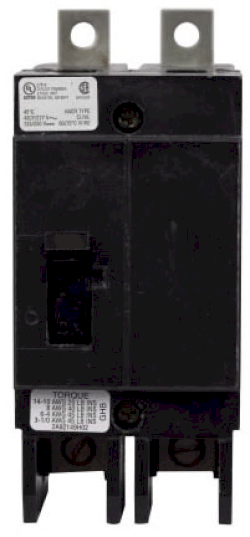

The GHB2035 is a 35 amp, 2-pole molded case circuit breaker from Eaton Cutler Hammer, designed for reliable protection of branch and feeder circuits. This bolt-on style breaker features a thermal-magnetic trip unit and is built for commercial and industrial panelboards. It operates up to 480V with an interrupt rating of 14kA for consistent, high-performance protection.

Key Features:
✔ Part Number: GHB2035
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Frame Size: G Frame
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679172506
✔ GTIN: 00786679172506
✔ Country of Origin: Dominican Republic
✔ Dimensions: Length 2.63in Height 4in Width 2in
✔ Weight: 1.1
✔ Standards: UL 489
✔ Certification: UL Listed,Federal Specifications Classification W-C375B
✔ Wire Size: 10 to 1/0 AWG
