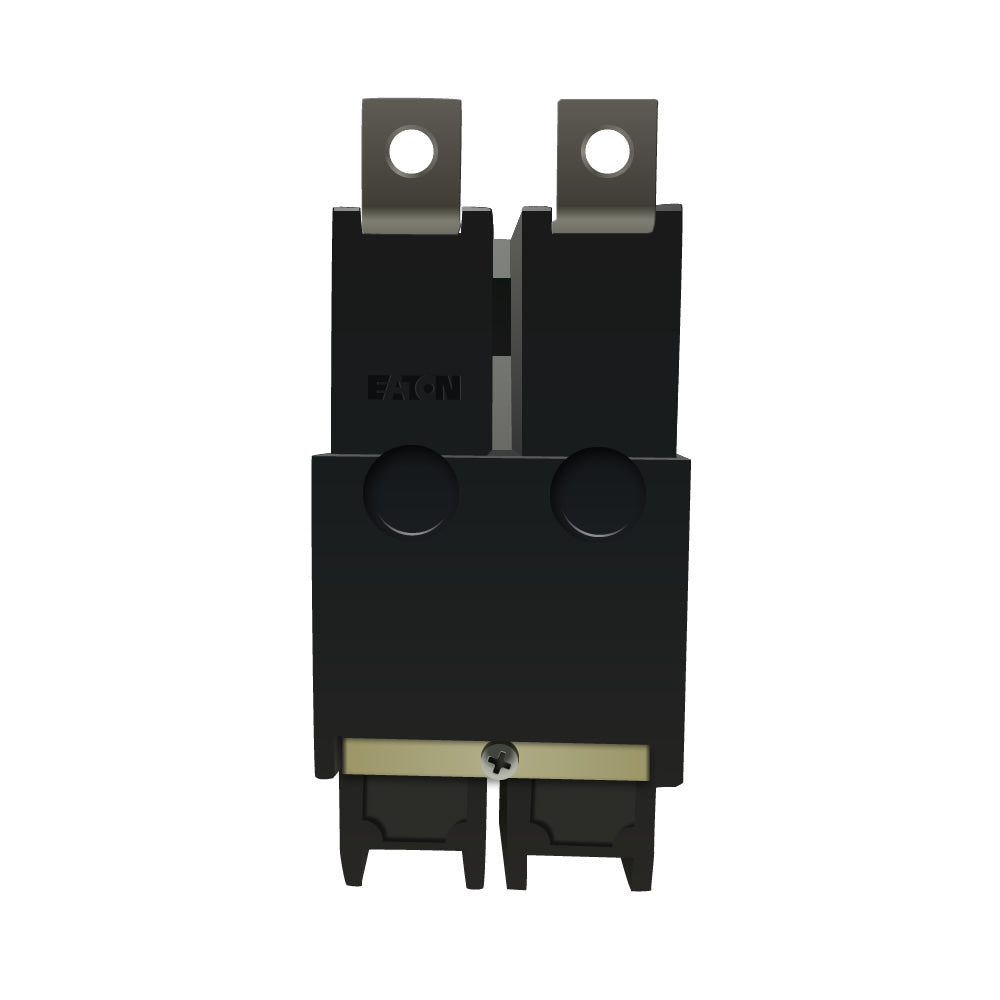

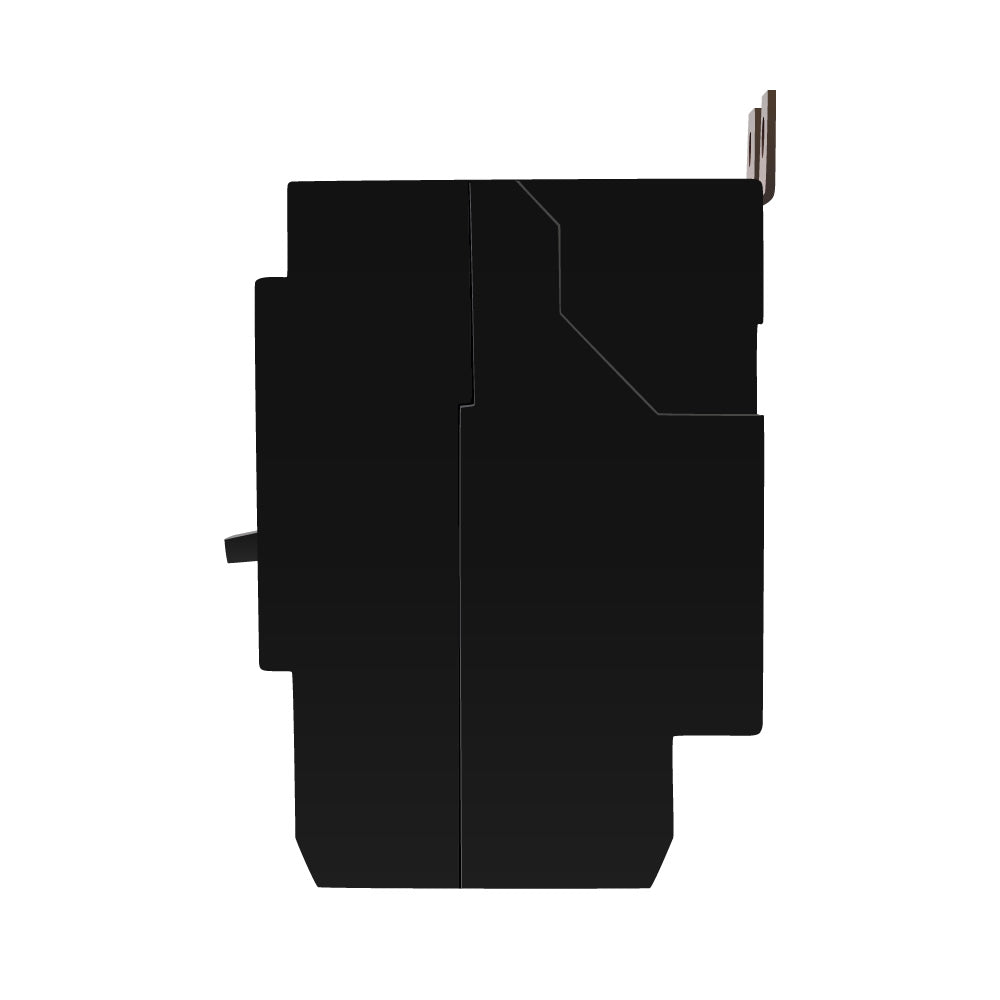

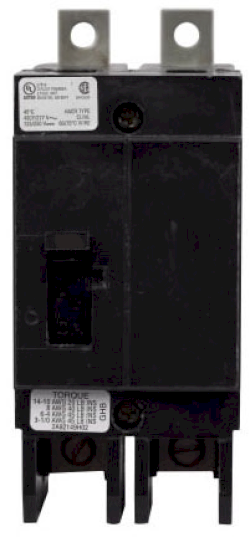

Eaton GHB2070 Circuit Breaker | 70A 2P 480V 14kA@480V Bolt-on GHB Series

Product Description:
The GHB2070 is a 70 amp, 2-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker features a thermal-magnetic trip unit and supports operation up to 480V. It is UL listed with an interrupt rating of 14kA@480V for consistent, high-performance protection in commercial and industrial panelboards.

Key Features:
✔ Part Number: GHB2070
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 70
✔ Poles: 2
✔ AIC Rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ Wire Size: 10 to 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ Certification: CSA Certified, UL Listed
✔ Standards: UL 489
✔ UPC: 786679172520
✔ GTIN: 00786679172520
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 1.15
✔ Panel Type: Eaton Powerline Panelboards
