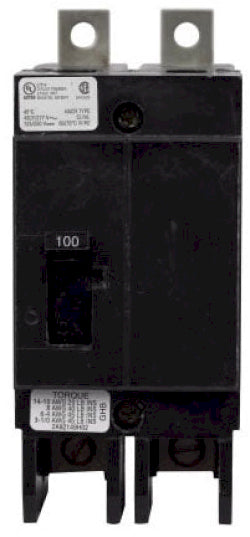

Eaton GHB2100 Circuit Breaker | 100A 2P 480V 14kA@480V Bolt-on GHB Series

Product Description:
The GHB2100 is a 100 amp, 2-pole molded case circuit breaker from Eaton's GHB Series, designed for reliable protection of branch and feeder circuits in commercial and industrial panelboards. It features a thermal-magnetic trip unit and a secure bolt-on connection for dependable performance. This breaker operates up to 480V and is UL listed with a 14kA interrupt rating for consistent overcurrent protection.

Key Features:
✔ Part Number: GHB2100
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 100
✔ Poles: 2
✔ AIC Rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ Wire Size: 10 to 1/0 AWG
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ Certification: CSA Certified, UL Listed
✔ Standards: UL 489
✔ UPC: 786679911242
✔ GTIN: 00786679911242
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 1.15
