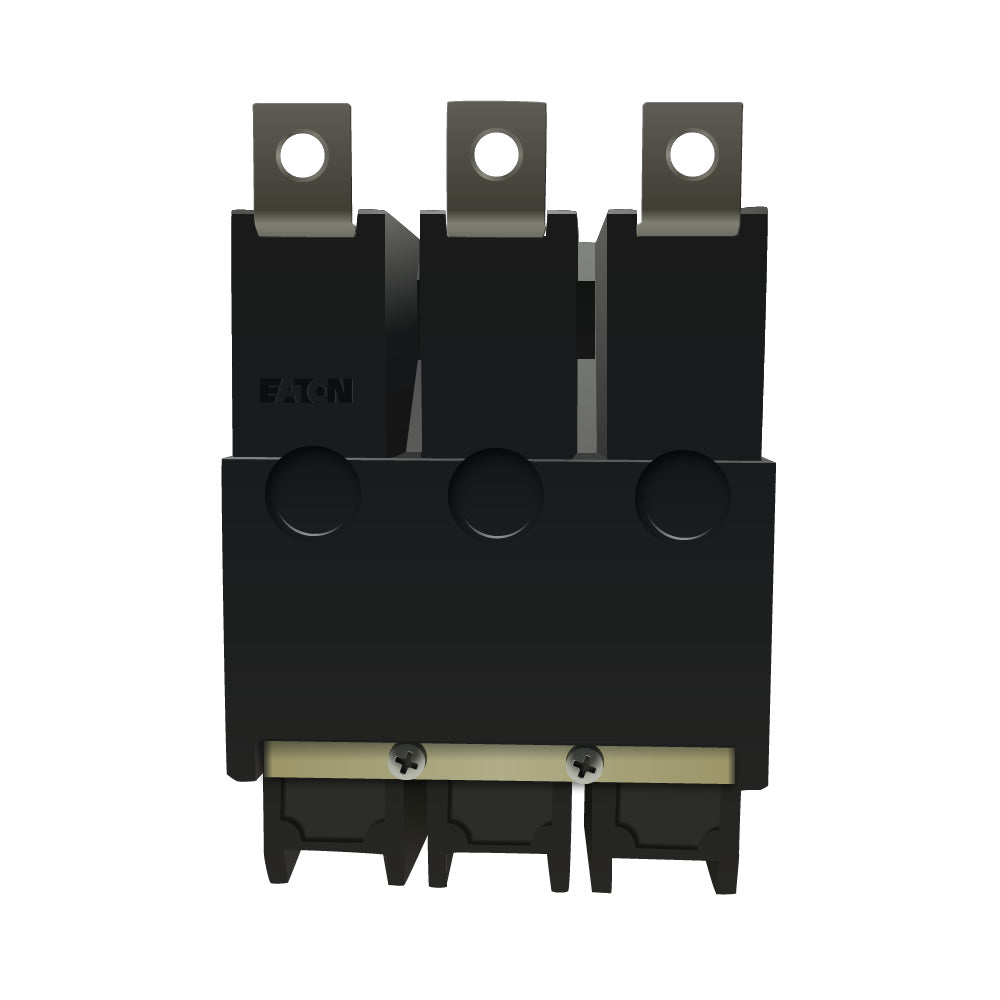

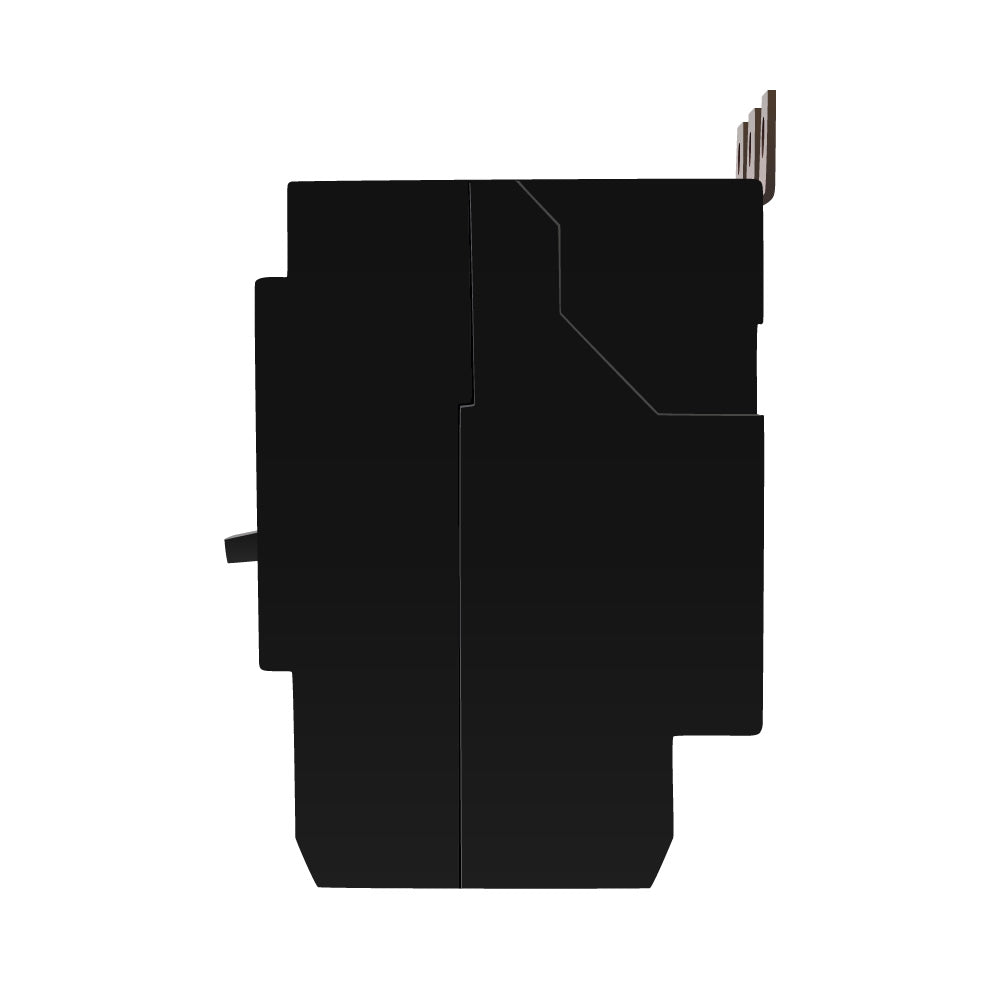

Cutler Hammer GHB3025 Circuit Breaker | 480V 25A 3P 14kA@480V Bolt-on GHB

Product Description:
The GHB3025 is a 25 amp, 3-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker features a thermal-magnetic trip unit and supports operation up to 480V. It is built for secure mounting in commercial and industrial panelboards, providing consistent, high-performance overcurrent protection.

Key Features:
✔ Part Number: GHB3025
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 25
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679172551
✔ GTIN: 00786679172551
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1.75
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: UL 489
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 10 to 1/0 AWG
