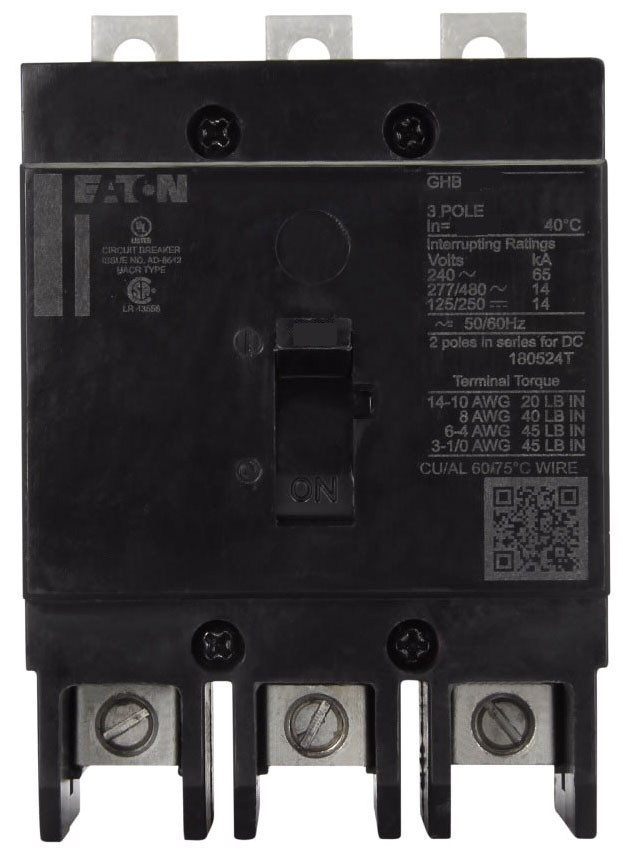

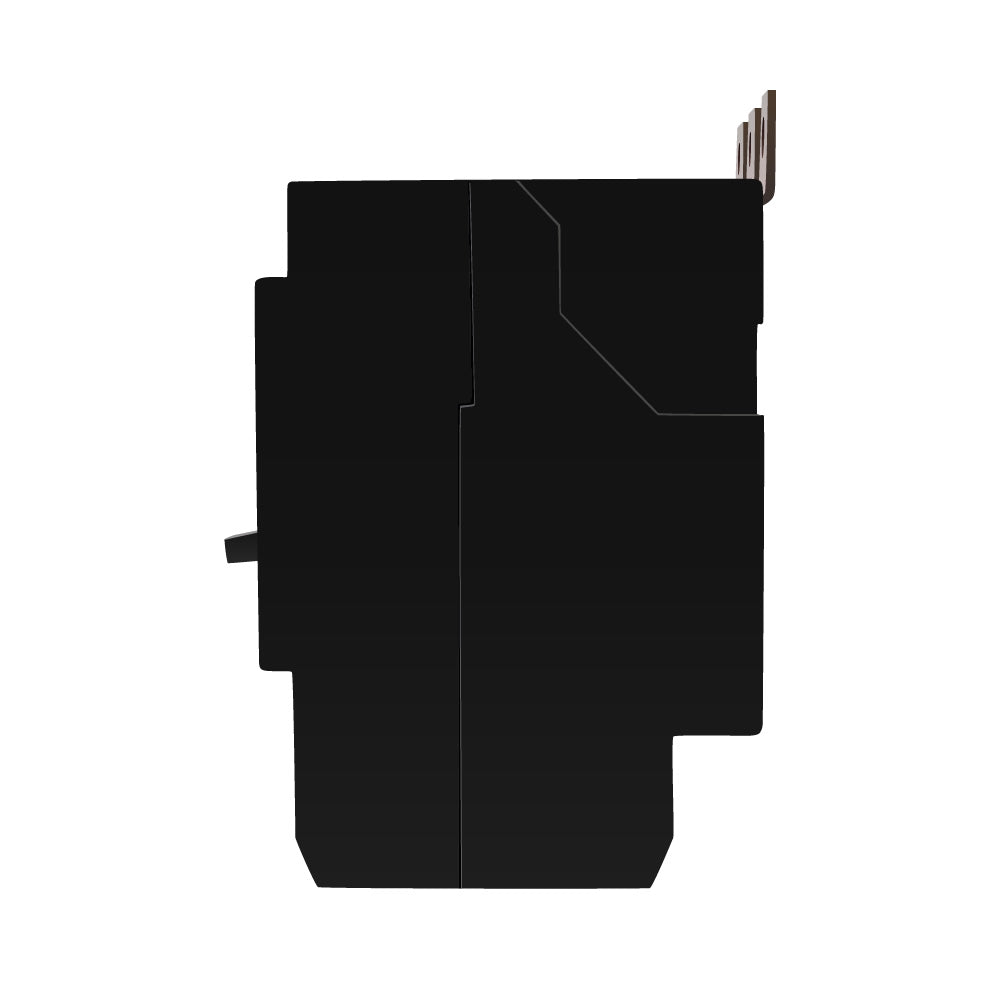

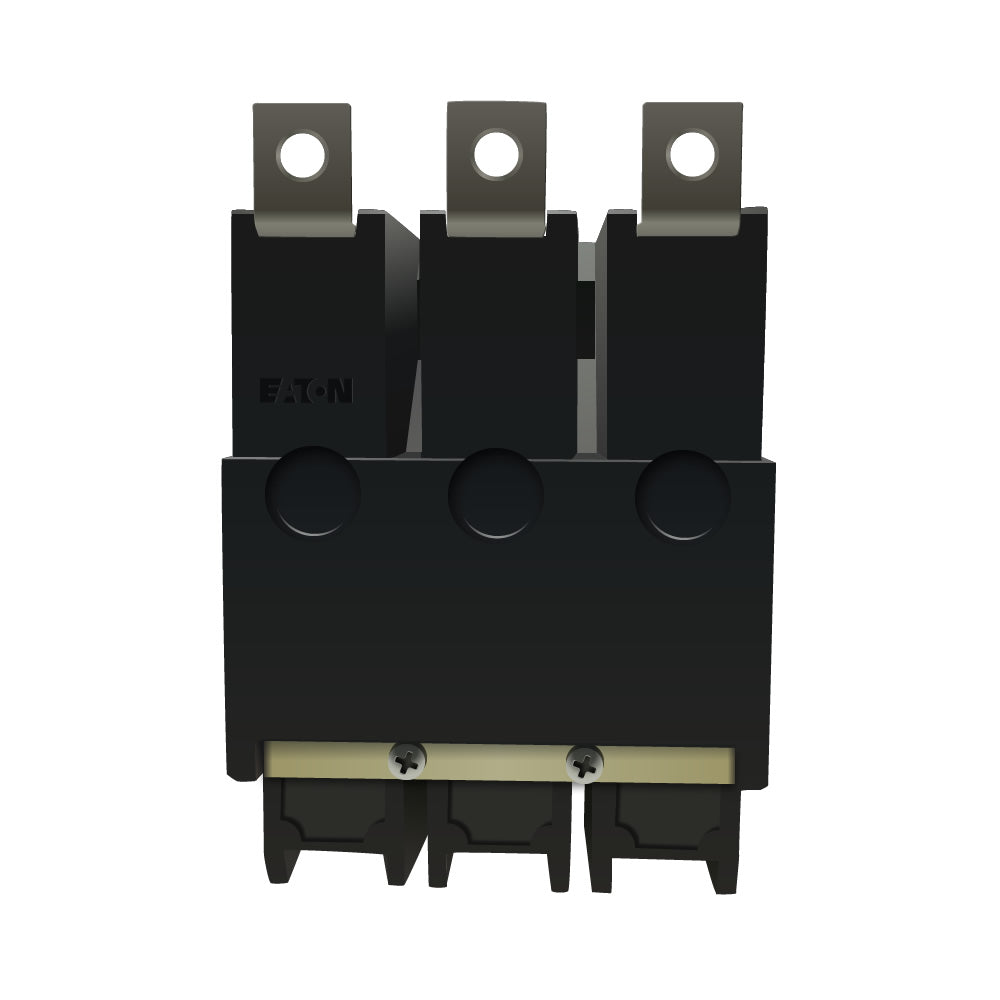

Eaton GHB3045 Circuit Breaker | 45A 3P 480V 14kA@480V Bolt-On GHB

Product Description:
The GHB3045 is a 45 amp, 3-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker features a thermal-magnetic trip unit and supports operation up to 480V. It provides consistent, high-performance protection for commercial and industrial panelboards.

Key Features:
✔ Part Number: GHB3045
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 45
✔ Poles: 3
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Frequency: 50/60 Hz
✔ UPC: 786679172643
✔ GTIN: 00786679172643
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1.7
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: UL 489
✔ Certification: CSA Certified, UL Listed
✔ Wire Size: 10 to 1/0 AWG
